Funktioner:
Certificate: ISO
Standard: MSS SP-95、SH/T 3419
Material: Carbon steel ASTM A 105 / Stainless steel
Thread: NPT / BSPT
W.pressure: Equal to same seamless pipe
Surface: Original / hot dip galvanized

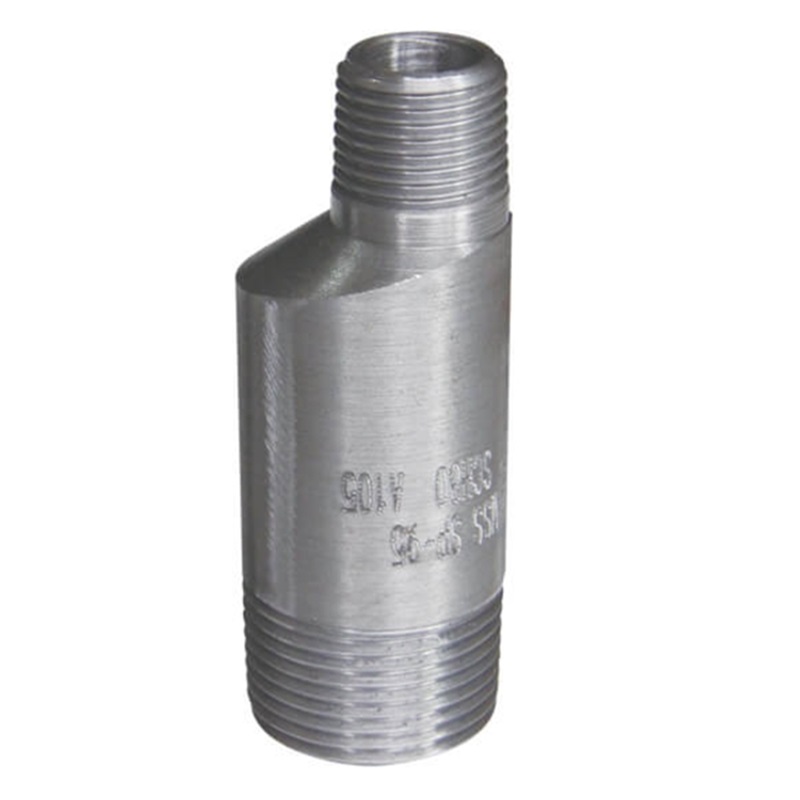

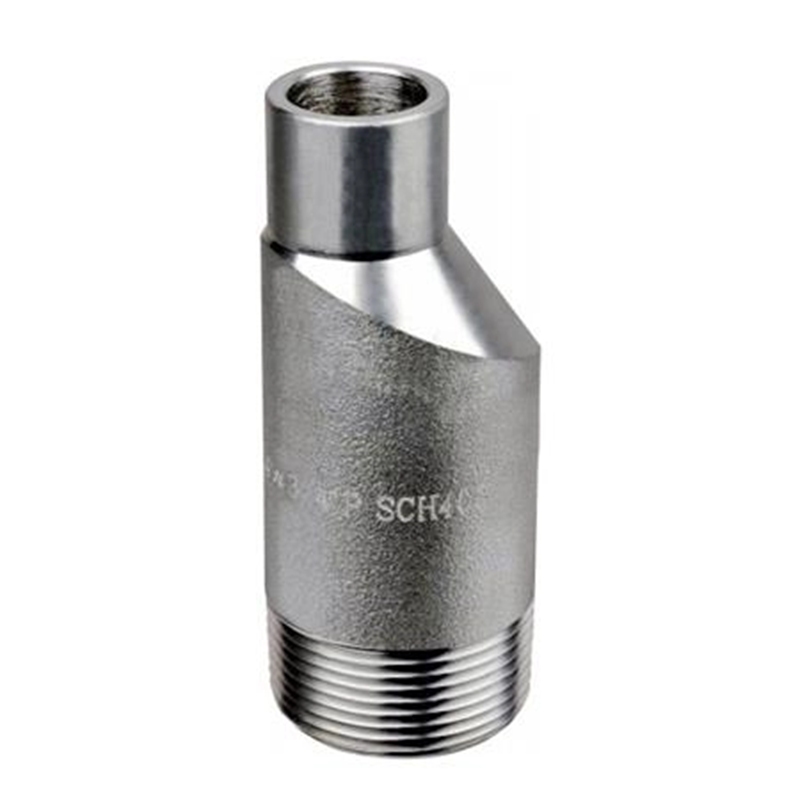

Eccentric swaged nipple is used to join two pipes of different size by thread at the different axis.

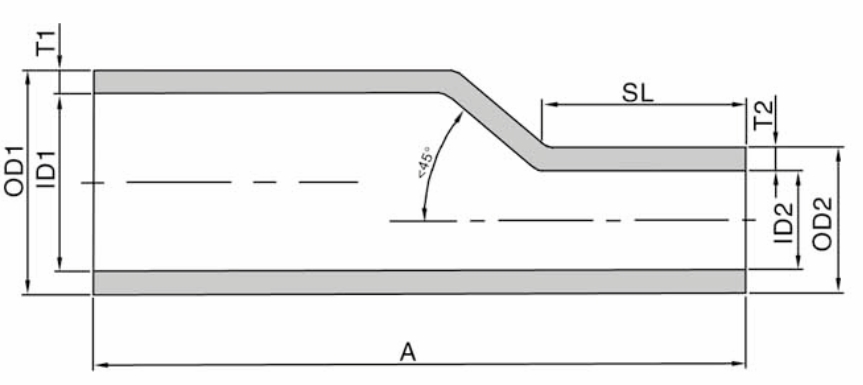

| Størrelse | OD at end | Length of small end | End to end | |
| NPS | DN | OD1 * OD2 | SL min | EN |
| 1/4” * 1/8” | 8 * 6 | 13.7 * 10.3 | 20 | 57 |
| 3/8” * 1/4” | 10 * 8 | 17.1 * 13.7 | 20 | 64 |
| 1/2” * 3/8” | 15 * 10 | 21.3 * 17.1 | 20 | 70 |
| 3/4” * 1/2” | 20 * 15 | 26.7 * 21.3 | 22 | 76 |
| 1” * 3/4” | 25 * 20 | 33.4 * 26.7 | 22 | 89 |
| 1-1/4” * 1” | 32 * 25 | 42.2 * 33.4 | 25 | 102 |
| 1-1/2” * 1-1/4” | 40 * 32 | 48.3 * 42.2 | 25 | 114 |
| 2” * 1-1/2” | 50 * 40 | 60.3 * 48.3 | 30 | 165 |
| 2-1/2” * 2” | 65 * 50 | 73.0 * 60.3 | 40 | 178 |
| 3” * 2-1/2” | 80 * 65 | 88.9 * 73.0 | 40 | 203 |
| 3-1/2” * 3” | 90 * 80 | 101.6 * 88.9 | 40 | 203 |
| 4” * 1-1/4” | 100 * 32 | 114.3 * 42.2 | 40 | 229 |
