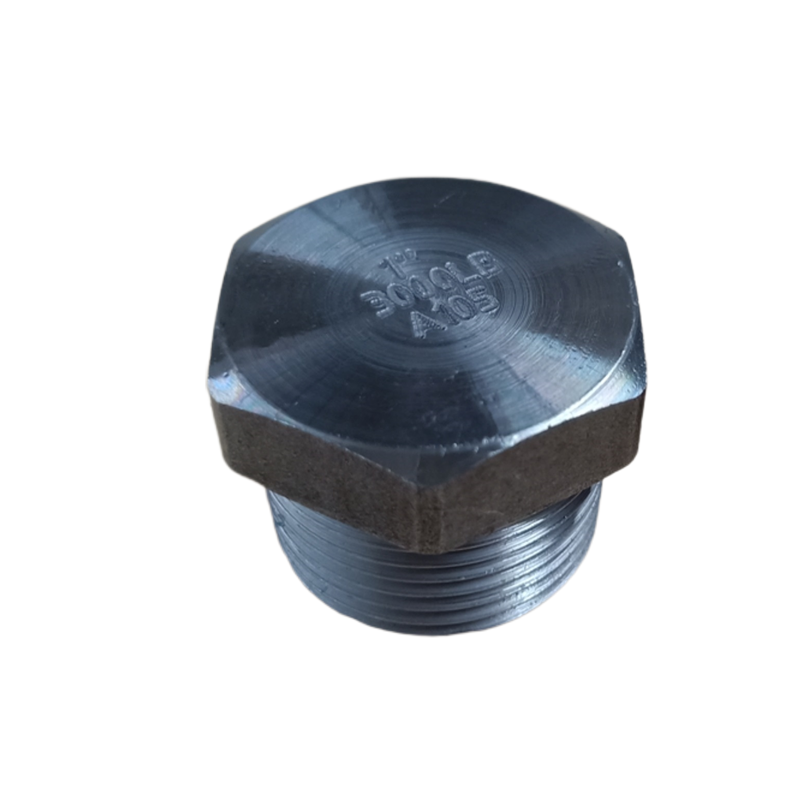

Forged hex head plug

Funktioner:

Certificate: ISO

American Standard: ASME B16.11

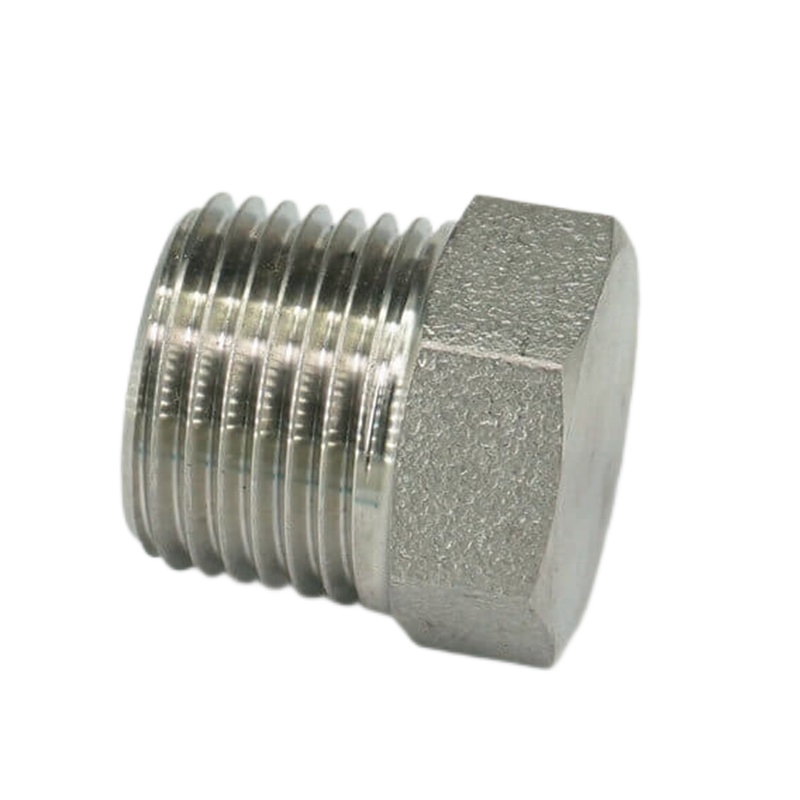

Material: Carbon steel ASTM A 105 / Stainless steel

Type: Forged fitting

Thread: NPT / BSPT

W.pressure: Class 3000

Surface: Original / hot dip galvanized

Chat nu

Produktdetaljer

Forged hex head plug is used to close the end of a piping system by male threaded in order to block the pipeline and form liquid or gas tight seal. It is with hex head and easy to be tightened with a wrench.

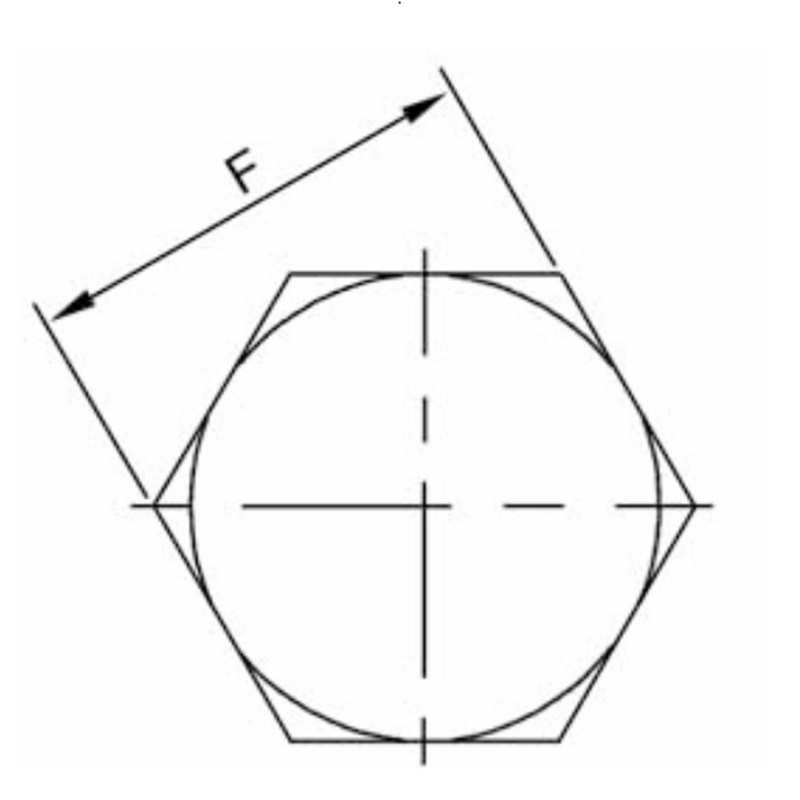

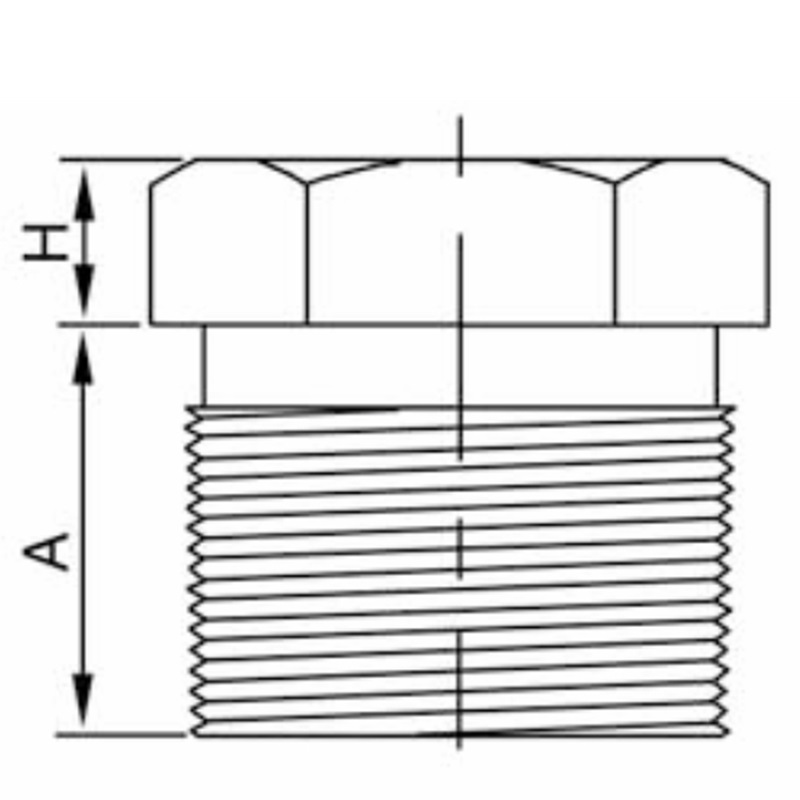

STØRRELSE		Length	Hex Height	Hex Width Flats
NPS	DN	A min	H min	F min
1/8”	6	10	6	11
1/4”	8	11	6	16
3/8”	10	13	8	18
1/2”	15	14	8	22
3/4”	20	16	10	27
1”	25	19	10	36
1-1/4”	32	21	14	46
1-1/2”	40	21	16	50
2"	50	22	18	65
2-1/2"	65	27	19	75
3"	80	28	21	90
4"	100	32	25	115
