Forged thread boss

Funktioner:

Certificate: ISO

American Standard: ASME B16.11

Material: Carbon steel ASTM A 105 / Stainless steel

Type: Forged fitting

Thread: NPT / BSPT

W.pressure: Class 3000 / 6000

Surface: Original / hot dip galvanized

Chat nu

Produktdetaljer

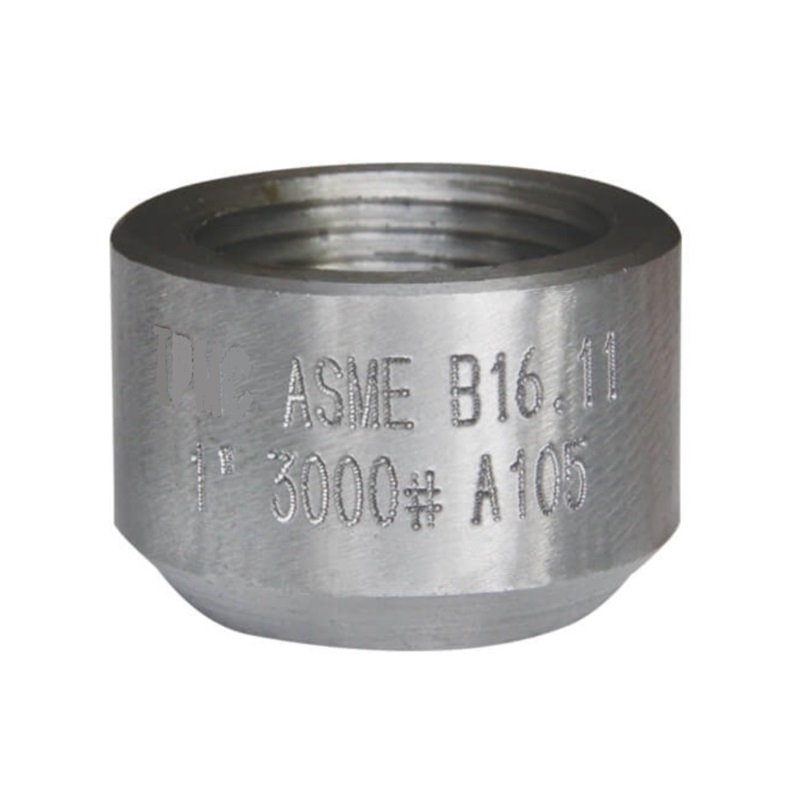

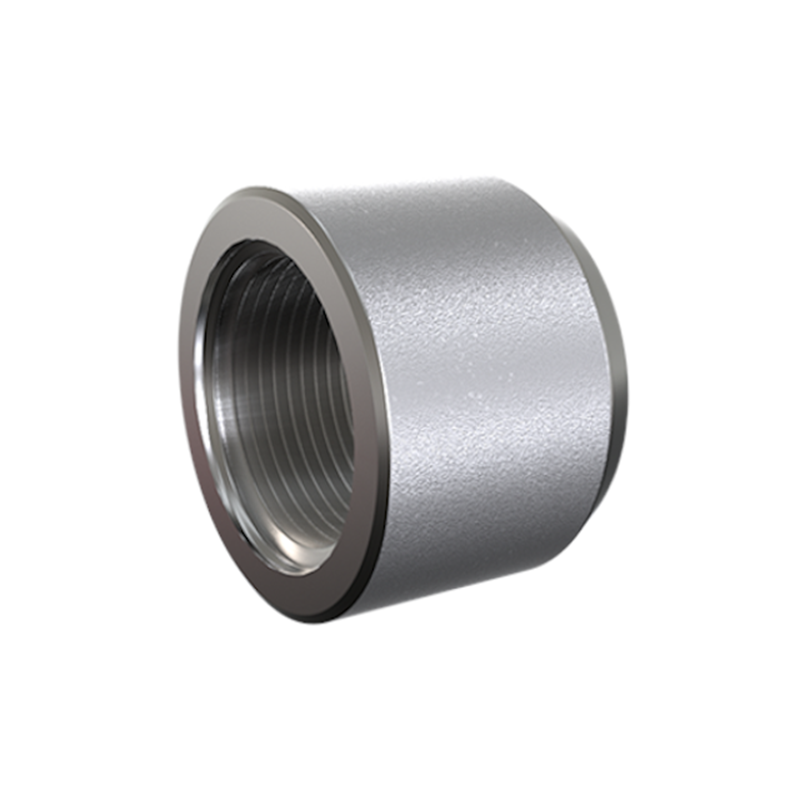

Forged thread boss is used to create branch connections in a piping system. The forged thread boss is designed to connect smaller pipes or nozzles to larger main pipes by threading.

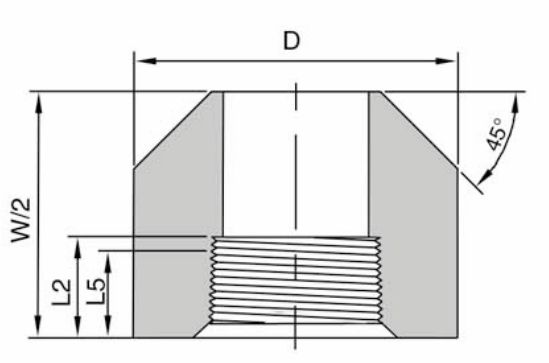

STØRRELSE		End to end I	Outside Dia. H		End Wall G min		Length of Thread
NPS	DN	3000 LB & 6000 LB	3000 LB	6000 LB	3000 LB	6000 LB	L5 min	L2 min
1/8”	6	32	16	22	4.8	–	6.4	6.7
1/4”	8	35	19	25	4.8	6.4	8.1	10.2
3/8”	10	38	22	32	4.8	6.4	9.1	10.4
1/2”	15	48	28	38	6.4	7.9	10.9	13.6
3/4”	20	51	35	44	6.4	7.9	12.7	13.9
1”	25	60	44	57	9.7	11.2	14.7	17.3
1-1/4”	32	67	57	64	9.7	11.2	17.0	18.0
1-1/2”	40	79	64	76	11.2	12.7	17.8	18.4
2"	50	86	76	92	12.7	15.7	19.0	19.2
2-1/2"	65	92	92	108	15.7	19.0	23.6	28.9
3"	80	108	108	127	19.0	22.4	25.9	30.5
4"	100	121	140	159	22.4	28.4	27.7	33.0
