Funktioner:
Certifikat: FM-godkendt / UL-listet
Size: 1/4” – 4” (DN 8 – DN 100)
Tryk: 2,5 Mpa / PN25
Dimensioner: DIN EN 10242
Materiale: Smidbart jern DIN EN 1562
Gevind: BSPP (ISO228) / BSPT (ISO7-1)
Overflade: Sort / El-galvaniseret / Varmgalvaniseret

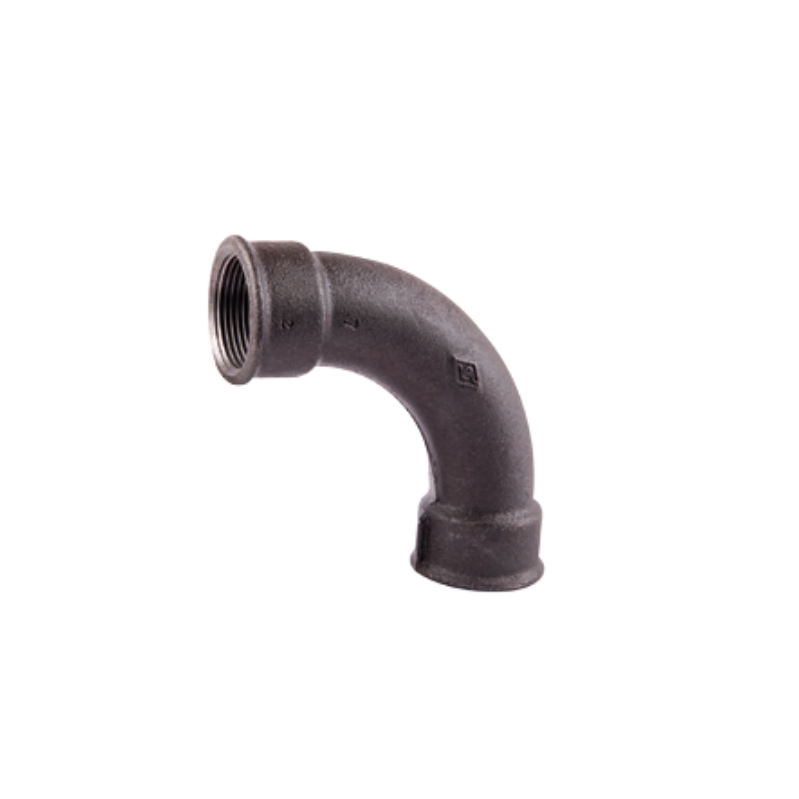

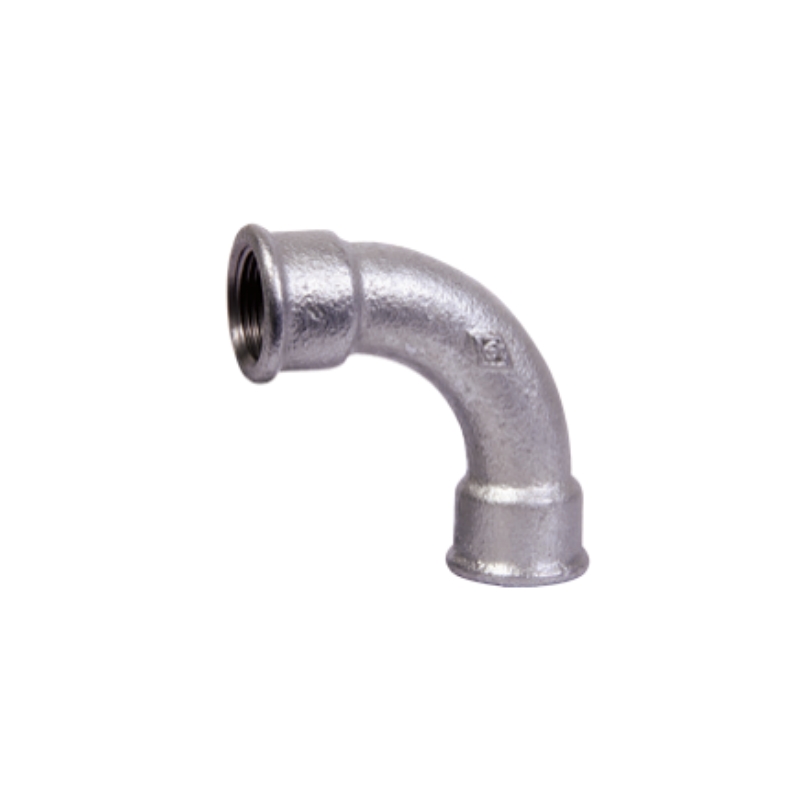

Malleable iron bend 90° is with two ends female threads and used to connect the pipes with male thread. It can change the pipeline direction by 90 degree.

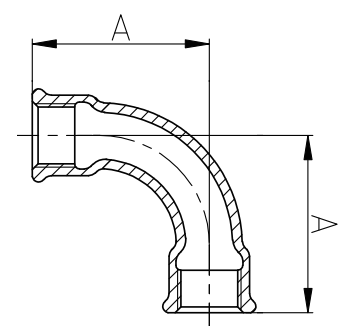

| Størrelse | tomme | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 |
| mm | 8 | 10 | 15 | 20 | 25 | 32 | |
| Dim.(mm) | EN | 40 | 48 | 55 | 69 | 85 | 105 |
| Størrelse | tomme | 11/2 | 2 | 21/2 | 3 | 4 | |
| mm | 40 | 50 | 65 | 80 | 100 | ||
| Dim. (mm) |
EN | 116 | 140 | 176 | 205 | 260 |
