Malleable iron bend BS EN

Smidbart jernbøjning BS EN

Funktioner:

Certifikat: FM-godkendt / UL-listet / BSI / LPCB / NSF 61

Size: DN10 – DN100

Tryk: 2,5 Mpa / PN25

Dimensioner: BS EN10242

Materiale: Smidbart jern BS EN1562

Gevind: BSPP (ISO228) / BSPT (ISO7-1)

Overflade: Sort / El-galvaniseret / Varmgalvaniseret

Chat nu

Produktdetaljer

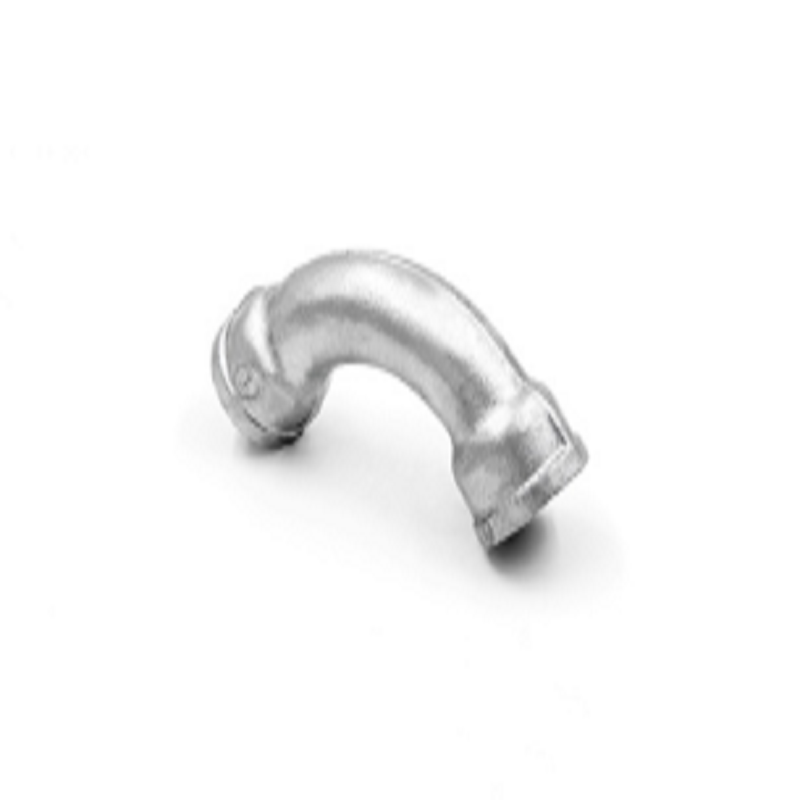

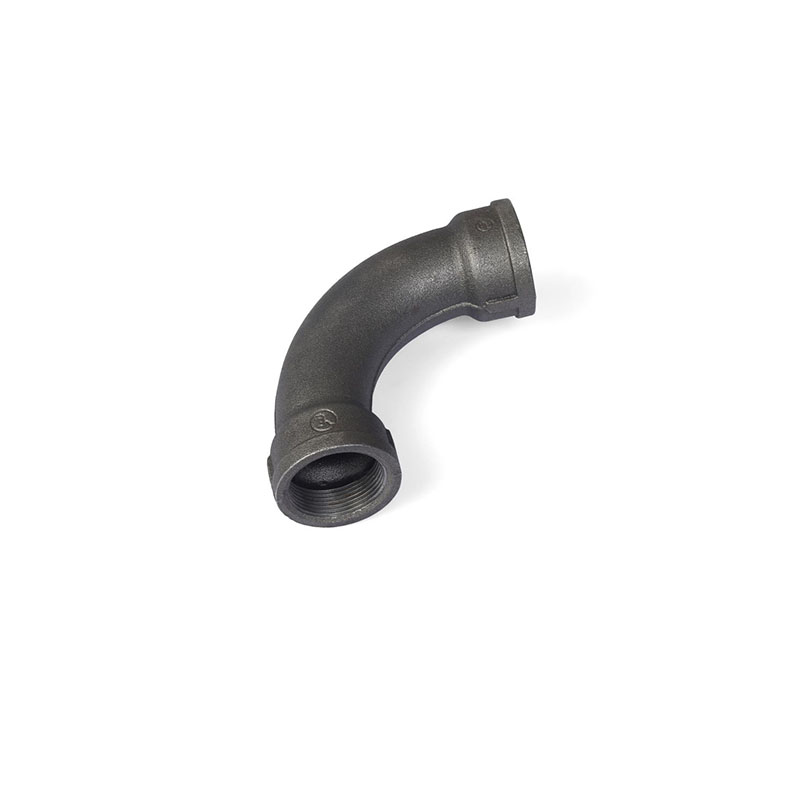

Malleable Iron Bend is similar to 90°elbow but with a large radius, so it does not abruptly turn the corner of pipeline. Two ends are female thread

STØRRELSE		A (MM)	PCS/CTN.
3/8”	DN10	48	400
1/2”	DN15	55	220
3/4”	DN20	69	120
1”	DN25	85	70
1 1/4”	DN32	105	40
1 1/2”	DN40	116	20
2”	DN50	140	12
2 1/2”	DN65	176	8
3”	DN80	205	6
4”	DN100	260	2
