Funktioner:

Function:Used to fix pipe directly on channel steel open surface, realizing unidirectional or bidirectional anti-seismic of multi-pipe system.

Materiale: Kulstofstål

Finish:Electro-galvanized,Pre-galvanized

Approvals :FM certification is available from 3/4″ to 12″

Maximum Temperature:343°C (650°F)

Ordering:Specify size,Finish.

Chat nu

Produktdetaljer

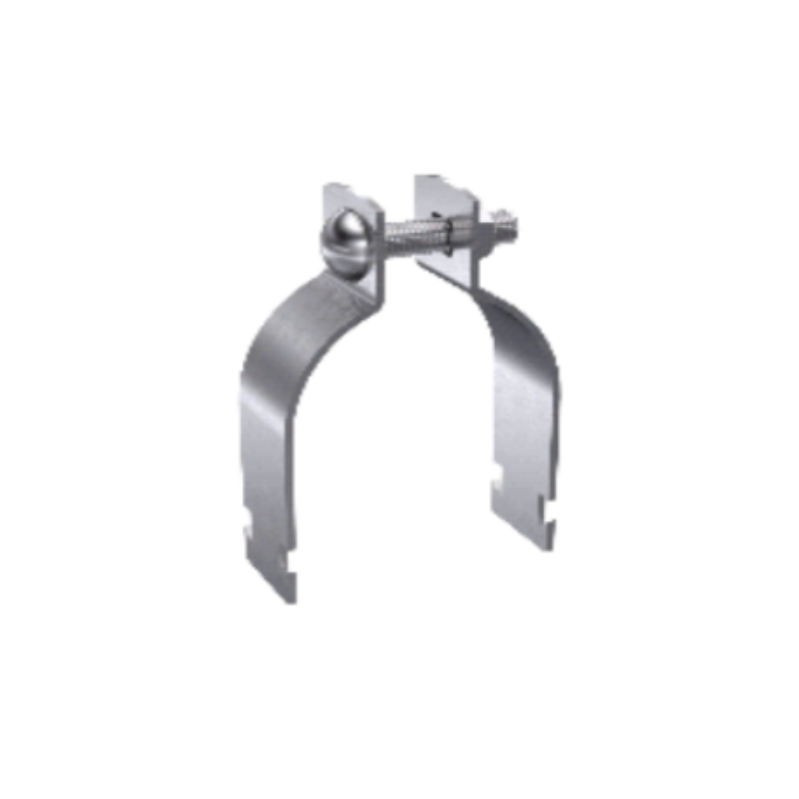

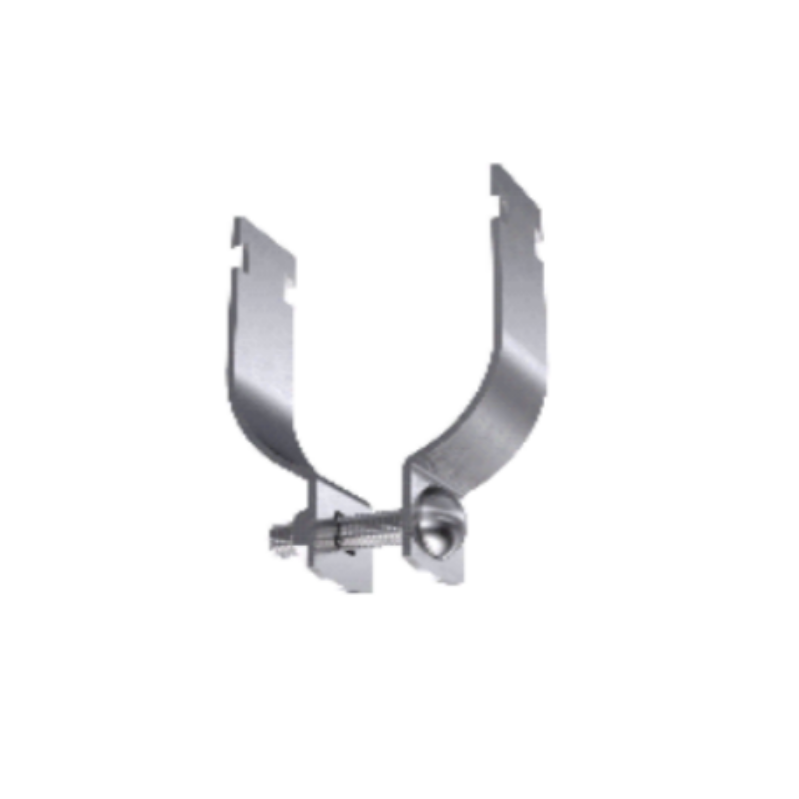

P-type rørbundt refers to a specialized configuration of pipes used in industrial applications, typically in the context of heat exchangers or complex piping systems. This bundle consists of a series of pipes arranged in a specific pattern, often in the shape of the letter “P,” where multiple parallel pipes are enclosed or bundled together for better efficiency in heat transfer, fluid movement, or other purposes.

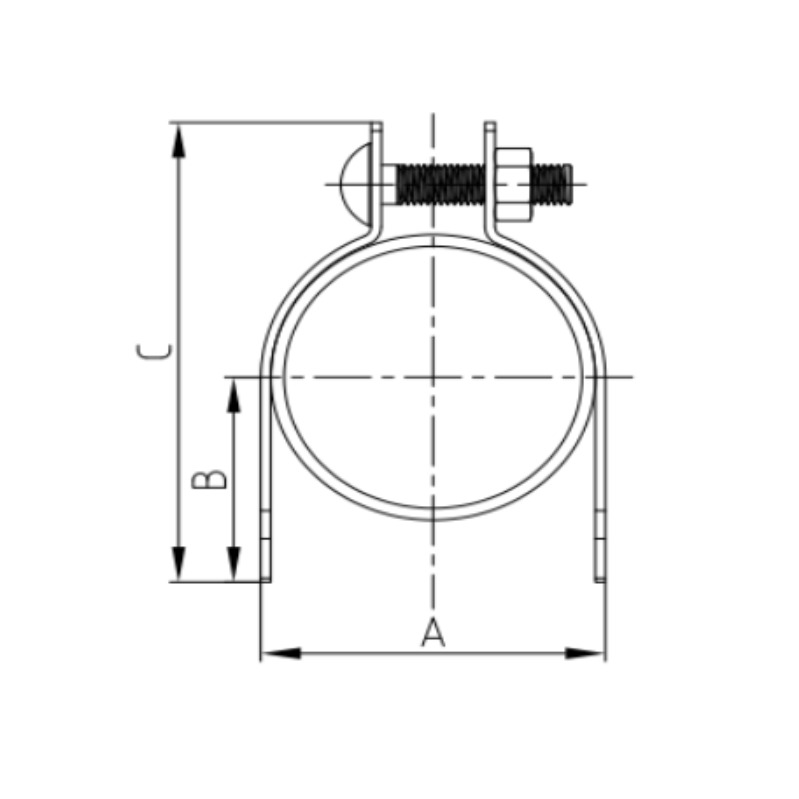

Størrelse	Specification of bolts and Size		EN	B	C	Max.Rec.Load
	mm	i	mm	mm	mm	Lbs	Kg	N
1/2″	M8	5/16″-18UNC	24.9	25.65	65	299	135	1334
3/4″	M8	5/16″-18UNC	30.3	28.35	71	299	135	1334
1″	M8	5/16″-18UNC	37	31.7	78.5	299	135	1334
1-1/4″	M8	5/16″-18UNC	45.8	36.1	87.5	299	135	1334
1-1/2″	M8	5/16″-18UNC	52.8	39.15	94	299	135	1334
2″	M8	5/16″-18UNC	64.8	45.15	106.5	299	135	1334
2-1/2″	M10	3/8″-16UNC	77.5	51.5	117.5	339	153	1512
3″	M10	3/8″-16UNC	93.4	59.45	134	419	189	1868
3-1/2″	M10	3/8″-16UNC	106.1	65.8	147	499	225	2224
4″	M10	3/8″-16UNC	118.8	72.15	160	599	270	2668
5″	M10	3/8″-16UNC	146.7	85.65	190.5	799	360	3558
6″	M10	3/8″-16UNC	173.7	99.15	218	1059	477	4714
8″	M10	3/8″-16UNC	228.1	124.55	271	1619	729	7205
10″	M10	3/8″-16UNC	282	151.5	326	2339	1053	10408
12″	M10	3/8″-16UNC	332.9	176.95	377.5	3159	1422	14055
