Funktioner:
Certifikat: FM-godkendt / UL-listet / LPCB
Size: 2 1/2”*2” – 8”*6” (DN 65*50 – DN 200*150)
Tryk: 300PSI/500PSI
Materiale: ASTM A536, GRADE 65-45-12, QT450-10
Gevind: ASME B1.20.1, ISO 7-1, GB 7306
Rille: AWWA C606, ISO 6182-12
Overflade: P: Malet E: Galvaniseret B: Sort S: Epoxy G: Varmgalvaniseret

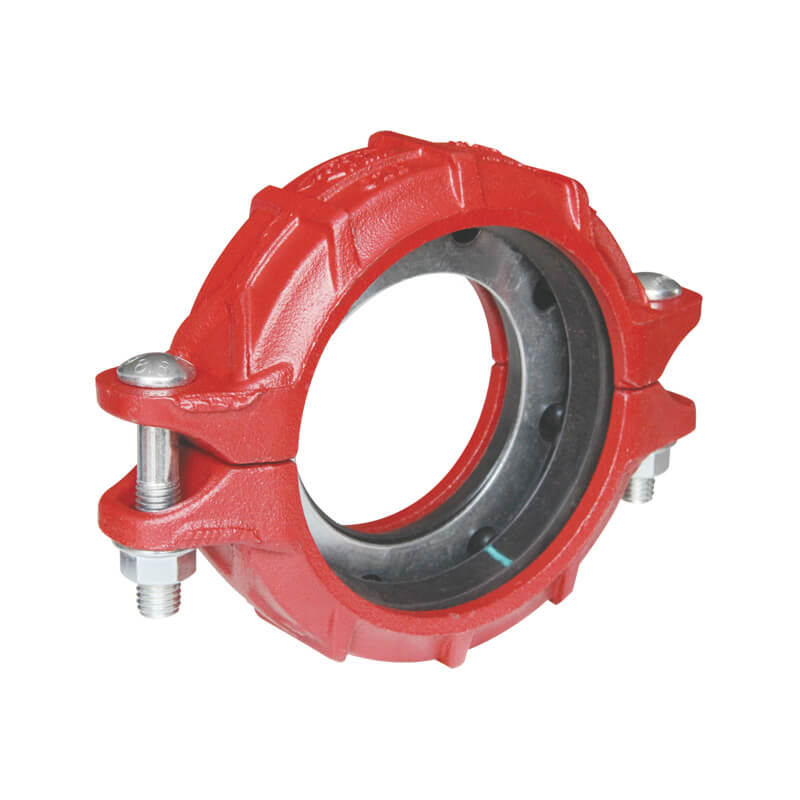

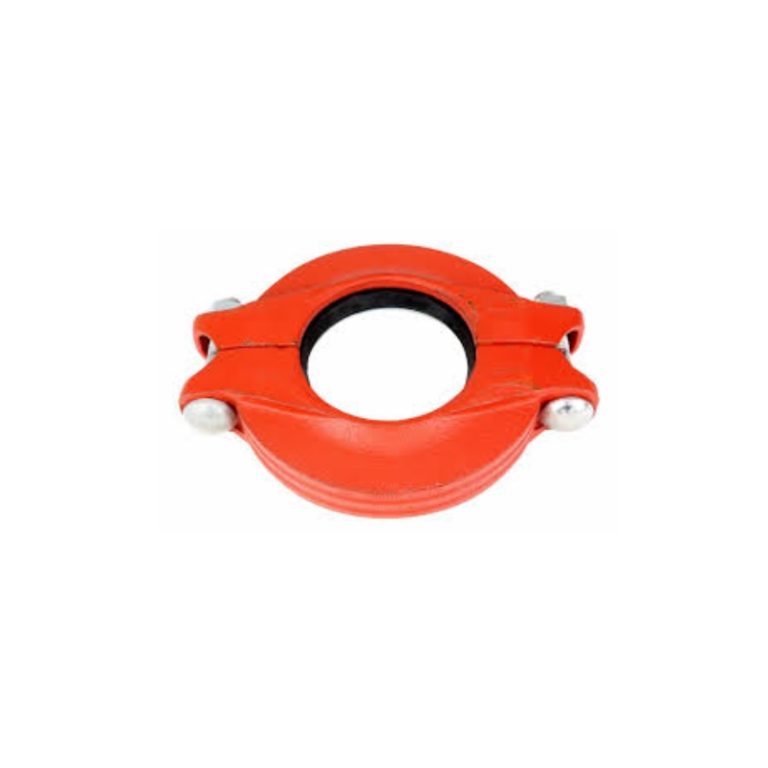

Reducing grooved coupling allows for controlled linear and angular movement, and it is used to join two pipes in different diameter.

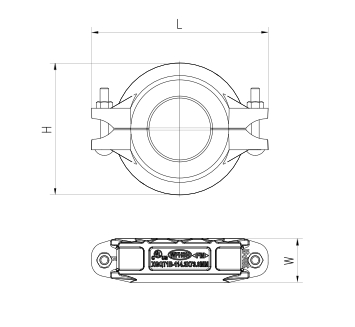

| STØRRELSE | OD STØRRELSE | L (MM) | H (MM) | B (MM) | |
| 2 1/2”X2” | DN65XDN50 | 73X60 | 143 | 102 | 45 |
| 2 1/2”X2” | DN65XDN50 | 76X60 | 143 | 102 | 45 |
| 3”X2” | DN80XDN50 | 89X60 | 163 | 118 | 47 |
| 3”X2 1/2” | DN80XDN65 | 89X73 | 163 | 118 | 47 |
| 4”X2” | DN100XDN50 | 114X60 | 200 | 150 | 50 |
| 4”X2 1/2” | DN100XDN65 | 114X73 | 200 | 150 | 50 |
| 4”X2 1/2” | DN100XDN65 | 114X76 | 200 | 150 | 50 |
| 4”X3” | DN100XDN80 | 114X89 | 200 | 150 | 50 |
| 6”X4” | DN150XDN100 | 165X114 | 270 | 200 | 51 |
| 6”X3” | DN150XDN80 | 168X89 | 270 | 200 | 51 |
| 6”X4” | DN150XDN100 | 168X114 | 270 | 200 | 51 |
| 8”X6” | DN200XDN150 | 219X165 | 335 | 260 | 63 |
| 8”X6” | DN200XDN150 | 219X168 | 335 | 260 | 63 |
