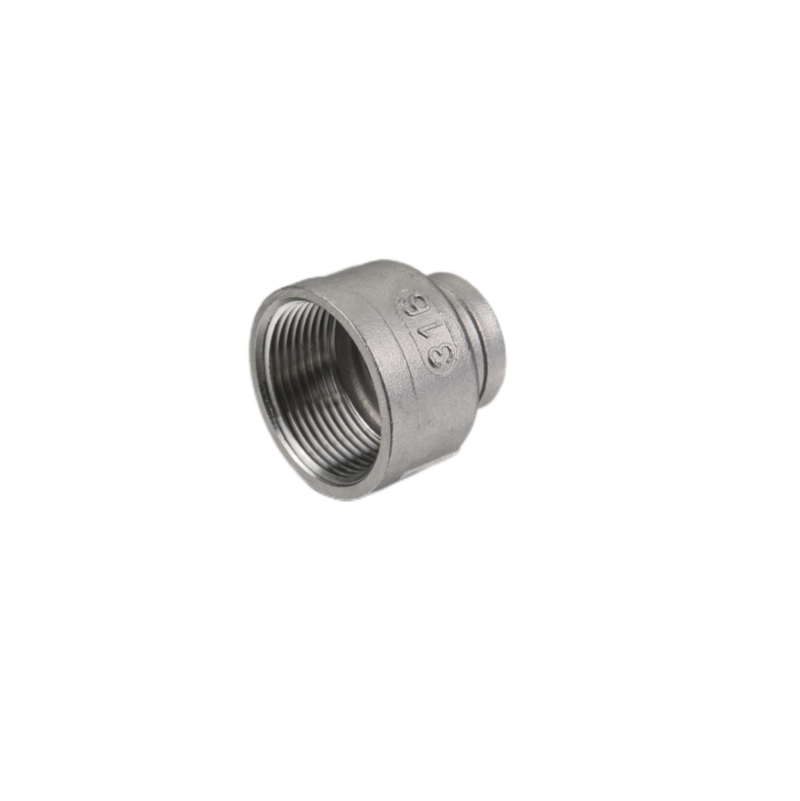

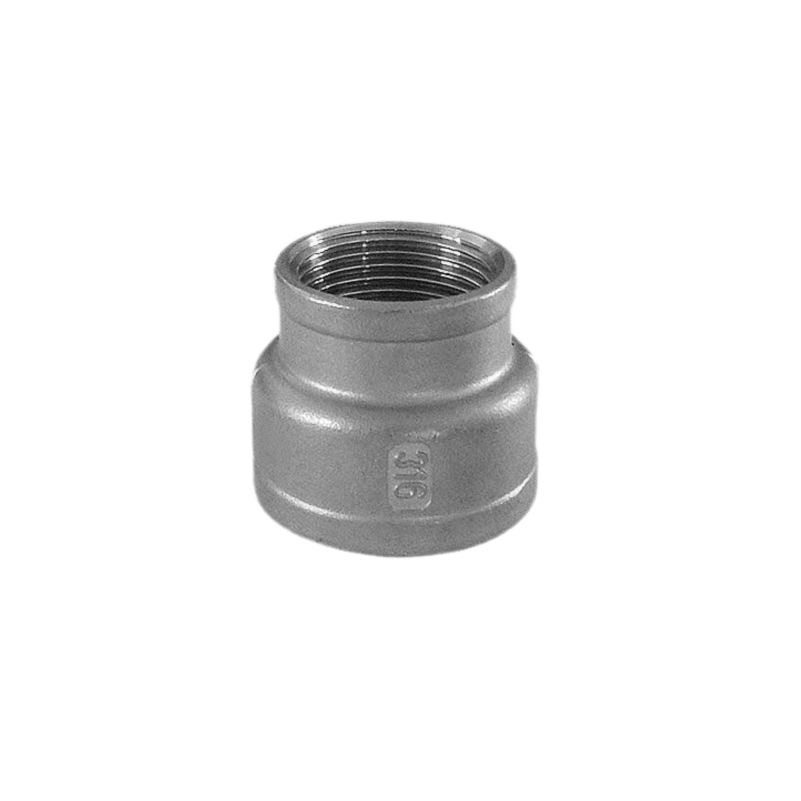

Reduzierende Steckdelikte aus rostfreiem Stahl

Reduzierende Stahl mit rostfreiem Stahlfaden

Merkmale:

Größe: DN8 × 6 -DN100 × 80 (1 {{url_placeholder_0}})

Druck: Klasse 150 / Klasse 300 （10BAR-20BAR)

Dimensionen: ISO 4144 {{url_placeholder_0}} a733

Material: ASTM351-CF8 & CF8M, 304 & 304L & 316 & 316L & 201

Threaded: ISO7-1/ISO228/DIN2999/BS21/ASME B1.20.1

Technologie: Präzisionsinvestitionskaste, Pipes Sch40 und Sch80

Chatten Sie jetzt

Produktdetails

Reduzierende Suchdelie Siehe Pipe Socket （Reduzierer） mit Gewinnen.

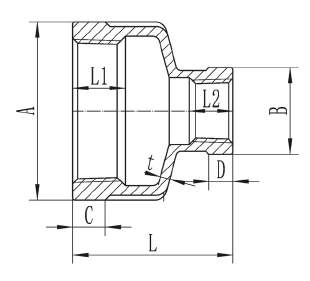

Zoll	Dn	L	A	B	C	D	L2	L1	T
1 {{url_placeholder_0}}	8 × 6	28	20	15.5	6	6	7.5	8.7	3
3 {{url_placeholder_0}}	10 × 6	41	25	15.5	7	6	9	10.5	3.8
3 {{url_placeholder_0}}	10 × 8	41	25	19.8	7.5	6.5	10.5	13	3.8
1 {{url_placeholder_0}}	15 × 6	44	30	15.5	7.5	6	7.5	10.5	2.5
1 {{url_placeholder_0}}	15 × 8	44	30	20	7.5	6	12	10.5	2.5
1 {{url_placeholder_0}}	15 × 10	44.4	30	25.5	7.5	6.5	12	10.5	2.5
3 {{url_placeholder_0}}	20 × 6	45	36	15.2	8.5	6	9	10.5	2.2
3 {{url_placeholder_0}}	20 × 8	45	36	20	9	6.5	9.5	9	2.2
3 {{url_placeholder_0}}	20 × 10	44.5	36	24.7	7.5	7.5	9.5	9.2	2.2
3 {{url_placeholder_0}}	20 × 15	44.5	35	29.5	9	7.5	12.5	8.5	2.2
1 ″ × 1 {{url_placeholder_0}}	25 × 6	50	45	15.5	10	6.5	8.5	13	2.7
1 ″ × 1 {{url_placeholder_0}}	25 × 8	49.5	44.7	19.8	9.5	6.5	11.5	14	2.7
1 ″ × 3 {{url_placeholder_0}}	25 × 10	50	45	25.5	10	7.5	12.5	13	2.7
1 ″ × 1 {{url_placeholder_0}}	25 × 15	50	45	30	10	8	13	12.5	2.7
1 ″ × 3 {{url_placeholder_0}}	25 × 20	50	44.6	35.5	9.5	10	14	14	2.7
11 {{url_placeholder_0}}	32 × 6	50.5	53	15.5	11.3	6	10	16.5	3.2
11 {{url_placeholder_0}}	32 × 8	50.2	52.5	20	12	6.5	15.5	15.5	3.2
11 {{url_placeholder_0}}	32 × 10	49.6	52.7	25	11.5	7	14	16.2	3.2
11 {{url_placeholder_0}}	32 × 15	49	52.3	30	10.5	8.2	14.5	15.5	3.2
11 {{url_placeholder_0}}	32 × 20	49	52.4	35.5	10.5	9.5	16	16.5	3.2
11 {{url_placeholder_0}}	32 × 25	49.3	52.5	44.5	10.5	11	20	16.5	3.2
11 {{url_placeholder_0}}	40 × 8	57.3	59.7	20	11.5	5.4	11.5	17	2.7
11 {{url_placeholder_0}}	40 × 10	57	59.7	24.8	12	7.7	14	17.5	2.5
11 {{url_placeholder_0}}	40 × 15	57	60	30	12.5	9	14.5	18	3
11 {{url_placeholder_0}}	40 × 20	57	60	36	12	9.5	14.5	17.5	3
11 {{url_placeholder_0}}	40 × 25	57	59.5	44.2	11.5	9.5	16	18	2.7
11 {{url_placeholder_0}}	40 × 32	57	60	53	11.5	10.5	15.7	17	2.8
2 ″ × 1 {{url_placeholder_0}}	50 × 6	67	73.4	15.5	12.5	6	10	18	3.3
2 ″ × 1 {{url_placeholder_0}}	50 × 8	67	72.9	20	12.5	5.5	11.7	18.5	3.3
2 ″ × 3 {{url_placeholder_0}}	50 × 10	66	73.5	25	12.5	7.5	13	18.5	3.3
2 ″ × 1 {{url_placeholder_0}}	50 × 15	66	73.5	30	12.5	8.3	14.7	19.5	3.3
2 ″ × 3 {{url_placeholder_0}}	50 × 20	65.7	72.5	35.4	12.5	9.3	15	19.5	3.3
2 "× 1"	50 × 25	66	73.2	44	12.5	10.5	17.5	18	3.3
2 ″ × 11 {{url_placeholder_0}}	50 × 32	66	73	53	12.5	10	15.8	18	3.3
2 ″ × 11 {{url_placeholder_0}}	50 × 40	65.5	73	60	12.5	11.2	15.9	18.5	3.3
21 {{url_placeholder_0}}	65 × 20	75.5	89	36.5	13.7	8.2	17.9	22.9	3.7
21 {{url_placeholder_0}}	65 × 25	75	89	44.7	13.4	10	17.7	22.8	3.7
21 {{url_placeholder_0}}	65 × 32	75	89	52.6	12.3	9	20	25.5	3.2
21 {{url_placeholder_0}}	65 × 40	75	89.5	60	14	12	23	26	4
21 {{url_placeholder_0}}	65 × 50	73.7	89.5	73	14	12.2	24.6	22.7	3.8
3 ″ × 3 {{url_placeholder_0}}	80 × 20	83	109	35.5	13.9	10	20.5	27.5	4.5
3 "× 1"	80 × 25	83.7	108.5	45	14.4	10	20.3	27.5	4.4
3 ″ × 11 {{url_placeholder_0}}	80 × 32	82.6	108.5	53	14.1	10.6	23.5	28	5.4
3 ″ × 11 {{url_placeholder_0}}	80 × 40	82.5	108.5	59.6	12.8	9.8	23.8	28	5.5
3 "× 2"	80 × 50	79	108.5	74.1	13.9	11.4	22.9	31	4.7
3 ″ × 21 {{url_placeholder_0}}	80 × 65	93.3	109.3	89.7	14.6	13.8	26.8	26.3	4.7
4 "× 1"	100 × 25	95.3	137.5	44.6	15.7	10	19.1	28	6
4 ″ × 11 {{url_placeholder_0}}	100 × 32	95.5	136.8	53	15.5	10.5	20.5	28	6
4 ″ × 11 {{url_placeholder_0}}	100 × 40	95.5	137.5	60.3	16.3	12.2	26.6	29.2	6
4 "× 2"	100 × 50	111.5	137.5	73.5	16.5	16.5	24	28	6
4 ″ × 21 {{url_placeholder_0}}	100 × 65	95	137.5	89.7	15.2	14.1	28.7	29	6
4 "× 3"	100 × 80	96.8	136.4	108.7	15.2	16.7	34.5	31	6.4
