特徴：
Certificate: FM Approved / UL 一覧ed
サイズ: 1/8” – 4” (DN 6 – DN 100)
圧力：Class150
Dimensions: ANSI B16.3
材料：順応性鉄ASTM A197
Threaded: NPT ASME B1.20.1
表面：ブラック /電気亜鉛めっき /ホットディップ亜鉛めっき

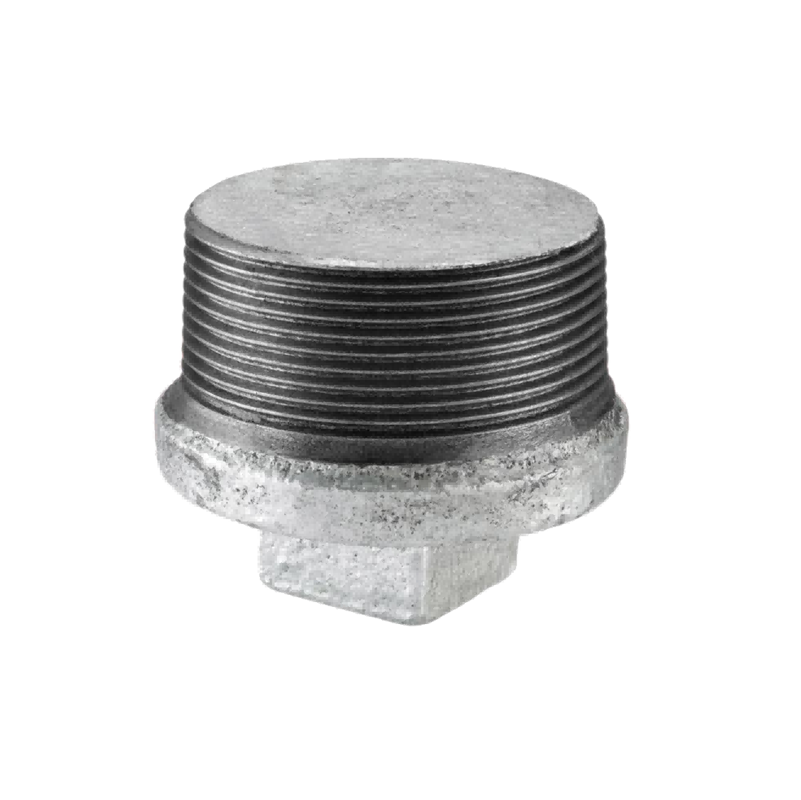

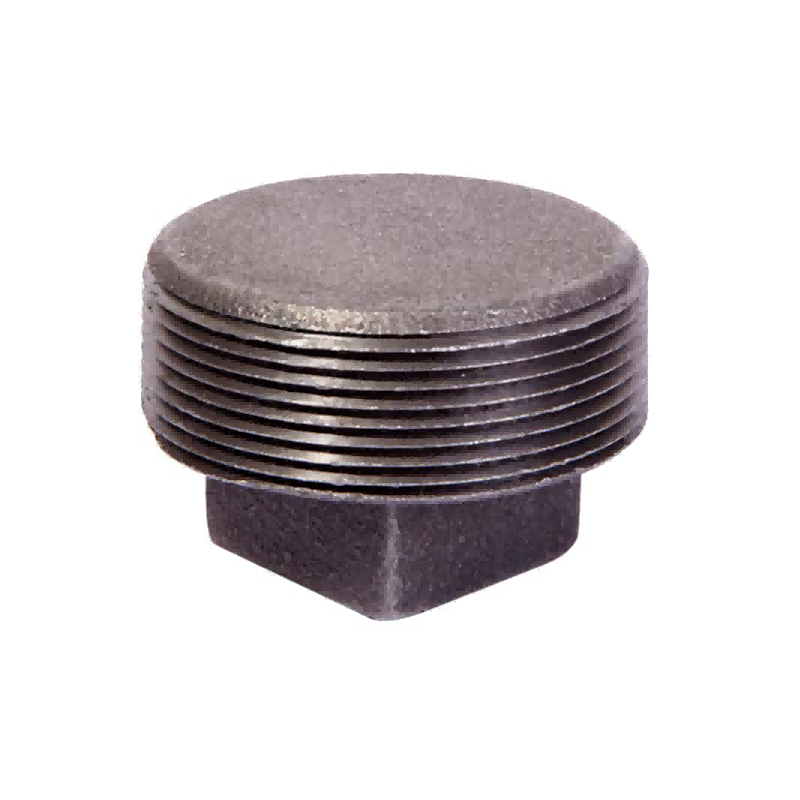

Malleable iron solID plug has male thread on one sIDe. It is used to close the end of the pipe.
| サイズ | A（mm） | |
| 1/8″ | DN6 | 15.5 |
| 1/4” | DN8 | 18.3 |
| 3/8” | DN10 | 20.1 |
| 1/2” | DN15 | 23.9 |
| 3/4” | DN20 | 27.2 |
| 1” | DN25 | 31.8 |
| 1 1/4” | DN32 | 34.5 |
| 1 1/2” | DN40 | 36.9 |
| 2” | DN50 | 39.7 |
| 2 1/2” | DN65 | 46 |
| 3” | DN80 | 49 |
| 4” | DN100 | 64.5 |
FluID tech group is the first company in northern China that specializes in the field of fire protection.
