특징:
Certificate: ISO
American Standard: ASME B16.11
Material: Carbon steel ASTM A 105 / Stainless steel
Type: Forged fitting
Thread: NPT / BSPT
W.pressure: Class 3000
Surface: Original / hot dip galvanized

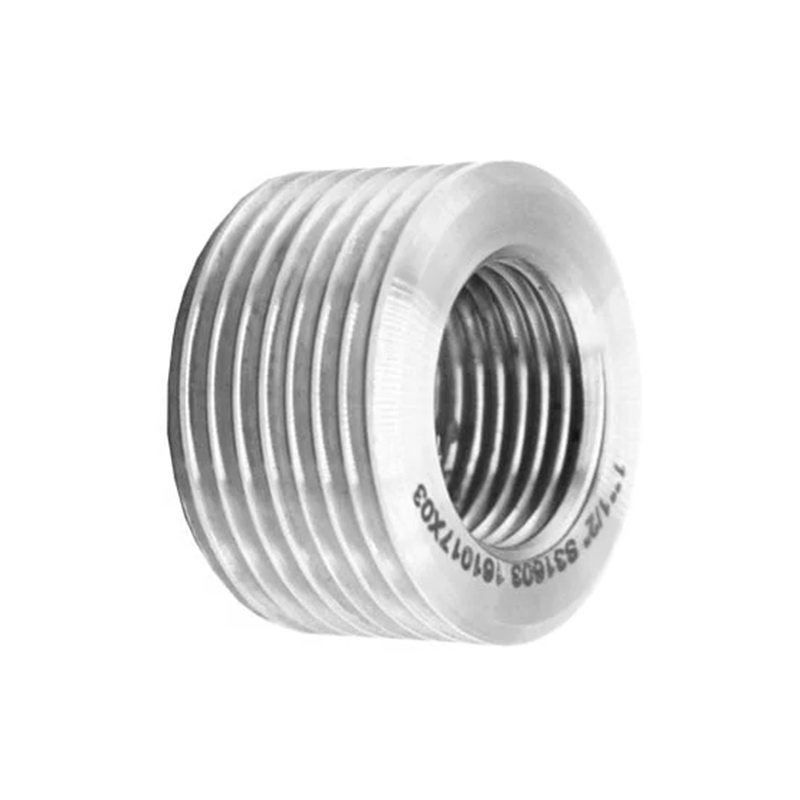

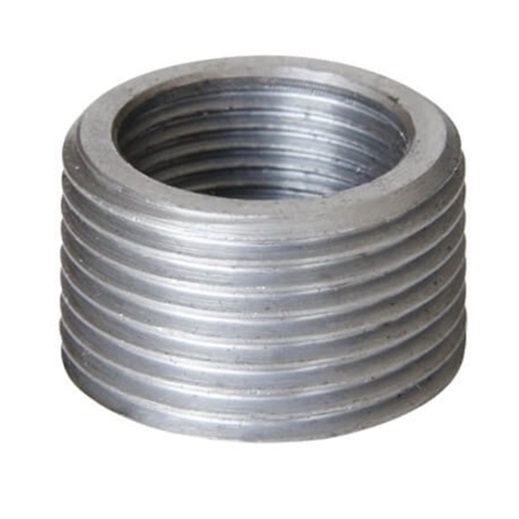

Forged flush bushing used to join reduced size pipe male threaded to larger size pipe fitting female threaded. Flush bushing is with both male and female thread.

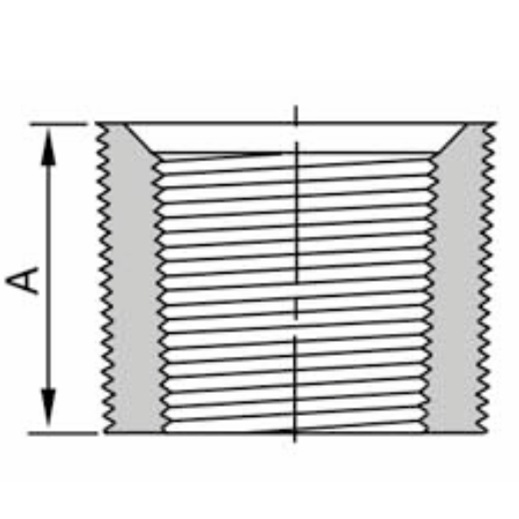

| SIZE | Length | |
| NPS | 디엔에이 | A min |
| 1/4” | 8 | 11 |
| 3/8” | 10 | 13 |
| 1/2” | 15 | 14 |
| 3/4” | 20 | 16 |
| 1” | 25 | 19 |
| 1-1/4” | 32 | 21 |
| 1-1/2” | 40 | 21 |
| 2” | 50 | 22 |
| 2-1/2” | 65 | 27 |
| 3” | 80 | 28 |
| 4” | 100 | 32 |
플루이드테크그룹은 중국 북부 지역에서 방화 분야를 전문으로 하는 최초의 회사입니다.
FLUID TECH PIPING SYSTEMS (TIANJIN) CO.,LTD2024
