Grooved 45° Elbow - Fluid Tech

홈이 있는 45° 엘보

Certificate: FM Approved / UL Listed / LPCB

Size: 1” – 24” (DN 25 – DN 600)

압력: 300PSI/500PSI

Material: ASTM A536, GRADE 65-45-12, QT450-10

Threaded: ASME B1.20.1, ISO 7-1, GB 7306

Groove: AWWA C606, ISO 6182-12

Surface: P: Painted E: Electroplated B: Black S: Epoxy G: Hot-dip Galvanized

지금 채팅하기

제품 상세정보

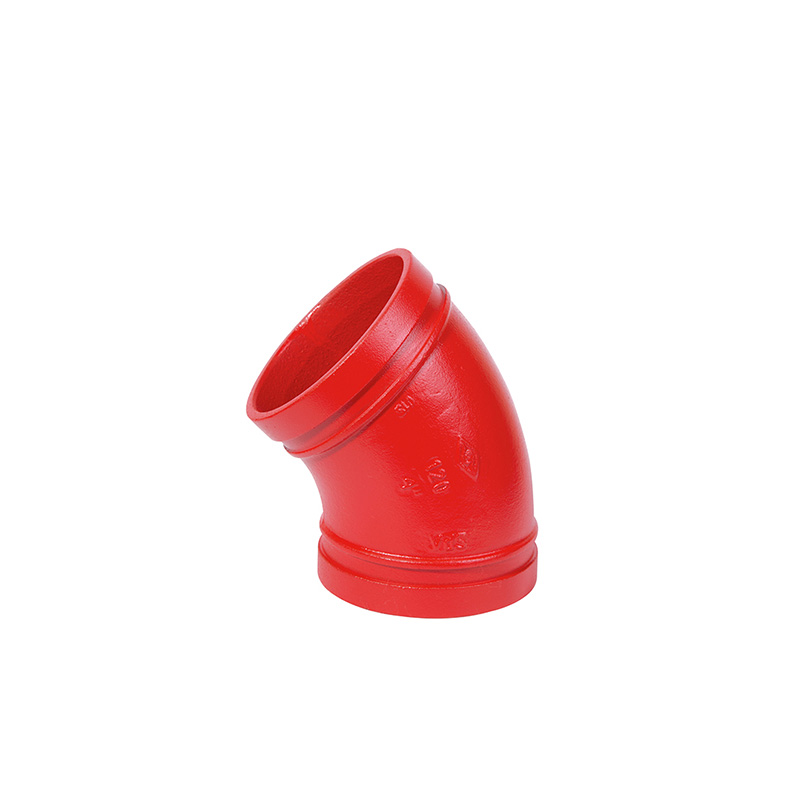

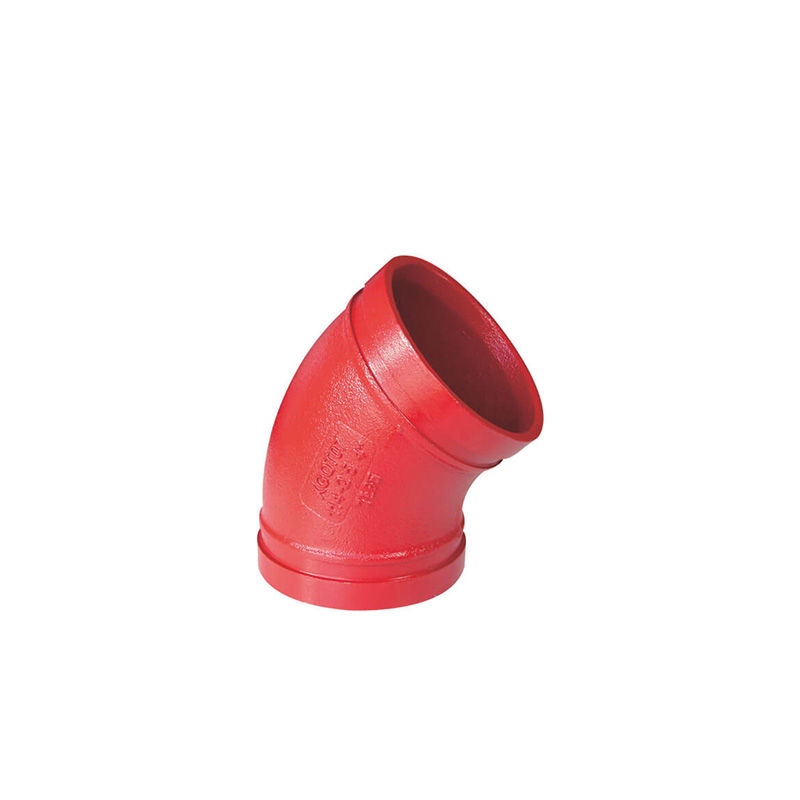

Grooved 45°elbow is a pipe fitting designed to create a 45-degree turn in a piping system while using a grooved connection for easy assembly and secure sealing.

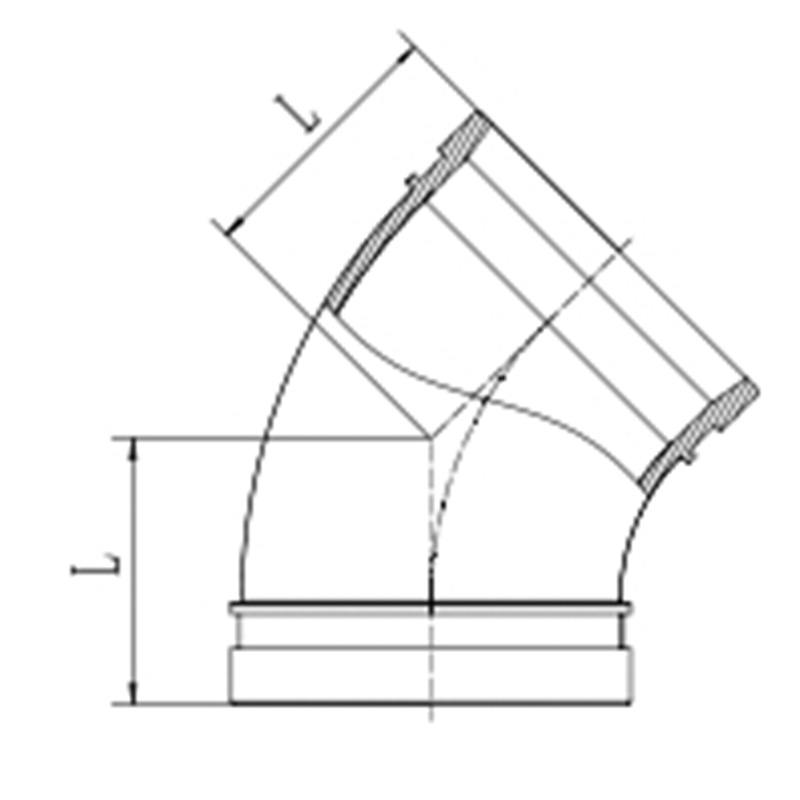

SIZE		OD SIZE	L (MM)
1″	디엔25	33.7	44
1 1/4”	디엔32	42.4	44
1 1/2”	DN40	48.3	44
2”	DN50	60.3	51
2 1/2”	DN65	73.0	57
2 1/2”	DN65	76.1	57
3”	DN80	88.9	64
4”	DN100	108.0	76
4”	DN100	114.3	76
5”	디엔125	133.0	83
5”	디엔125	139.7	83
5”	디엔125	141.3	83
6”	DN150	159.0	89
6”	DN150	165.1	89
6”	DN150	168.3	89
8인치	DN200	219.1	108
10인치	DN250	267.4	120.5
10인치	DN250	273.0	121
12인치	디엔300	318.5	133
12인치	디엔300	323.9	133
14인치	DN350	355.6	122
14인치	DN350	377.0	152
16인치	DN400	406.4	184
18인치	DN450	457.2	203
20인치	DN500	508.0	229
24인치	DN600	609.6	280
