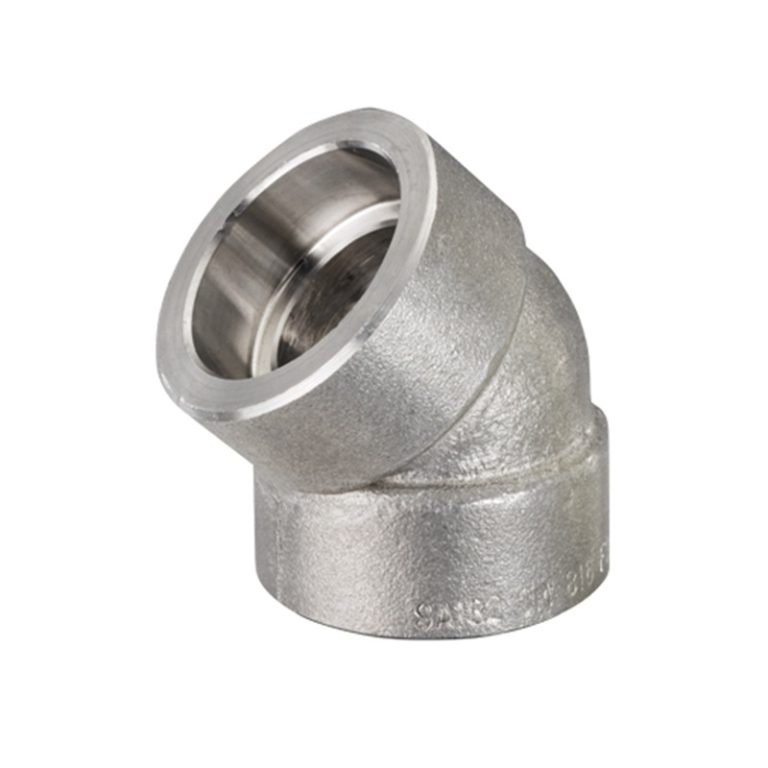

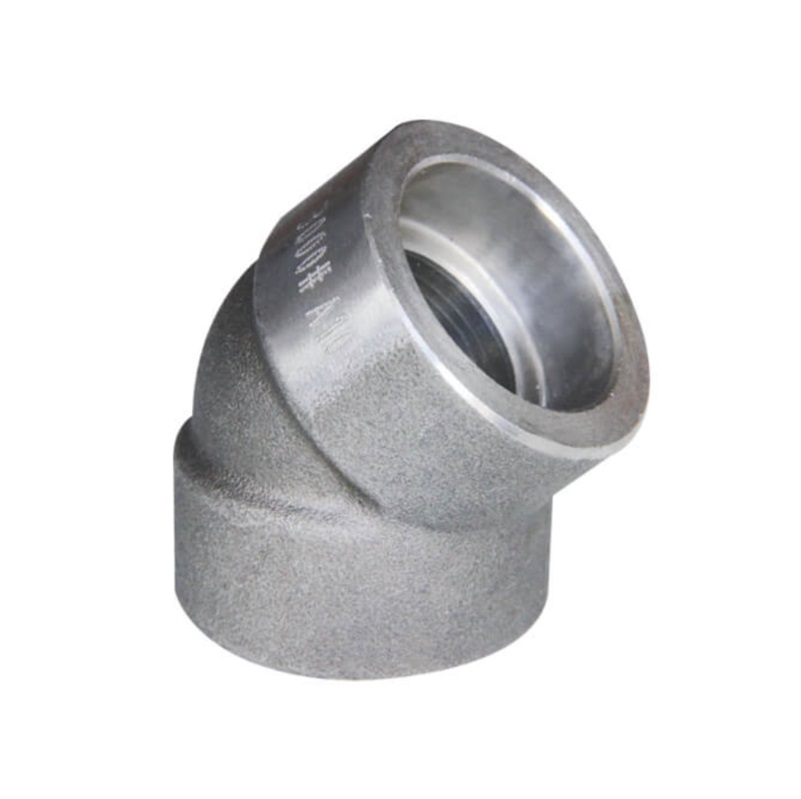

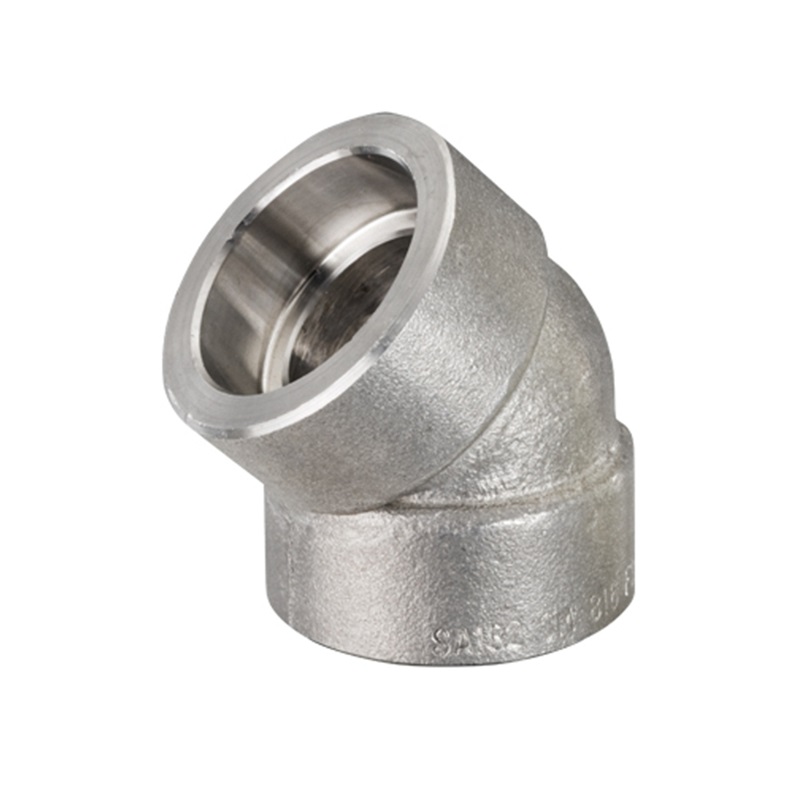

Socket weld 45°elbow

Socket weld 45°elbow

특징:

Certificate: ISO

American Standard: ASME B16.11

Material: Carbon steel ASTM A 105 / Stainless steel

Type: Forged fitting

W.pressure: Class 3000 / 6000 / 9000

Surface: Original / hot dip galvanized

제품 상세정보

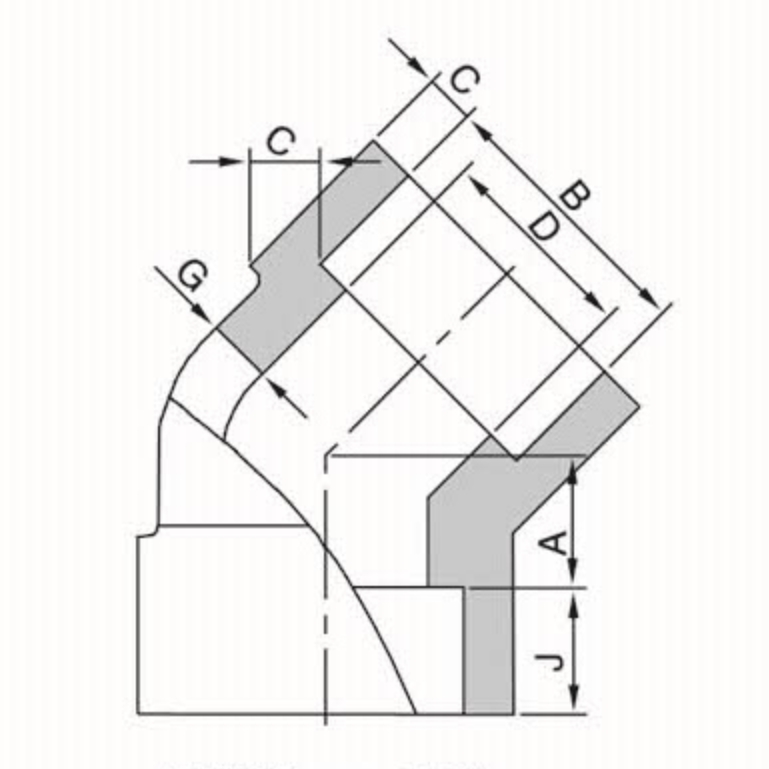

3000LB SW elbow 45°draw

SW 45°elbow is used to change the direction of flow in a piping system by 45 degrees. The SW 45°elbow has a socket at the end into which the pipe is inserted and then welded around the SW elbow to create a secure, leak-proof connection.

SIZE Socket Bore Dia.

Bore Dia. Of fittings

Socket Wall

C min

Body Wall

G min

Depth of socket

J min

Center to Bottom of socket

에이

NPS 디엔에이 3000LB 6000 LB 9000 LB 3000 LB 6000 LB 9000 LB 3000 LB 6000 LB 9000 LB 3000 LB 6000 LB 9000 LB
1/8” 6 10.9 6.1 3.2 3.18 3.43 2.41 3.15 9.5 8.0 8.0
1/4” 8 14.3 8.5 5.6 3.30 4.01 3.02 3.68 9.5 8.0 8.0
3/8” 10 17.7 11.8 8.4 3.50 4.37 3.20 4.01 9.5 8.0 11.0
1/2” 15 21.9 15.0 11.0 5.6 4.09 5.18 8.18 3.73 4.78 7.47 9.5 11.0 12.5 15.5
3/4” 20 27.3 20.2 14.8 10.3 4.27 6.04 8.56 3.91 5.56 7.82 12.5 13.0 14.0 19.0
1” 25 34.0 25.9 19.9 14.4 4.98 6.93 9.96 4.55 6.35 9.09 12.5 14.0 17.5 20.5
1-1/4” 32 42.8 34.3 28.7 22.0 5.28 6.93 10.62 4.85 6.35 9.70 12.5 17.5 20.5 22.5
1-1/2” 40 48.9 40.1 33.2 27.2 5.54 7.80 11.12 5.08 7.14 10.15 12.5 20.5 25.5 25.5
2” 50 61.2 51.7 42.1 37.4 6.04 9.50 12.12 5.54 8.74 11.07 16.0 25.5 28.5 28.5
2-1/2” 65 73.9 61.2 7.62 7.01 16.0 28.5
3” 80 89.9 76.4 8.30 7.62 16.0 32.0
4” 100 115.5 100.7 9.35 8.56 16.0 41.0
