특징:
Certificate: ISO
American Standard: ASME B16.11
Material: Carbon steel ASTM A 105 / Stainless steel
Type: Forged fitting
W.pressure: Class 3000 / 6000 / 9000
Surface: Original / hot dip galvanized

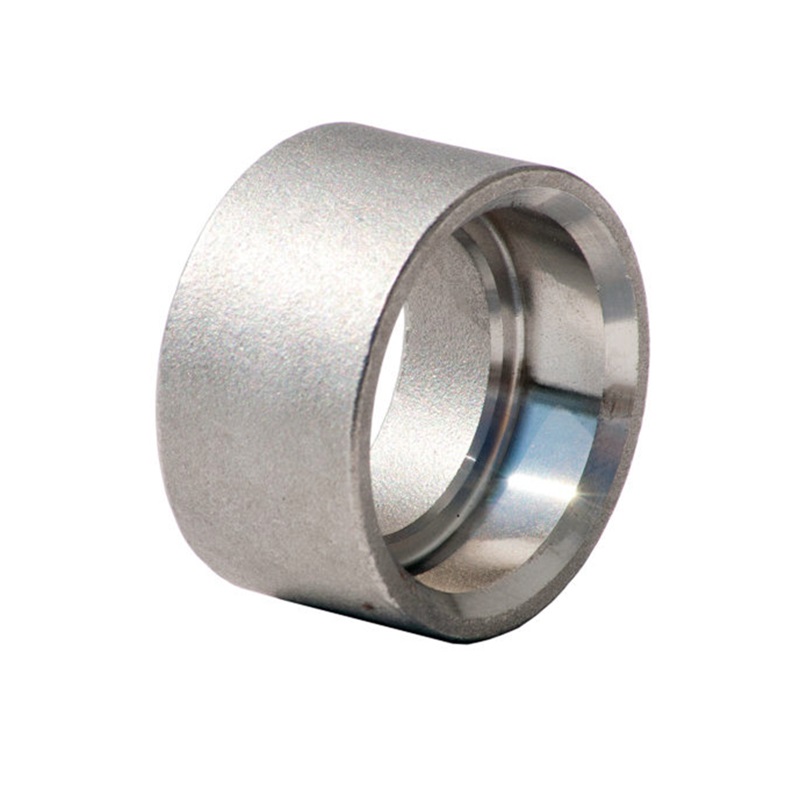

SW half coupling is used to used to join two pipes in a piping system. The SW half coupling has only one socket end. The other end is usually a plain or beveled end that can be welded directly to a header or larger pipe.

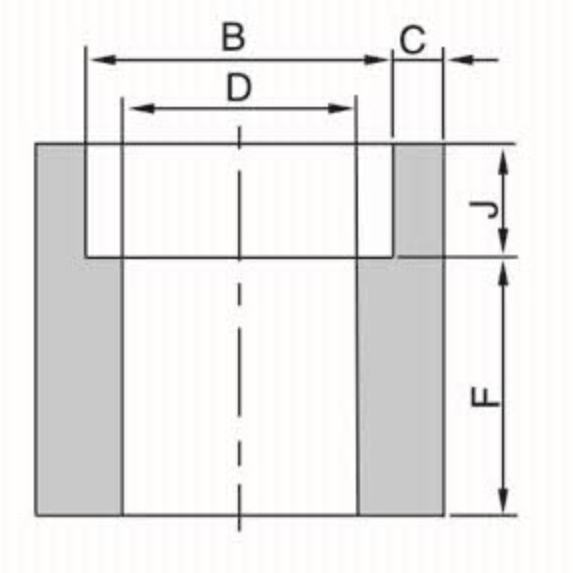

| SIZE | Socket Bore Dia.
비 |
Bore Dia. Of fittings
디 |
Socket Wall
C min |
Depth of socket
J min |
Laying Length
F |
|||||
| NPS | 디엔에이 | 3000 LB | 6000 LB | 9000 LB | 3000 LB | 6000 LB | 9000 LB | |||
| 1/8” | 6 | 10.9 | 6.1 | 3.2 | – | 3.18 | 3.43 | – | 9.5 | 16.0 |
| 1/4” | 8 | 14.3 | 8.5 | 5.6 | – | 3.30 | 4.01 | – | 9.5 | 16.0 |
| 3/8” | 10 | 17.7 | 11.8 | 8.4 | – | 3.50 | 4.37 | – | 9.5 | 17.5 |
| 1/2” | 15 | 21.9 | 15.0 | 11.0 | 5.6 | 4.09 | 5.18 | 8.18 | 9.5 | 22.5 |
| 3/4” | 20 | 27.3 | 20.2 | 14.8 | 10.3 | 4.27 | 6.04 | 8.56 | 12.5 | 24.0 |
| 1” | 25 | 34.0 | 25.9 | 19.9 | 14.4 | 4.98 | 6.93 | 9.96 | 12.5 | 28.5 |
| 1-1/4” | 32 | 42.8 | 34.3 | 28.7 | 22.0 | 5.28 | 6.93 | 10.62 | 12.5 | 30.0 |
| 1-1/2” | 40 | 48.9 | 40.1 | 33.2 | 27.2 | 5.54 | 7.80 | 11.12 | 12.5 | 32.0 |
| 2” | 50 | 61.2 | 51.7 | 42.1 | 37.4 | 6.04 | 9.50 | 12.12 | 16.0 | 41.0 |
| 2-1/2” | 65 | 73.9 | 61.2 | – | – | 7.62 | – | – | 16.0 | 43.0 |
| 3” | 80 | 89.9 | 76.4 | – | – | 8.30 | – | – | 16.0 | 44.5 |
| 4” | 100 | 115.5 | 100.7 | – | – | 9.35 | – | – | 16.0 | 48.5 |
