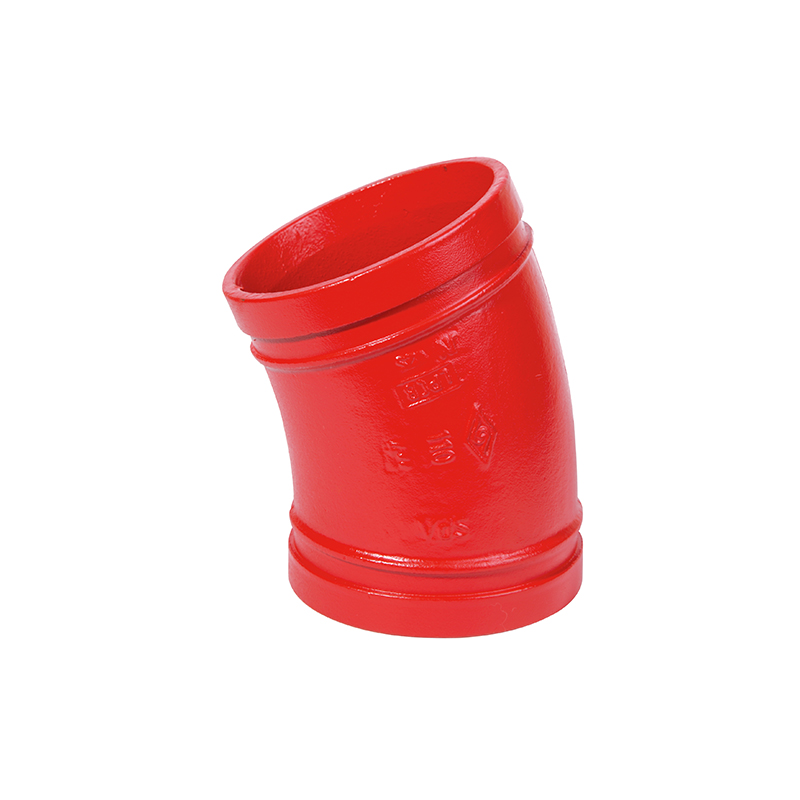

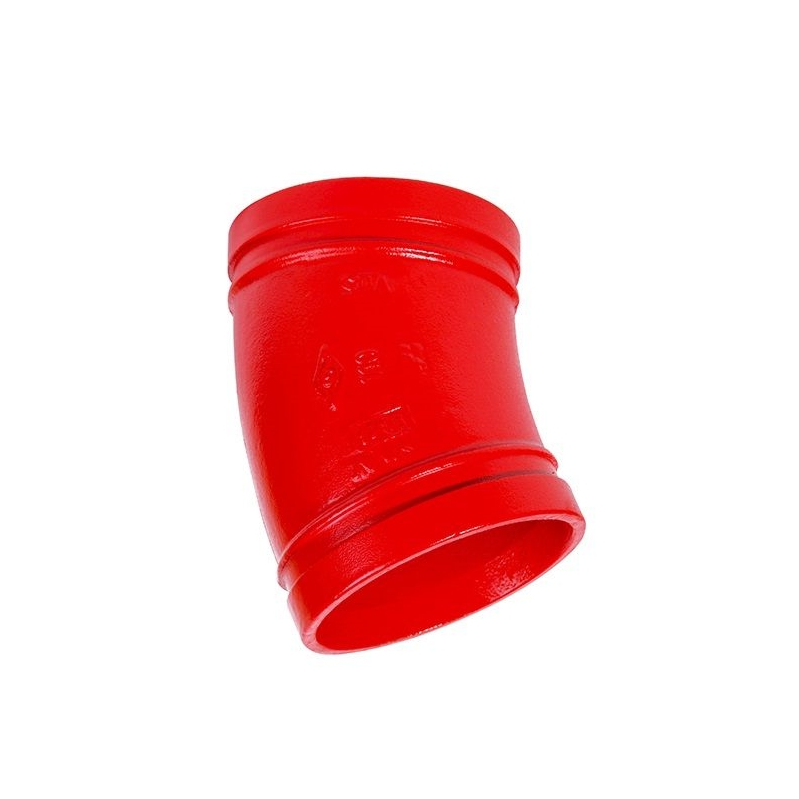

Grooved 22.5° Elbow

Beralur 22.5° Siku

ciri-ciri:

Sijil: FM Approved / UL Listed / LPCB

Saiz: 1 1/4” – 8” (DN 32 – DN 200)

Tekanan: 300PSI/500PSI

Bahan: ASTM A536, GRED 65-45-12, QT450-10

Berutas: ASME B1.20.1, ISO 7-1, GB 7306

Alur: AWWA C606, ISO 6182-12

Permukaan: P: Bercat E: Bersadur Elektronik B: Hitam S: Epoksi G: Bergalvani celup panas

Sembang Sekarang

Butiran produk

Grooved 22.5°elbow is a pipe fitting designed to create a 22.5-degree turn in a piping system while using a grooved connection for easy assembly and secure sealing.

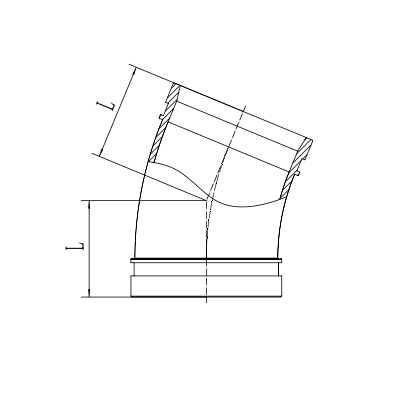

SAIZ		SAIZ OD	L (MM)
1 1/4”	DN32	42.4	45
1 1/2”	DN40	48.3	45
2”	DN50	60.3	48
2 1/2”	DN65	73.0	51
2 1/2”	DN65	76.1	51
3”	DN80	88.9	57
4”	DN100	108.0	73
4”	DN100	114.3	73
5”	DN125	133.0	73
5”	DN125	139.7	73
6”	DN150	159.0	89
6”	DN150	165.1	89
6”	DN150	168.3	89
8”	DN200	219.1	98
