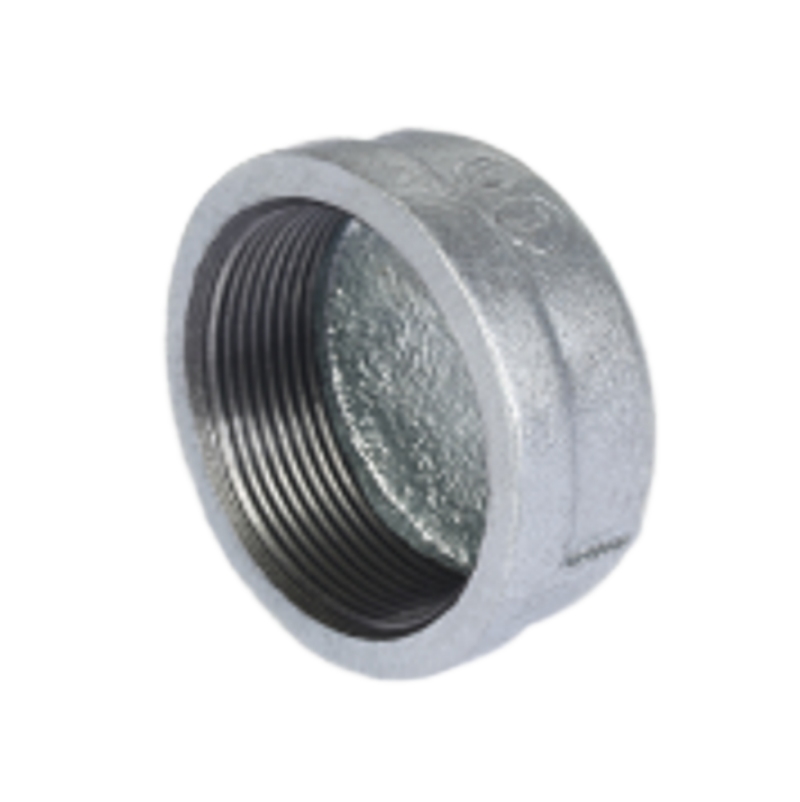

Malleable iron round cap BS EN

Malleable iron round cap BS EN

ciri-ciri:

Sijil: FM Approved / UL Listed / BSI / LPCB / NSF 61

Saiz: DN8 – DN150

Tekanan: 2.5 Mpa / PN25

Dimensi: BS EN10242

Bahan: Besi mudah tempa BS EN1562

Berutas: BSPP (ISO228) / BSPT (ISO7-1)

Permukaan: Hitam / Tergalvani elektrik / Tergalvani celup panas

Sembang Sekarang

Butiran produk

Tudung bulat besi boleh ditempa is a kind of pipe fitting commonly used in the end of pipe to stop the fluid system.

SAIZ		A (MM)	PCS/CTN.
1/4”	DN8	16	1200
3/8”	DN10	17	1200
1/2”	DN15	19	700
3/4”	DN20	22	500
1”	DN25	24	360
1 1/4”	DN32	27	220
1 1/2”	DN40	27.5	160
2”	DN50	32	100
2 1/2”	DN65	36	60
3”	DN80	39	38
4”	DN100	46	20
6”	DN150	59	/
