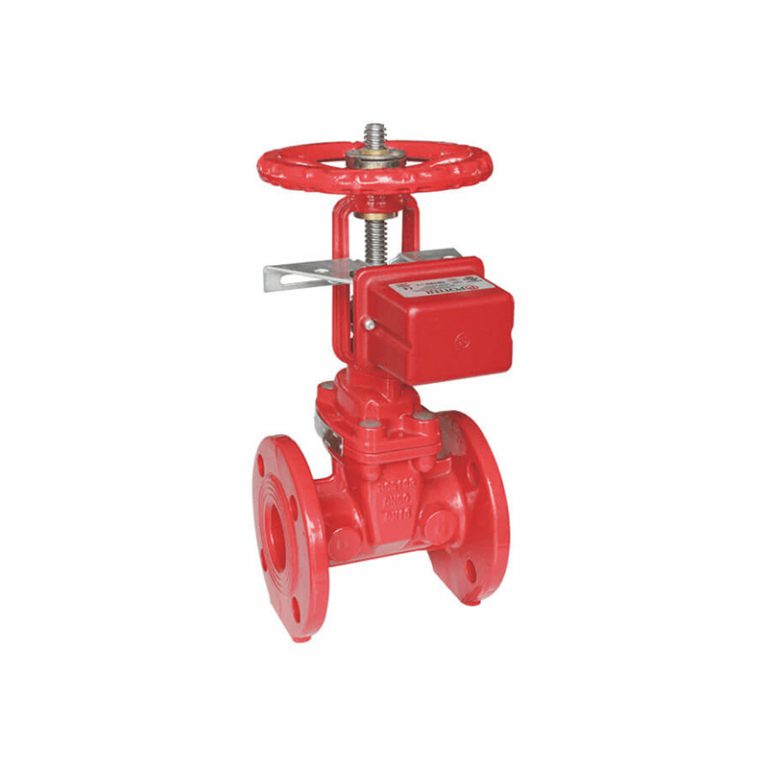

Resilient OS&Y gate valve flange ends

Sijil: UL Listed / FM Approved

Standard: BS EN 1074-2

Connection: Flanged as EN 1092-2

Indicator: Non / with supervisory switch

Suhu: 0°C hingga 80°C

pressure: PN 16

Permukaan: Salutan FBE sebagai AWWA C550

Sembang Sekarang

Butiran produk

Resilient OS&Y gate valve flange ends is a high-performance gate valve designed for water supply, fire protection, and industrial fluid control. The valve adopts elastic seat seal and outside screw and yoke structure, providing excellent sealing and easy maintenance.

Saiz			Tekanan Kerja
Inci	DN	DARI (mm)	Tekanan Kerja
2”	50	60.3	PN16 /300 PSI
2-1/2”	65	76.1
3”	80	88.9
4”	100	114.3
5”	125	139.7
6”	150	165.1
8”	200	219.1
10”	250	273.0
12”	300	323.9
14”	350	355.6
16”	400	406.4
18”	450	457.0
20”	550	508.0
24”	600	610.0
