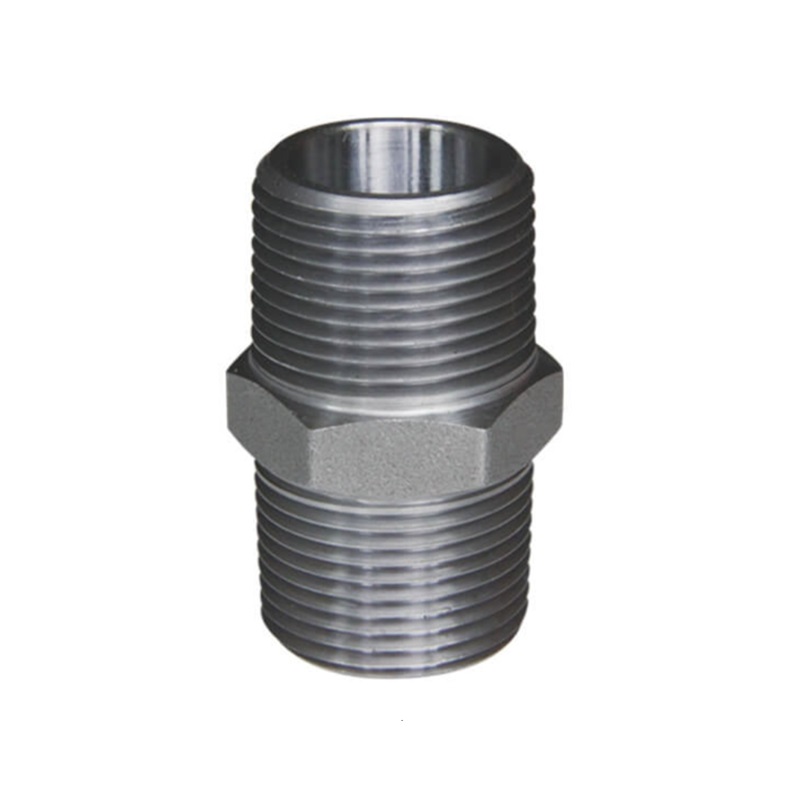

Forged thread hex nipple

Functies:

Certificate: ISO

American Standard: BS3799

Material: Carbon steel ASTM A 105 / Stainless steel

Type: Forged fitting

W.pressure: Class 3000

Surface: Original / hot dip galvanized

Chat nu

Productdetails

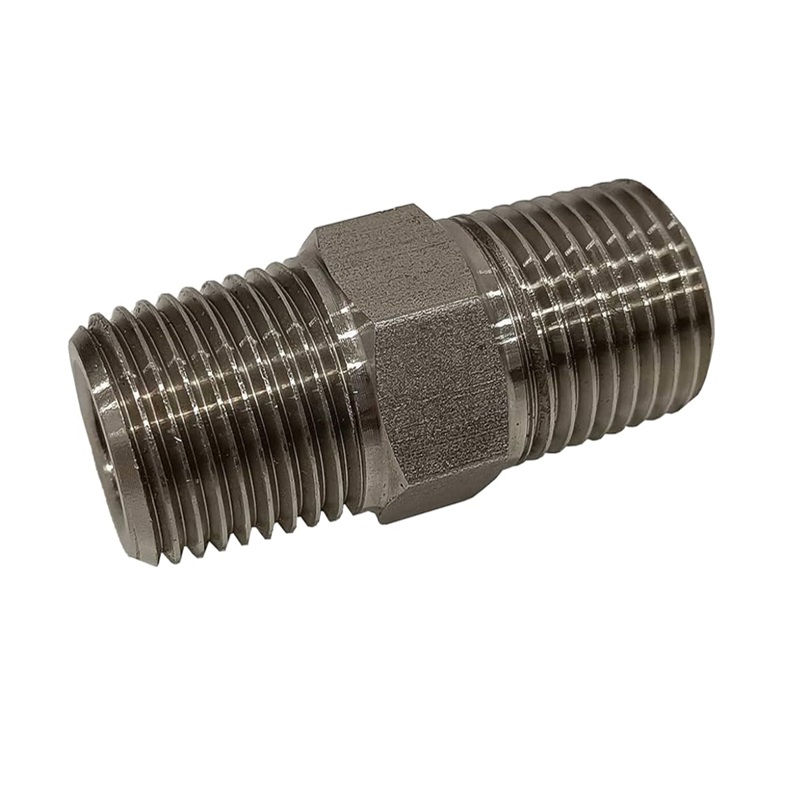

Forged thread nipple is used to connect two pipes with thread in the high pressure pipe line. Two ends of the forged thread nipples are with male threads.

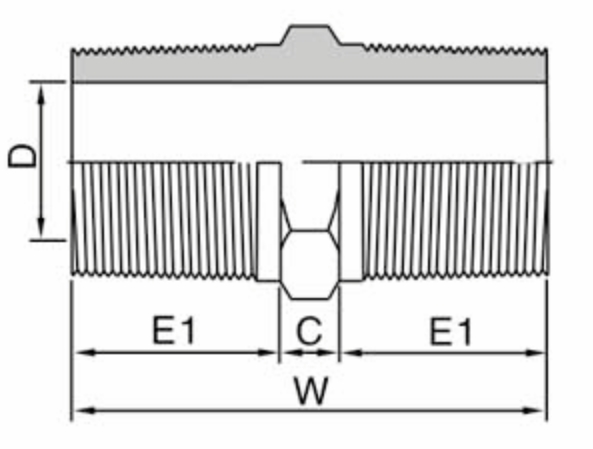

Maat		C	E1	IN	D
DN	NPS	C	E1	IN	SCH80	SCH160
6	1/8”	6	10	26	5	4
8	1/4”	6	15	36	7	6
10	3/8”	8	16	40	10	8
15	1/2”	8	20	48	13	10
20	3/4”	10	21	52	18	14
25	1”	10	25	60	23	19
32	11/4”	12	25	62	31	28
40	11/2”	16	26	68	36	32
50	2 “	18	27	72	47	40
65	21/2”	20	38	96	57	51
80	3”	20	40	100	70	63
