Grookte snelle koppeling - vloeistoftechnologie

Groef snel koppelen

Functies:

Certificaat: FM goedgekeurd / UL vermeld / LPCB

Size: 1 1/4” – 8” (DN 32 – DN 200)

Pressure: 300PSI/500PSI

Materiaal: ASTM A536, graad 65-45-12, QT450-10

Threaded: ASME B1.20.1, ISO 7-1, GB 7306

Groove: Awwa C606, ISO 6182-12

Oppervlak: P: Geschilderd E: Electroplated B: Black S: Epoxy G: Hot-Dip Galvanised

Chat nu

Productdetails

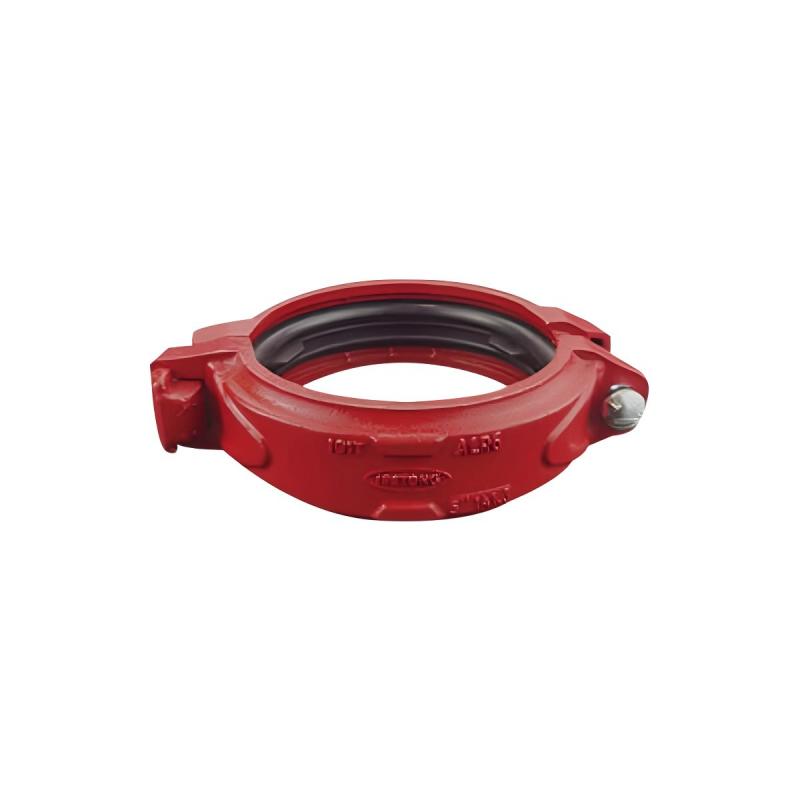

Groef snel koppelen is a truly rigid grooved pipe coupling which, unlike other grooved couplings, does not allow for any axial movement, angular movement and/or rotational movement under normal service conditions.

MAAT		OD -maat	L (mm)	H (mm)	W (mm)
1 1/4”	DN32	42.4	71.5	112	47
1 1/2”	DN40	48.3	78	117	47
2”	DN50	60.3	90	132	48
2 1/2”	DN65	73	104	147	48
2 1/2”	DN65	76.1	106	150	48
3”	DN80	88.9	121	164	49
4”	DN100	114.3	147	190	52
5”	DN125	139.7	174	222	52
6”	DN150	165.1	206	263	52
6”	DN150	168.3	210	264	52
8 "	DN200	219.1	260	320	65
