Malleable iron reducing nipple BS EN

Malleable iron reducing nipple BS EN

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size:Size: DN15×8 – DN100×80

Pressure: 2.5 Mpa / PN25

Dimensions: BS EN10242

Material: Malleable iron BS EN1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

Surface: Black / Electrical galvanized / Hot-dip galvanized

Product details

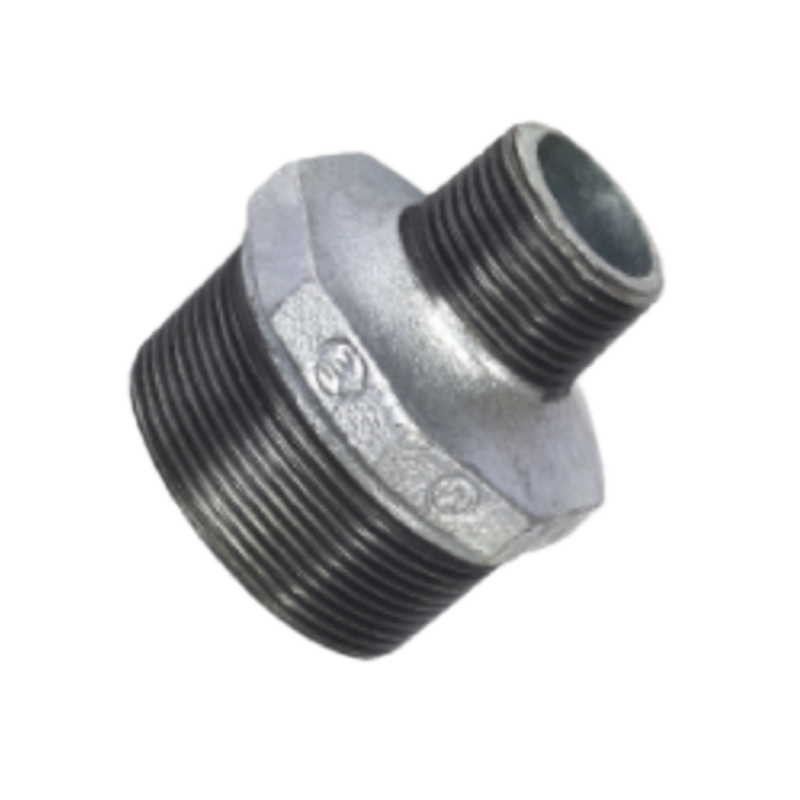

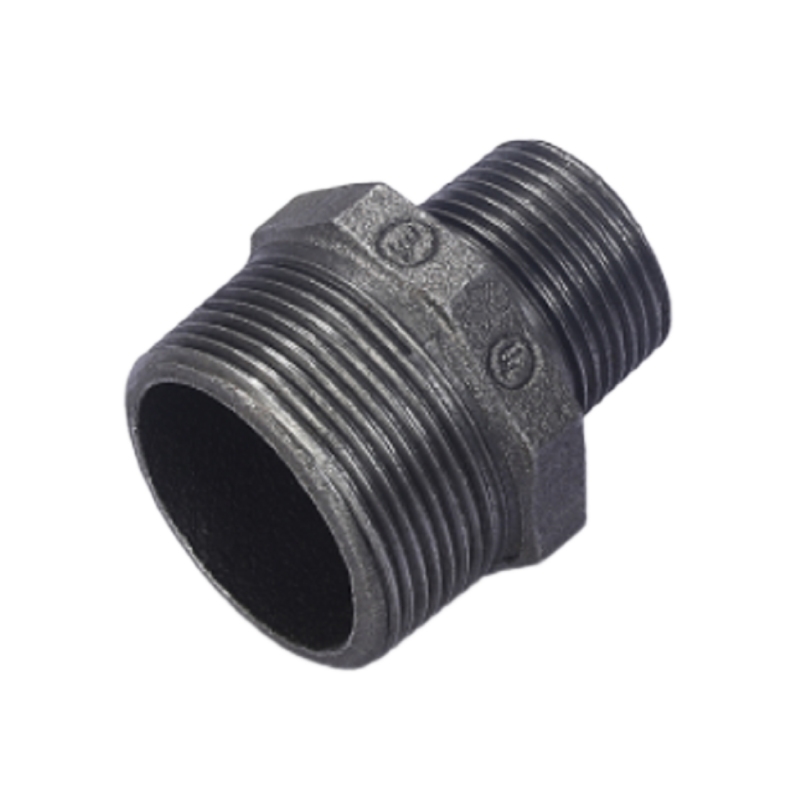

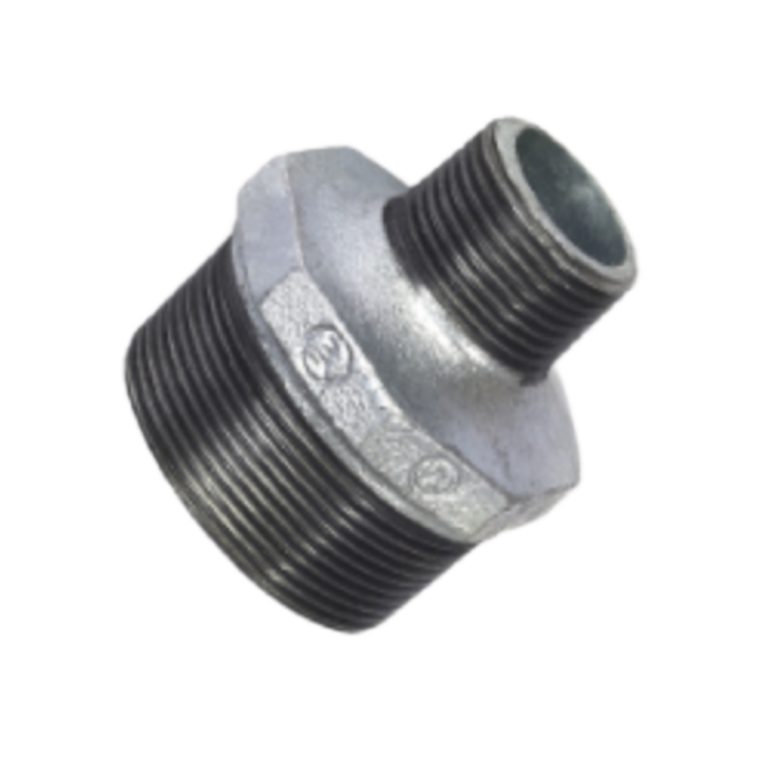

Malleable iron reducing nipple middle-hex fitting with both male threaded connections, and it is used to join two pipes with different size.

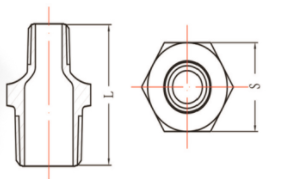

SIZE		L (MM)	S(MM)	PCS/CTN.
1/2″x1/4″	15×8	44	22	600
1/2″x3/8″	15×10	44	22	600
3/4 “x1/2”	20×15	47	29.9	400
1″x1/2″	25×15	53	35.8	260
1 “x 3/4”	25×20	53	35.8	240
1-1/4″x1/2″	32×15	57	45.6	160
1-1/4″x3/4″	32×20	57	45.6	140
1-1/4″x1″	32×25	57	45.6	140
1-1/2″x1/2″	40×15	59	50.5	130
1-1/2″x3/4″	40×20	59	50.5	130
1-1/2″x1″	40×25	59	50.5	120
1-1/2″x1-1/4″	40×32	59	50.5	100
2 “x1/2”	50×15	68	63.5	75
2 “x 3/4”	50×20	68	63.5	72
2 “x 1”	50×25	68	63.5	72
2″x1-1/4″	50×32	68	63.5	72
2″x1-1/2″	50×40	68	63.5	60
2-1/2″”x 2″	65×50	73	79.4	/
3 “x2”	80×50	81	91.6	24
3″×2-1/2″	80×65	81	91.6	/
4″×2″	100×50	95	117	/
4″×2-1/2″	100×65	95	117	/
4″×3″	100×80	95	117	/
