Drag:
Certifikat: FM-godkänd / UL-listad
Storlek: 1/2” – 4” (DN 15 – DN 100)
Tryck: 2,5 Mpa / PN25
Dimensions: DIN EN 10242
Material: Smidbart järn DIN EN 1562
Gängd: BSPP (ISO228) / BSPT (ISO7-1)

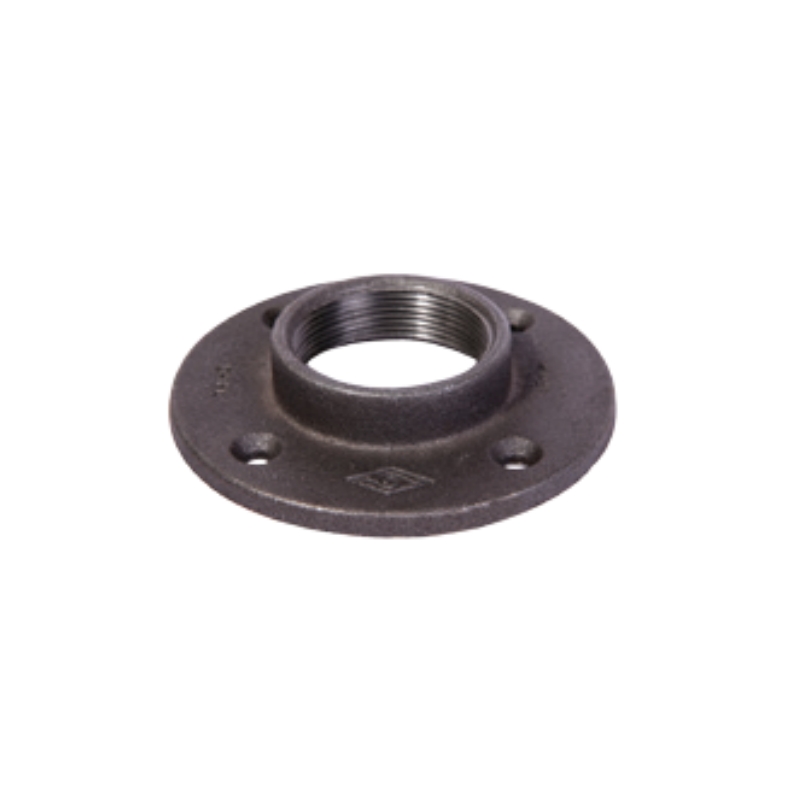

Yta: Svart / Elförzinkad / Varmförzinkad

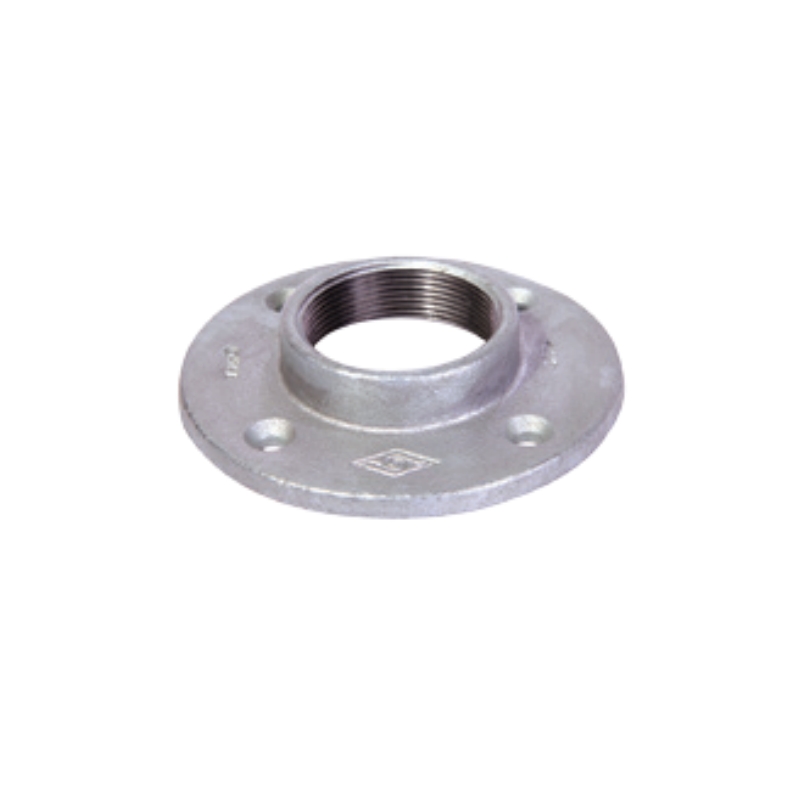

Malleable cast iron flange with holes can be used for transitional connection between grooved pipes and flange equipment and valves. The connecting bolts are made of high-strength bolts, and the product has stable performance.
| Storlek | Inch | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| mm | 15 | 20 | 25 | 32 | 40 | 50 | |

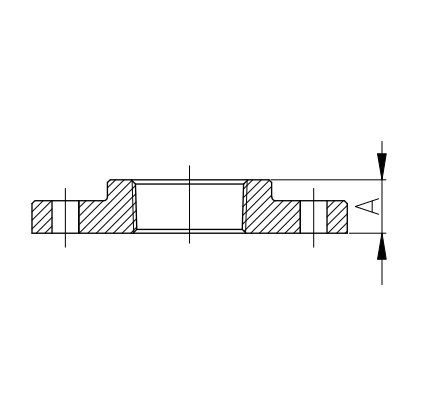

| Dim.(mm) | A | 12 | 13 | 14 | 15 | 16 | 18 |
| Storlek | Inch | 21/2 | 3 | 4 | |||
| mm | 65 | 80 | 100 | ||||
| Dämpa. (mm) |
A | 20 | 22 | 24 |
