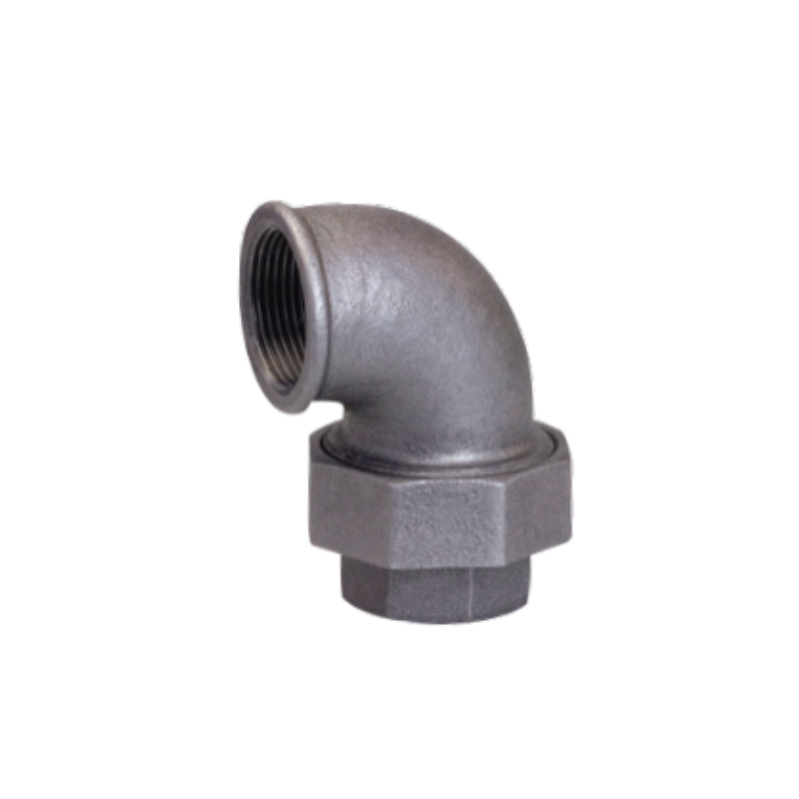

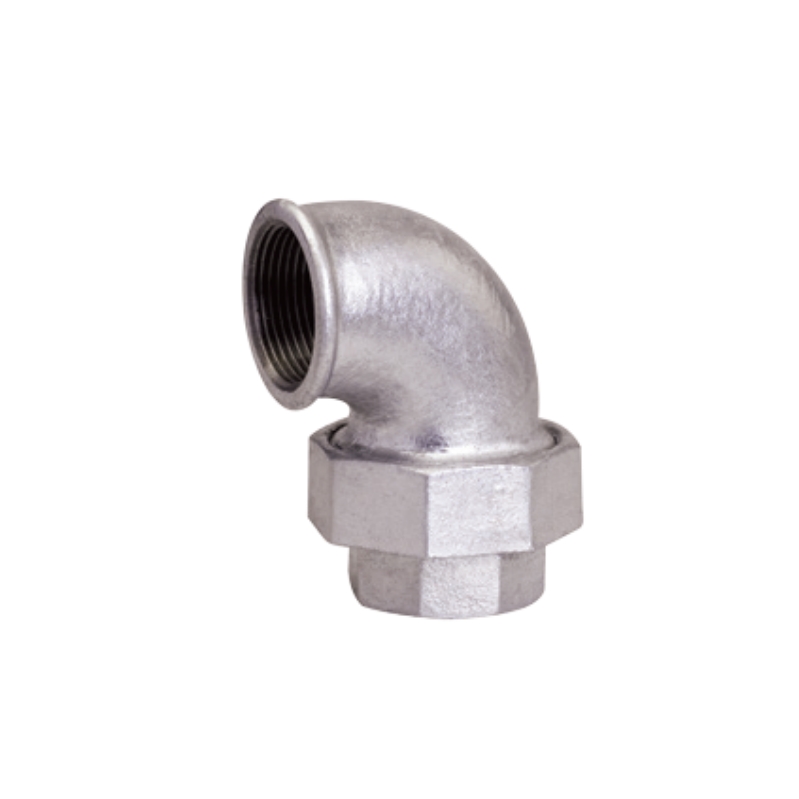

Malleable iron union elbow beaded

Malleable iron union elbow beaded

Drag:

Certifikat: FM-godkänd / UL-listad

Size: 1/4” – 3” (DN 8 – DN 80)

Tryck: 2,5 Mpa / PN25

Dimensions: DIN EN 10242

Material: Smidbart järn DIN EN 1562

Gängd: BSPP (ISO228) / BSPT (ISO7-1)

Yta: Svart / Elförzinkad / Varmförzinkad

Chatta nu
Meddelande
E-post

Produktdetaljer

Malleable cast iron union elbow draw

Malleable cast iron union elbow (Flat seat) has female threads at both ends, connecting to external threaded pipes to change the direction of the pipe.

Storlek Inch 1/2 3/4 1 11/4 11/2 2
mm 15 20 25 32 40 50
Dämpa.
(mm)		 A 28 33 38 45 50 58
B 61 65 75 85 93 103
Storlek Inch 21/2 3
mm 65 80
Dämpa.
(mm)		 A 78 83
B 115 134
