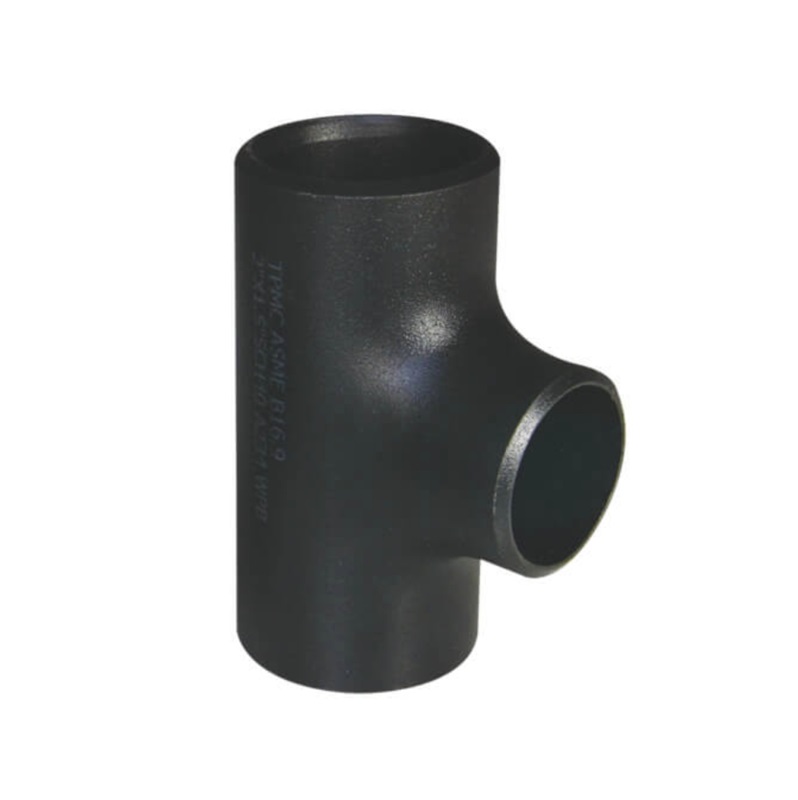

Butt weld reducing tee

Features:

Certificate: ISO

American Standard: ASME B16.9

EN / BS Standard: EN 10253-1 / EN 10253-2 / EN 10253-3

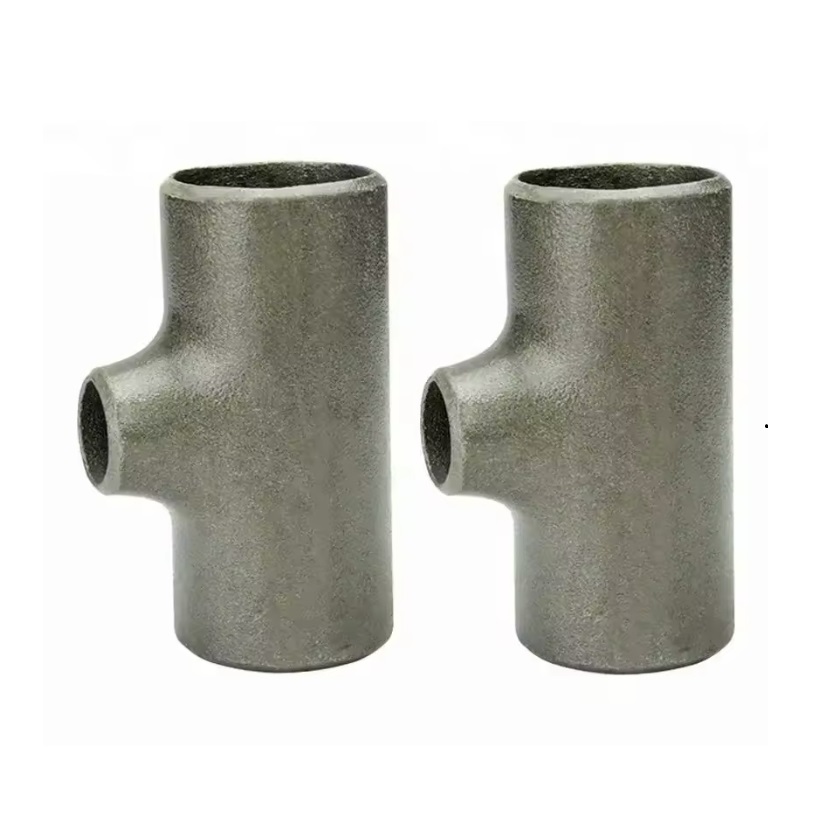

Material -1: Carbon steel ASTM A234, WPB, P265GH, P235TR2

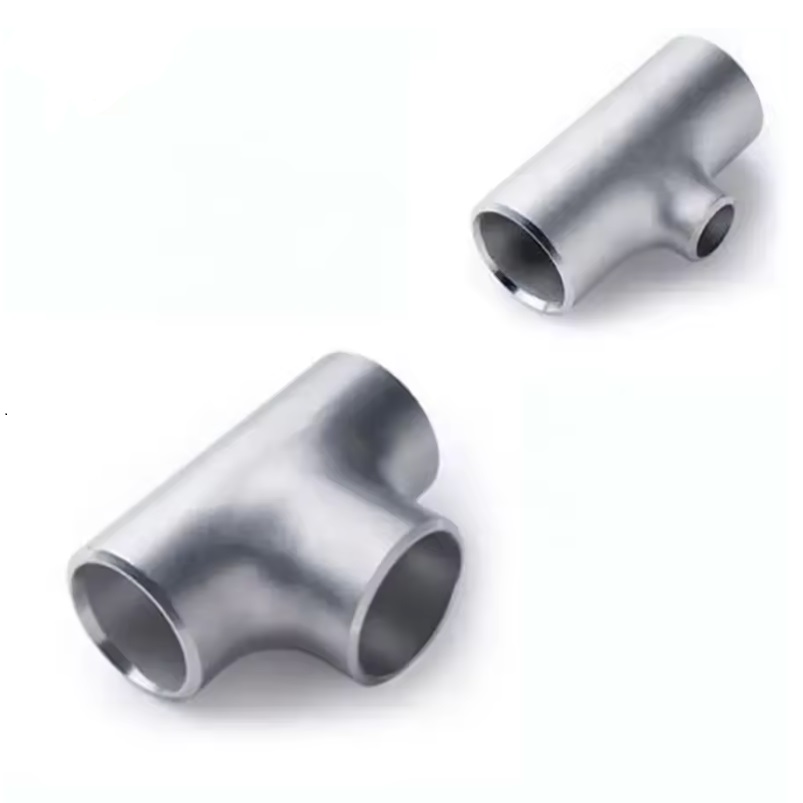

Material -2: Stainless steel SS ASTM A403, SS 304 , SS 316

Type: Reducing Tee

W.pressure: Equal to same seamless pipe

End: Straight edges / bevelled for welding

Surface: Original / Sandblast / Black painting / hot dip galvanized

Chat Now

Product details

Butt weld reducing tee is used to used to branch smaller diameter pipes from the main pipe in the piping systems. It connects three pipes by butt welding, usually in a “T” configuration.

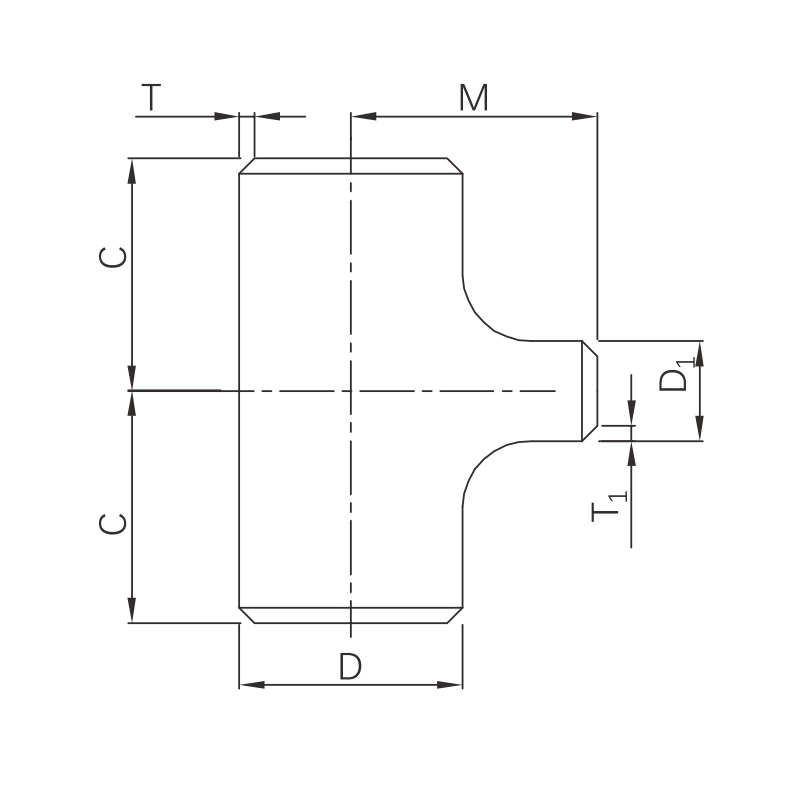

American Standard: ASME B16.9

SIZE			T (mm)			C (mm)	M (mm)
NPS	DN	OD (mm)	Sch10	Sch40	Sch80	C (mm)	M (mm)
3/4″ x 1/2″	20 x 15	26.7 x 21.3	2.11 x 2.11	2.87 x 2.77	3.91 x 3.73	29	29
1″ x 3/4″	25 x 20	33.4 x 26.7	2.77 x 2.11	3.38 x 2.87	4.55 x 3.91	38	38
1-1/4″ x 1″	32 x 25	42.2 x 33.4	2.77 x 2.77	3.56 x 3.38	4.85 x 4.55	48	48
1-1/2″ x 1-1/4″	40 x 32	48.3 x 42.2	2.77 x 2.77	3.68 x 3.56	5.08 x 4.85	57	57
2″ x 1-1/2″	50 x 40	60.3 x 48.3	2.77 x 2.77	3.91 x 3.68	5.54 x 5.08	64	60
2-1/2″ x 2″	65 x 50	73.0 x 60.3	3.05 x 2.77	5.16 x 3.91	7.01 x 5.54	76	70
3″ x 2-1/2″	80 x 65	88.9 x 73.0	3.05 x 3.05	5.49 x 5.16	7.62 x 7.01	86	83
4″ x 3″	100 x 80	114.3 x 88.9	3.05 x 3.05	6.02 x 5.49	8.56 x 7.62	105	98
5″ x 4″	125 x 100	141.3 x 114.3	3.40 x 3.05	6.55 x 6.02	9.53 x 8.56	124	117
6″ x 4″	150 x 100	168.3 x 114.3	3.40 x 3.05	7.11 x 6.02	10.97 x 8.56	143	130
8″ x 6″	200 x 150	219.1 x 168.3	3.76 x 3.40	8.18 x 7.11	12.70 x 10.97	178	168
10″ x 8″	250 x 200	273.0 x 219.1	4.19 x 3.76	9.27 x 8.18	15.09 x 12.70	216	203
12″ x 10″	300 x 250	323.8 x 273.0	4.57 x 4.19	10.31 x 9.27	17.48 x 15.09	254	241
14″ x 12″	350 x 300	355.6 x 323.8	6.35 x 4.57	11.13 x 10.31	19.05 x 17.48	279	270
16″ x 14″	400 x 350	406.4 x 355.6	6.35 x 6.35	12.70 x 11.13	21.44 x 19.05	305	305
18″ x 16″	450 x 400	457 x 406.4	6.35 x 6.35	14.27 x 12.70	23.83 x 21.44	343	330
20″ x 18″	500 x 450	508 x 457	6.35 x 6.35	15.09 x 14.27	26.19 x 23.83	381	368
24″ x 10″	600 x 250	610 x 273.0	6.35 x 4.19	17.48 x 9.27	30.96 x 15.09	432	384

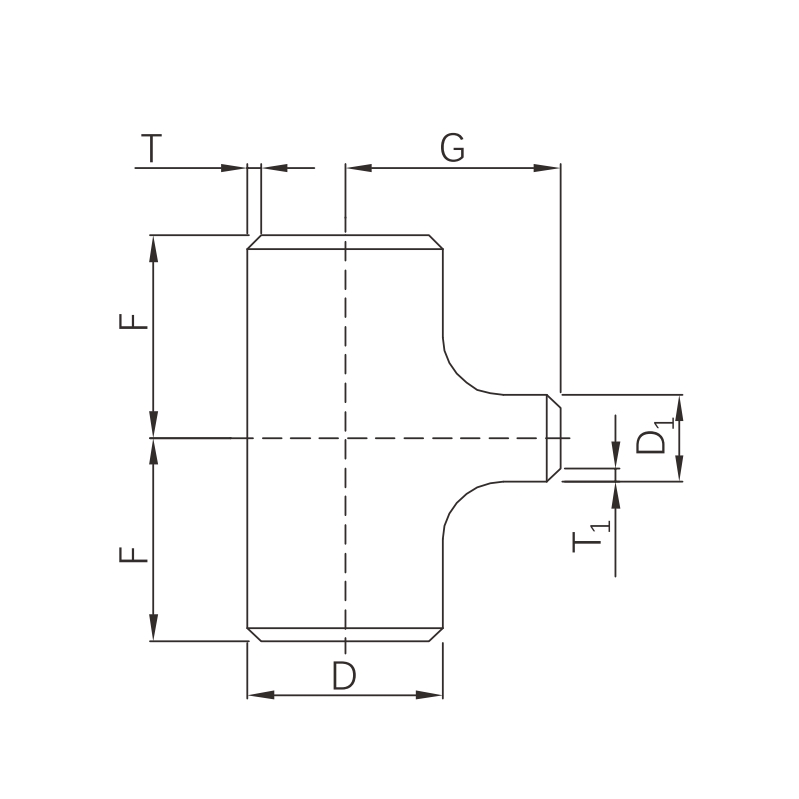

EN / BS Standard: EN 10253

SIZE			T (Large end, mm)	F (mm)	G (mm)
NPS	DN	OD (mm)	T (Large end, mm)	F (mm)	G (mm)
3/4″ x 1/2″	20 x 15	26.9 x 21.3	2.3 / 2.6 / 3.2 / 4.0 / 4.5 / 5.6 / 8.0	29	29
1″ x 3/4″	25 x 20	33.7 x 26.9	2.6 / 3.2 / 4.0 / 4.5 / 5.6 / 6.3 / 8.8	38	38
1-1/4″ x 1″	32 x 25	42.4 x 33.7	2.6 / 3.6 / 4.0 / 5.0 / 6.3 / 8.0 / 10.0	48	48
1-1/2″ x 1-1/4″	40 x 32	48.3 x 42.4	2.6 / 3.6 / 4.0 / 5.0 / 6.3 / 8.0 / 10.0	57	57
2″ x 1-1/2″	50 x 40	60.3 x 48.3	2.9 / 3.6 / 4.0 / 5.6 / 7.1 / 8.8 / 11.0	64	60
2-1/2″ x 2″	65 x 50	76.1 x 60.3	2.9 / 3.6 / 5.6 / 7.1 / 8.0 / 10.0 / 14.2	76	70
3″ x 2-1/2″	80 x 65	88.9 x 76.1	3.2 / 4.0 / 5.6 / 8.0 / 8.8 / 11.0 / 16.0	86	83
4″ x 3″	100 x 80	114.3 x 88.9	3.6 / 4.5 / 6.3 / 8.8 / 11.0 / 14.2 / 17.5	105	98
5″ x 4″	125 x 100	139.7 x 114.3	4.0 / 5.0 / 6.3 / 10.0 / 12.5 / 16.0 / 20.0	124	117
6″ x 5″	150 x 125	168.3 x 139.7	4.0 / 4.5 / 5.6 / 7.1 / 11.0 / 14.2 / 17.5 / 22.2	143	137
8″ x 6″	200 x 150	219.1 x 168.3	4.5 / 6.3 / 7.1 / 8.0 / 12.5 / 16.0 / 17.5 / 22.2	178	168
10″ x 8″	250 x 200	273.0 x 219.1	5.0 / 6.3 / 8.8 / 10.0 / 12.5 / 16.0 / 22.2 / 30.0	216	203
12″ x 10″	300 x 250	323.9 x 273.0	5.6 / 7.1 / 8.8 / 10.0 / 12.5 / 17.5 / 25.0 / 32.0	254	241
14″ x 12″	350 x 300	355.6 x 323.9	5.6 / 8.0 / 10.0 / 12.5 / 16.0 / 20.0 / 28.0 / 36.0	279	270
16″ x 14″	400 x 350	406.4 x 355.6	6.3 / 8.8 / 10.0 / 12.5 / 17.5 / 22.2 / 30.0 / 40.0	305	305
18″ x 16″	450 x 400	457 x 406.4	6.3 / 10.0 / 11.0 / 12.5 / 17.5 / 22.2 / 32.0 / 45.0	343	330
20″ x 18″	500 x 450	508 x 457	6.3 / 10.0 / 11.0 / 12.5 / 17.5 / 25.0 / 36.0 / 50.0	381	368
24″ x 20″	600 x 500	610 x 508	6.3 / 10.0 / 12.5 / 17.5 / 25.0 / 30.0 / 45.0 / 60.0	432	432
