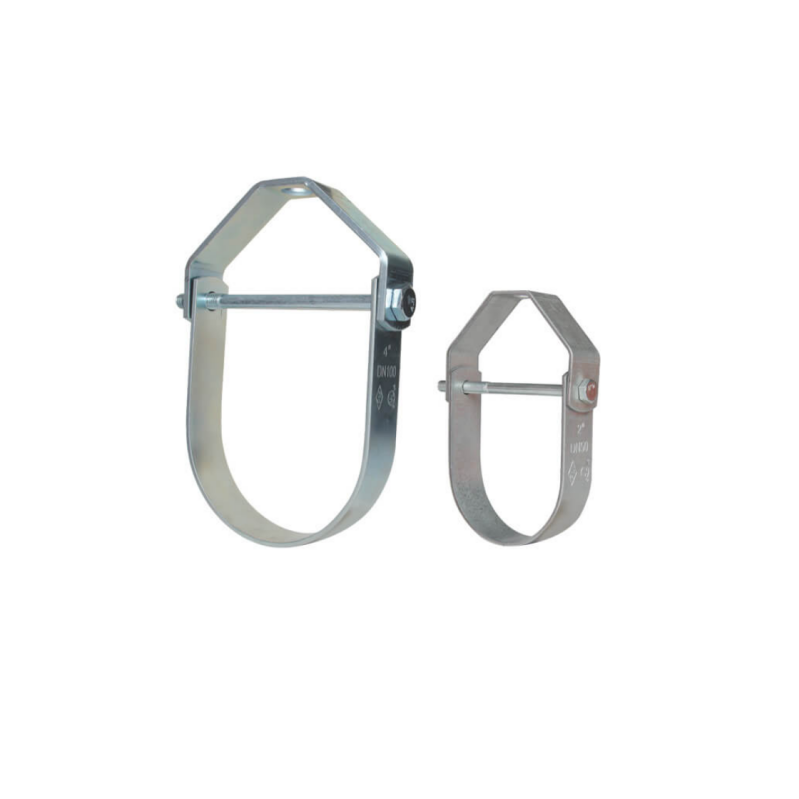

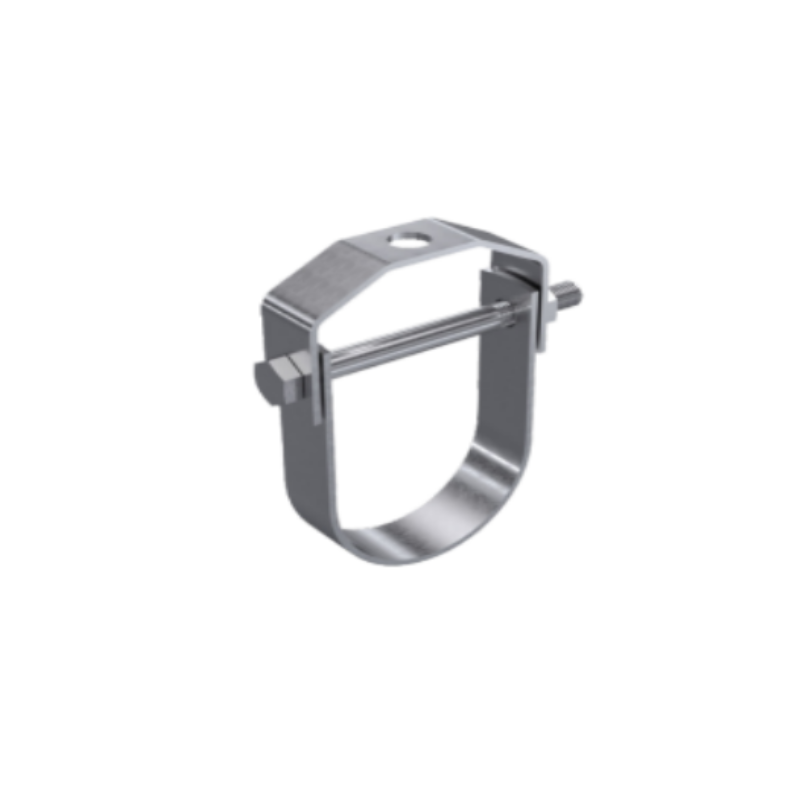

Clevis hanger

Features:

Function: Designed for the suspension of stationary pipe.

Material: Carbon steel

Finish: Electro-galvanized

Approvals:FM Approved / UL Listed

Maximum Temperature: 343°C (650°F)

Ordering: Specify size

Chat Now

Product details

Clevis hanger is a robust and versatile pipe support designed to suspend piping systems from structural elements like beams or ceilings. Made from high-quality materials such as carbon steel, stainless steel, or galvanized steel, it ensures excellent durability and corrosion resistance for various industrial and commercial applications.

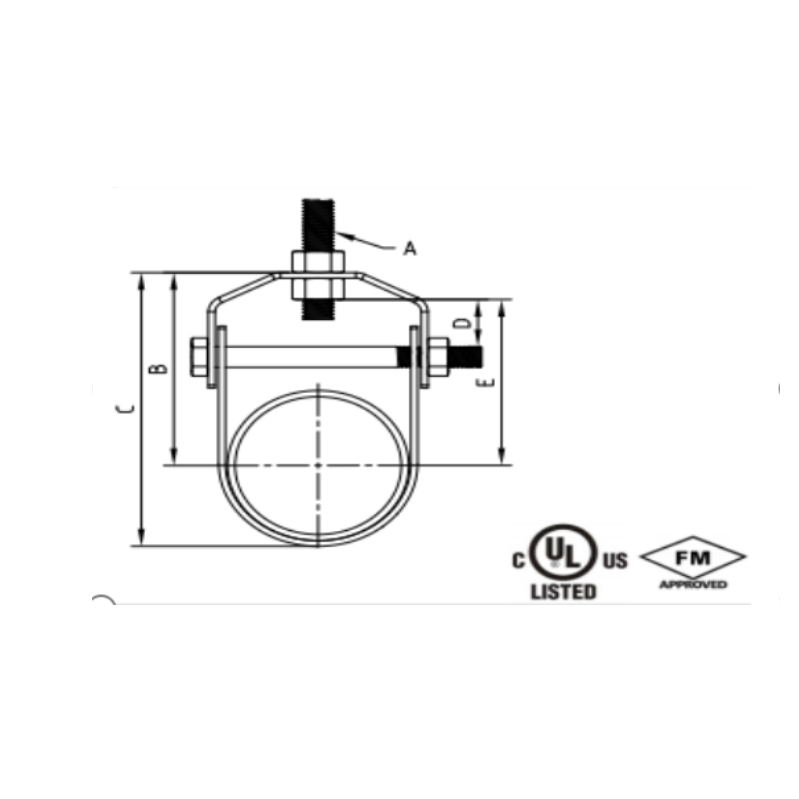

Size	Specification of bolts and Size		A		B	C	D	E	Max.Rec.Load
	m m	in	mm	m m	mm	mm	mm	mm	Lbs	Kg	N
1/2″	M6	1/4″-20UNC	M10	3/8″-16UNC	38.1	51	5.41	27.51	299	135	1334
3/4″	M6	1/4″-20UNC	M10	3/8″-16UNC	47.4	63	7.41	36.81	299	135	1334
1″	M6	1/4″-20UNC	M10	3/8″-16UNC	51.05	70	9.41	40.46	299	135	1334
1-1/4″	M6	1/4″-20UNC	M10	3/8″-16UNC	66.65	90	17.41	56.06	299	135	1334
1-1/2″	M6	1/4″-20UNC	M10	3/8″-16UNC	69.1	95.5	20.91	58.51	299	135	1334
2″	M6	1/4″-20UNC	M10	3/8″-16UNC	77.1	109.5	22.91	66.51	299	135	1334
2-1/2″	M10	3/8″-16UNC	M12	1/2″-13UNC	93.8	133	22.19	79.99	339	153	1512
3″	M10	3/8″-16UNC	M12	1/2″-13UNC	104.85	152	27.19	91.04	419	189	1868
3-1/2″	M10	3/8″-16UNC	M12	1/2″-13UNC	114.6	169	29.29	99.89	499	225	2224
4″	M10	3/8″-16UNC	M16	5/8″-11UNC	130.75	191.5	34.95	112.2	599	270	2668
5″	M12	1/2″-13UNC	M16	5/8″-11UNC	161.75	236.5	46.95	143.2	799	360	3558
6″	M12	1/2″-13UNC	M18	3/4″-10UNC	181.35	270	43.22	159.57	1059	477	4714
8″	M16	5/8″-11UNC	M22	7/8″-9UNC	216.95	331	47.46	192.41	1619	729	7205
10″	M18	3/4″-10UNC	M22	7/8″-9UNC	258.6	400.5	51.56	230.66	2339	1053	10408
12″	M18	3/4″-10UNC	M22	7/8″-9UNC	287.15	454.5	55.56	259.21	3159	1422	14055
