Standard: API 594, EN 12334
Type: Double door wafer check valve
Connection: Wafer type
Body material: Ductile iron
Disc material: Stainless steel
Spring material: Stainless steel
Seat material: EPDM
Pressure class: PN10 / PN16 / Class 125 / Class 150
Temperature range: -20℃ ~ 120℃
Application: Water supply, sewage, fire protection, industrial pipelines

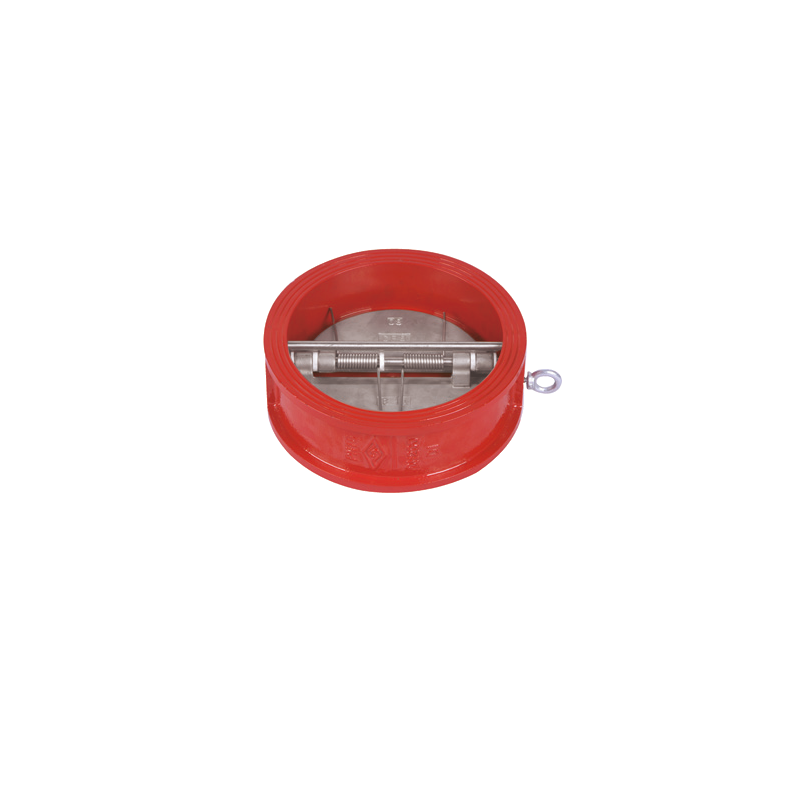

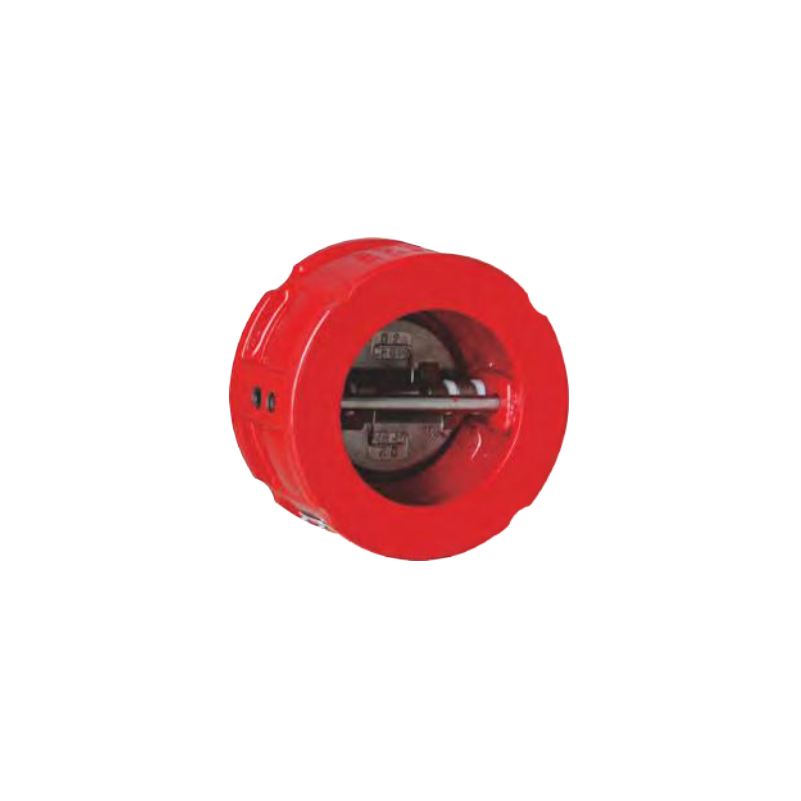

Double door wafer check valve is a flanged resilient swing check valve designed to prevent reverse flow of fluid in pipelines. The valve has an elastic sealing ring to ensure excellent sealing performance, and the swing valve disc can automatically close when the fluid pressure changes, effectively preventing backflow.
This double door wafer check valve is designed to effectively prevent media backflow in pipeline systems. It features a compact wafer structure with dual plate design, quick opening and closing, small flow resistance, and stable performance. It is widely used in water supply, drainage, fire protection, HVAC and industrial pipelines.
| Size | Working Pressure | ||
| Inch | DN | OD (mm) | |
| 2” | 50 | 60.3 | 300 |
| 2-1/2” | 65 | 76.1 | |
| 3” | 80 | 88.9 | |
| 4” | 100 | 114.3 | |
| 5” | 125 | 139.7 | |
| 6” | 150 | 165.1 | |
| 8” | 200 | 219.1 | |
| 10” | 250 | 273 | |
| 12” | 300 | 323.9 | |
| 14” | 350 | 355.6 | |
| 16” | 400 | 406.4 | |
Flanged resilient swing check valve
Grooved resilient swing check valve
Wafer silent check valve
Lug type check valve
Butterfly valve wafer type
Full series check valves and fittings
OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.
The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.
After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.
All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.
Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
