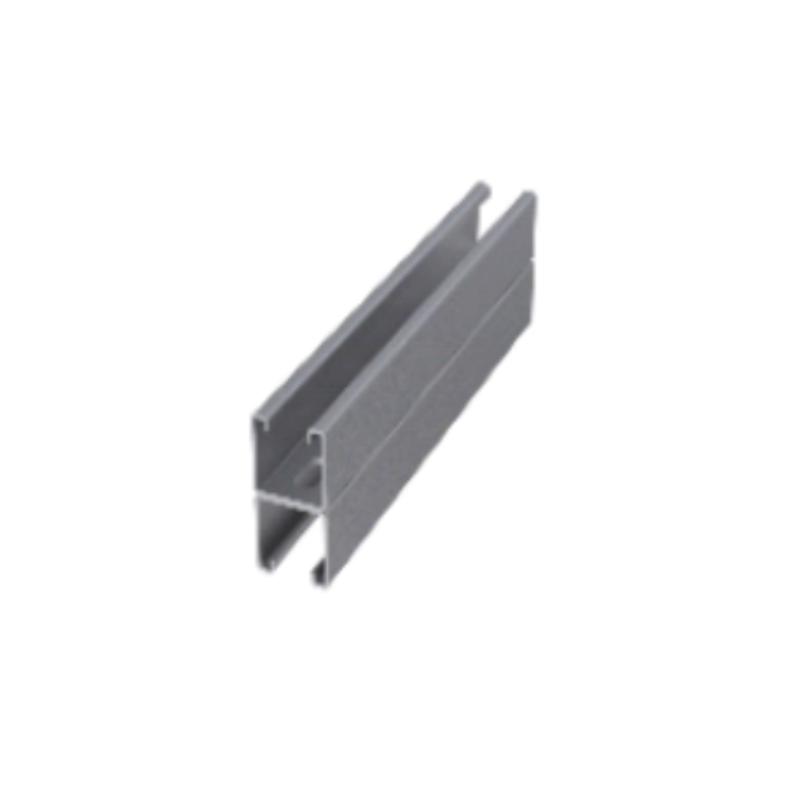

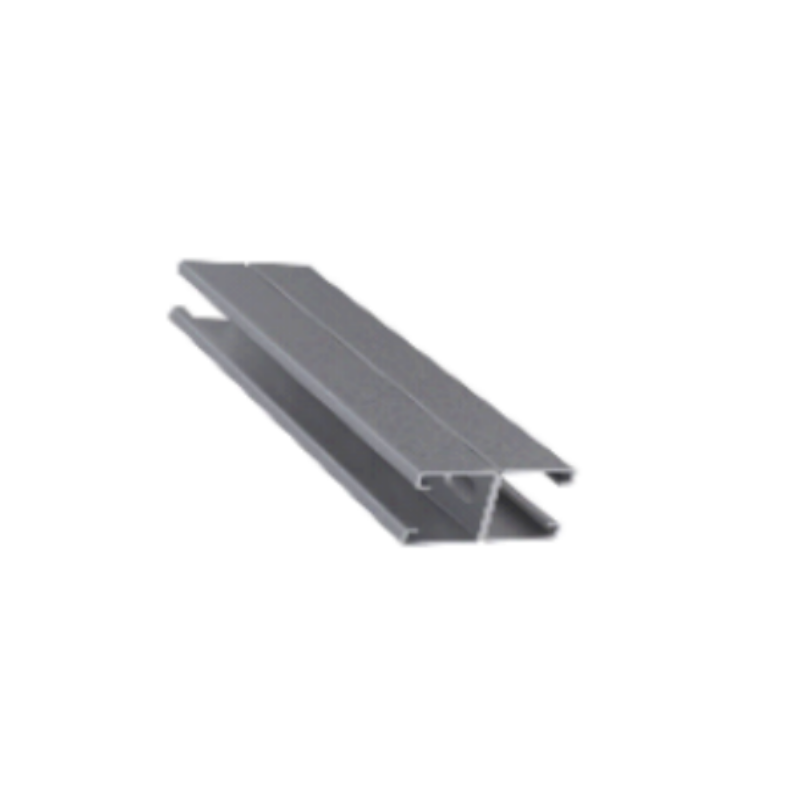

Double-side strut channel

Features:

Molding: Channel steel is manufactured by a series of molding dies or rolls that gradually cold work the strip into the desired channel shape. This method produces a uniform size cross section on the external dimensions

Welding:Use DC resistance welding to ensure the consistency of welding. Combine destructive test to ensure welding quality.

Function:Quickly with steel structure, concrete structure or other structure composition of various forms of support hanger system.

Material:Carbon steel

Finish:Hot-Dip Galvanized

Ordering:Specify Item,Size,length

Chat Now

Product details

Double-sided channel steel is a structural material widely used in construction, electro mechanical installation and industrial equipment support systems. It has high strength and flexibility. Both sides are designed with standard C-shaped grooves, which can adapt to a variety of installation methods and accessories to meet different support and fixing requirements.

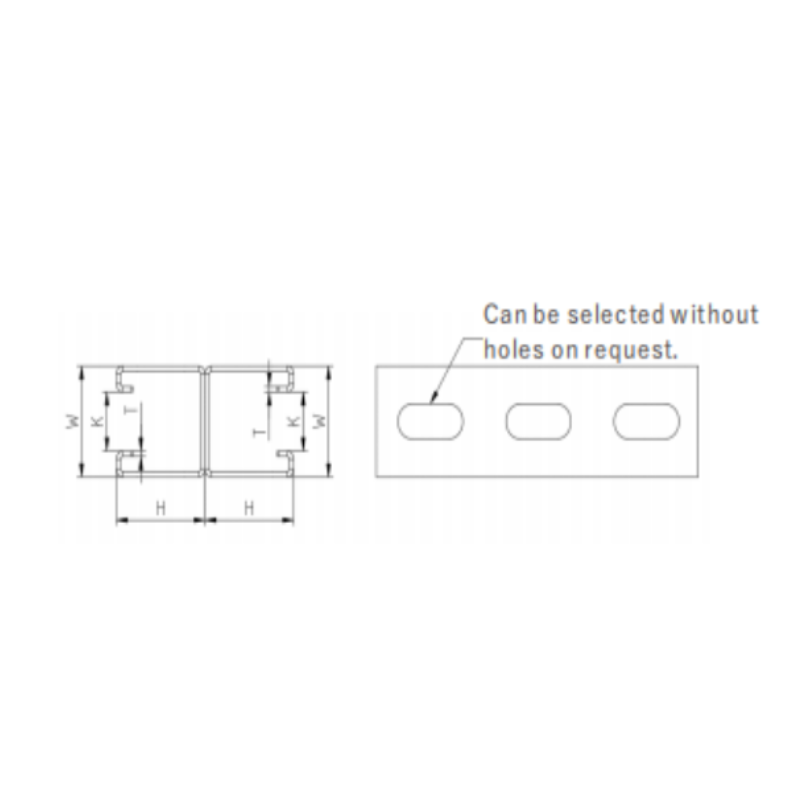

Size	H	W	K	T	L
	m m	mm	mm	mm	mm
21SX2.0	21	41.3	22.3	2	6000
41SX2.0	41	41.3	22.3	2	6000
41SX2.5	41	41.3	22.3	2.5	6000
52SX2.5	52	41.3	22.3	2.5	6000
62SX2.5	62	41.3	22.3	2.5	6000
72SX2.75	72	41.3	22.3	2.75	6000
21SX2.0	21	41.3	22.3	2	6000
41SX2.0	41	41.3	22.3	2	6000
41SX2.5	41	41.3	22.3	2.5	6000
52SX2.5	52	41.3	22.3	2.5	6000
62SX2.5	62	41.3	22.3	2.5	6000
72SX2.75	72	41.3	22.3	2.75	6000

Note: For more information, please contact us.
