Features:
Certificate: FM Approved / UL Listed
ASTM Standard: ASTM A53 / ASTM A795 / ASTM A135
BS EN Standard: BS1387 / EN10255 / EN10224 / EN10217
End: Plain / Beveled / Grooved / Threaded

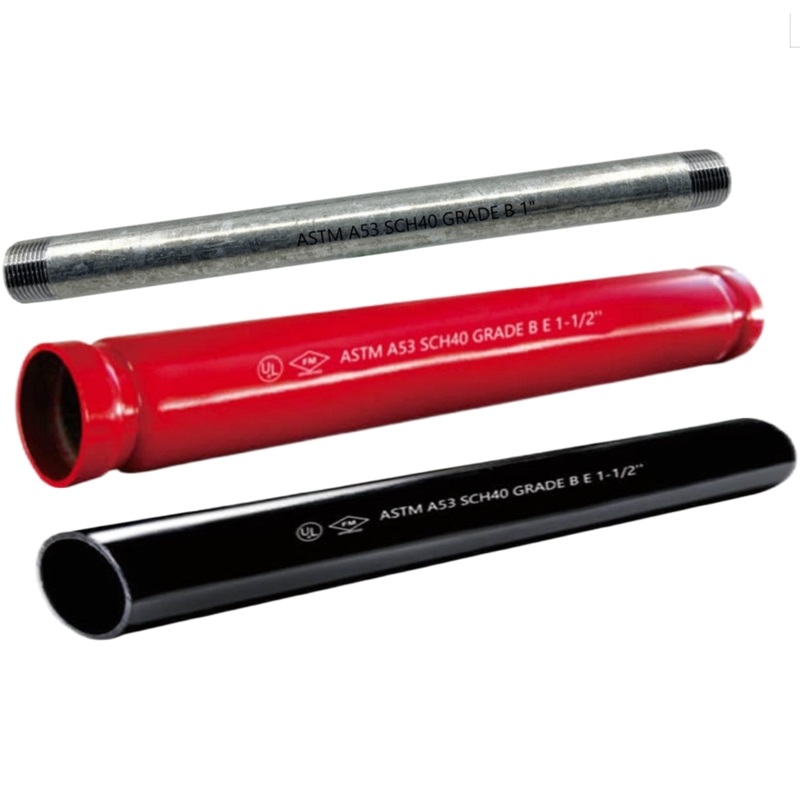

Surface: Original / Black paint / Galvanized / Red paint
Length: 5.8m / 6m / Customized

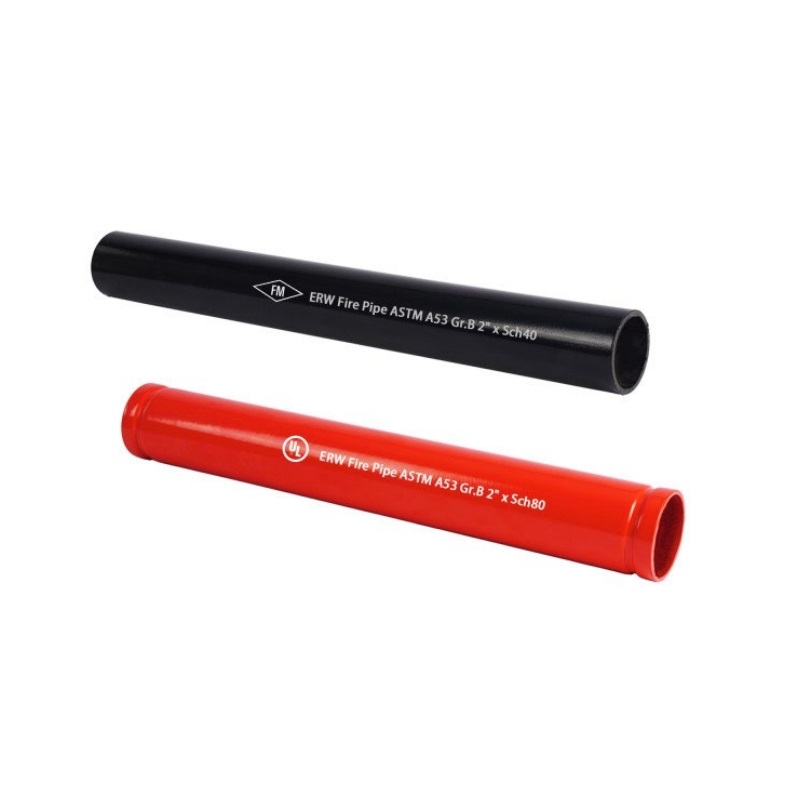

ERW steel pipe is rolled by Cold-formed steel strip or coil and then resistance welding along the seam where the edges meet, without the need for additional welding material. Due to lack of weld metal, the pipe is with Smooth internal surface which can improve flow rates for liquid transportation. ERW steel pipe can be produced as per ASTM/ASME or EN standard. Different standard have the difference out diameter and thickness
ASTM/ASME Standard
| Size | OD SIZE(MM) | SCH 10 Thickness | SCH40 Thickness | STD Thickness |
| 1/2” / DN15 | 21.3 | 2.11 | 2.77 | 2.77 |
| 3/4” / DN20 | 26.7 | 2.11 | 2.87 | 2.87 |
| 1” / DN25 | 33.4 | 2.77 | 3.38 | 3.38 |
| 1-1/4” / DN32 | 42.2 | 2.77 | 3.56 | 3.56 |
| 1-1/2” / D40 | 48.3 | 2.77 | 3.68 | 3.68 |
| 2” / DN50 | 60.3 | 2.77 | 3.91 | 3.91 |
| 2-1/2” / DN65 | 73 | 3.05 | 5.16 | 5.16 |
| 3” / DN80 | 88.9 | 3.05 | 5.49 | 5.49 |
| 4” / DN100 | 114.3 | 3.05 | 6.02 | 6.02 |
| 5” / DN125 | 141.3 | 3.40 | 6.55 | 6.55 |
| 6” / DN150 | 168.3 | 3.40 | 7.11 | 7.11 |
| 8” / DN200 | 219.1 | 3.76 | 8.18 | 8.18 |
| 10” / DN250 | 273 | 4.19 | 9.27 | 9.27 |
| 12” / DN300 | 323.8 | 4.57 | 10.31 | 9.52 |
| 14” / DN350 | 355.6 | 6.35 | 11.13 | 9.52 |
| 16” / DN400 | 406.4 | 6.35 | 12.7 | 9.52 |
| 18” / DN450 | 457 | 6.35 | 14.27 | 9.52 |
| 20” / DN500 | 508 | 6.35 | 15.09 | 9.52 |
| 24” / DN600 | 610 | 6.35 | 17.48 | 9.52 |
EN Standard
| Size | OD SIZE(MM) | Light Type Thickness | Medium Type Thickness | Heavy Type Thickness |
| 1/2” / DN15 | 21.3 | 2.0 | 2.6 | 3.2 |
| 3/4” / DN20 | 26.9 | 2.3 | 2.6 | 3.2 |
| 1” / DN25 | 33.7 | 2.6 | 3.2 | 4.0 |
| 1-1/4” / DN32 | 42.4 | 2.6 | 3.2 | 4.0 |
| 1-1/2” / D40 | 48.3 | 2.9 | 3.2 | 4.0 |
| 2” / DN50 | 60.3 | 2.9 | 3.6 | 4.5 |
| 2-1/2” / DN65 | 76.1 | 3.2 | 3.6 | 4.5 |
| 3” / DN80 | 88.9 | 3.2 | 4.0 | 5.0 |
| 4” / DN100 | 114.3 | 3.6 | 4.5 | 5.4 |
| 5” / DN125 | 139.7 | 5.0 | 5.0 | 5.4 |
| 6” / DN150 | 165.1 | 5.0 | 5.0 | 5.4 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
