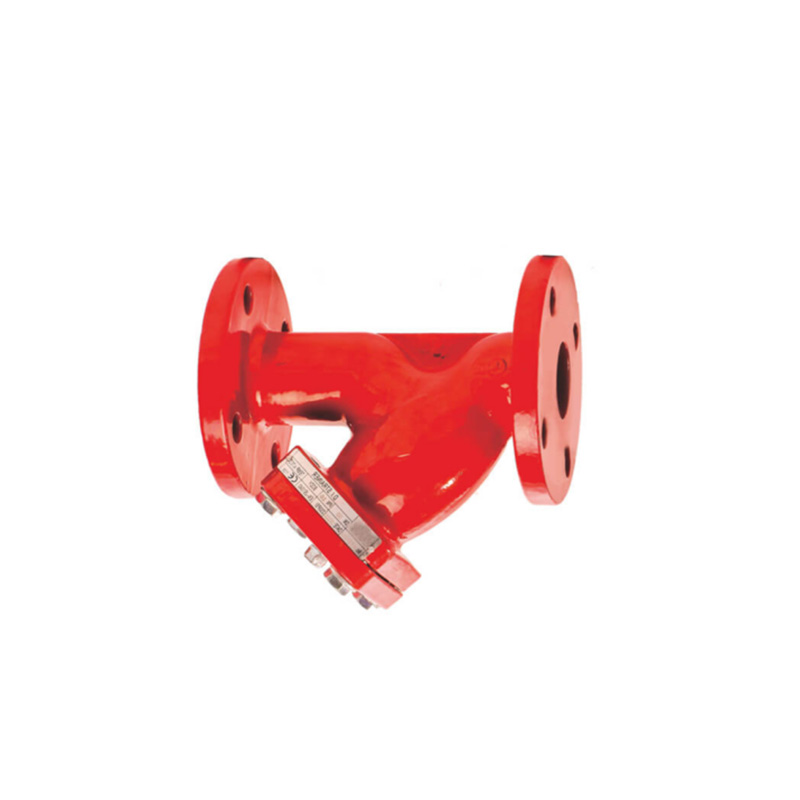

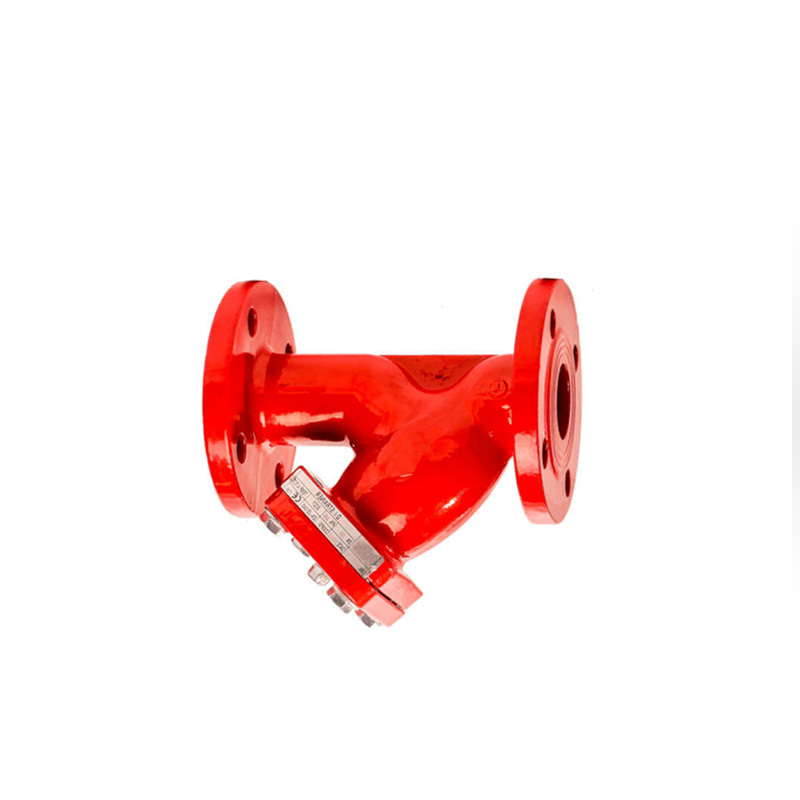

Flanged Y-type strainer

Product Features (Specifications – Plain English List)

Design Standard: ASME B16.34, API 598, EN 12516-1

Connection Type: Flanged (ANSI B16.5, EN 1092-1)

Body Material: Ductile iron (GGG40/50), Cast steel (WCB), Stainless steel (CF8/CF8M)

Screen Material: Stainless steel 304 / 316

Seal Material: EPDM, PTFE, Graphite

Pressure Rating: PN10 / PN16 / PN25 / Class 150 / Class 300

Size Range: DN15 ~ DN600 (1/2″ ~ 24″)

Temperature Range:

Ductile iron: -20°C ~ 120°C

Carbon steel: -30°C ~ 380°C

Stainless steel: -80°C ~ 450°C

Filter Mesh: 18 ~ 480 mesh (customizable)

Applicable Media: Water, oil, steam, gas, chemicals

Chat Now

Product details

Flanged Y-type strainer is an efficient and durable flanged filter. It adopts Y-type structure and high-quality filter screen design, which can effectively remove impurities in the pipeline and protect the pipeline system from damage.

Product Overview

A Flanged Y-type strainer is a pipeline filtering device designed to remove solid particles (such as rust, sand, and scale) from fluid media. It features a Y-shaped body with a removable stainless steel screen, and flanged connections for easy installation between pipeline flanges. It efficiently protects pumps, valves, meters and other downstream equipment from damage or blockage, characterized by low flow resistance, simple structure, and convenient maintenance.

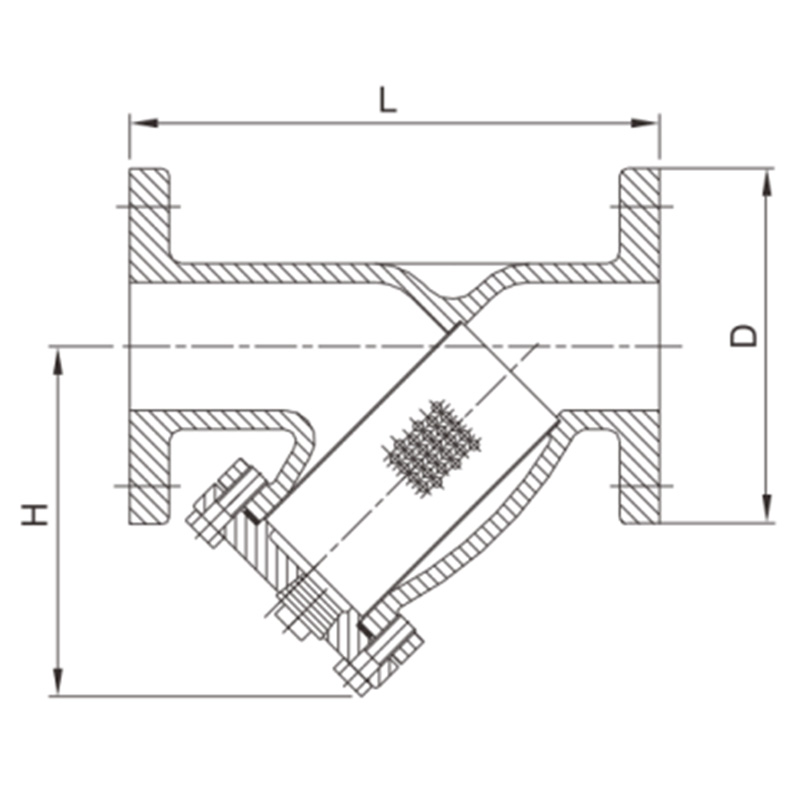

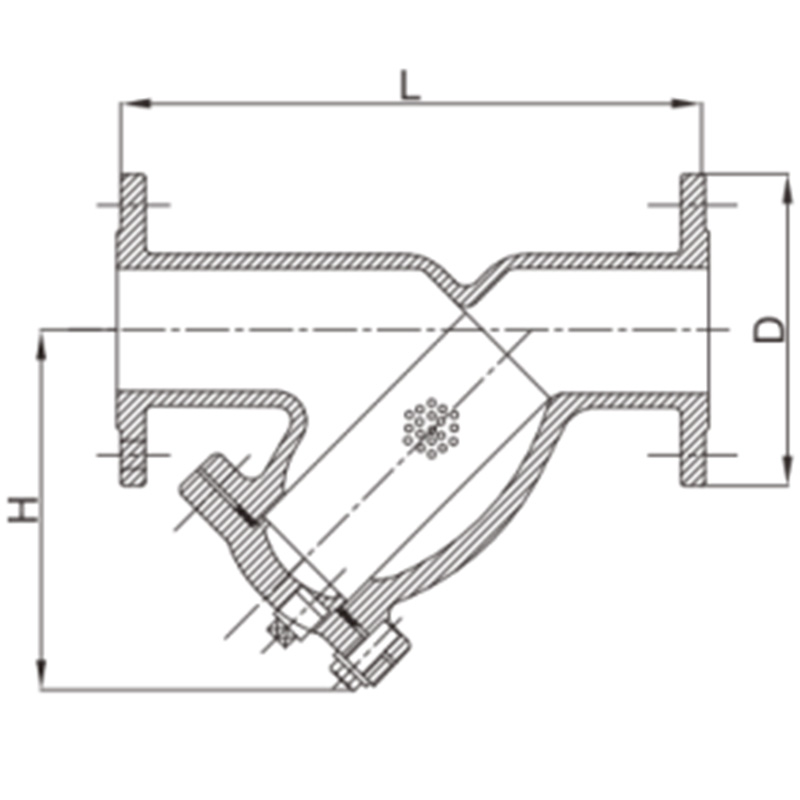

Specifications Table (Dimensions & Parameters)

Size			Working Pressure
Inch	DN	OD (mm)	Working Pressure
2”	50	60.3	300
2-1/2”	65	76.1
3”	80	88.9
4”	100	114.3
5”	125	139.7
6”	150	165.1
8”	200	219.1
10”	250	273
12”	300	323.9

Product Applications

Water supply & drainage systems (municipal, building)
Fire protection piping (sprinkler systems)
HVAC & circulating water systems
Petrochemical & industrial process pipelines
Power plants (water/steam/oil)
Marine & offshore piping
Protection for pumps, meters, control valves

Installation and Maintenance

nstall with the strainer leg (blowdown port) pointing downward for proper sediment collection.
Align flow direction with the arrow marked on the body.
Install before pumps, valves or sensitive equipment.
Isolate and depressurize before opening for cleaning.
Regularly remove and clean/replace the filter screen.
Use the blowdown plug to flush debris without disassembly (if equipped).

Related Products

Grooved Y-type strainer

Flanged T-type strainer

Basket strainer (flanged/grooved)

Double door wafer/flanged check valves

Flanged butterfly / gate / globe valves

Full line of pipe strainers & valves

FAQ

Can you supply OEM?

OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.

What’s the MOQ?

The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.

How about the order processing and lead time?

After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.

What quality will be ensured?

All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.

Can you guide the installation?

Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
