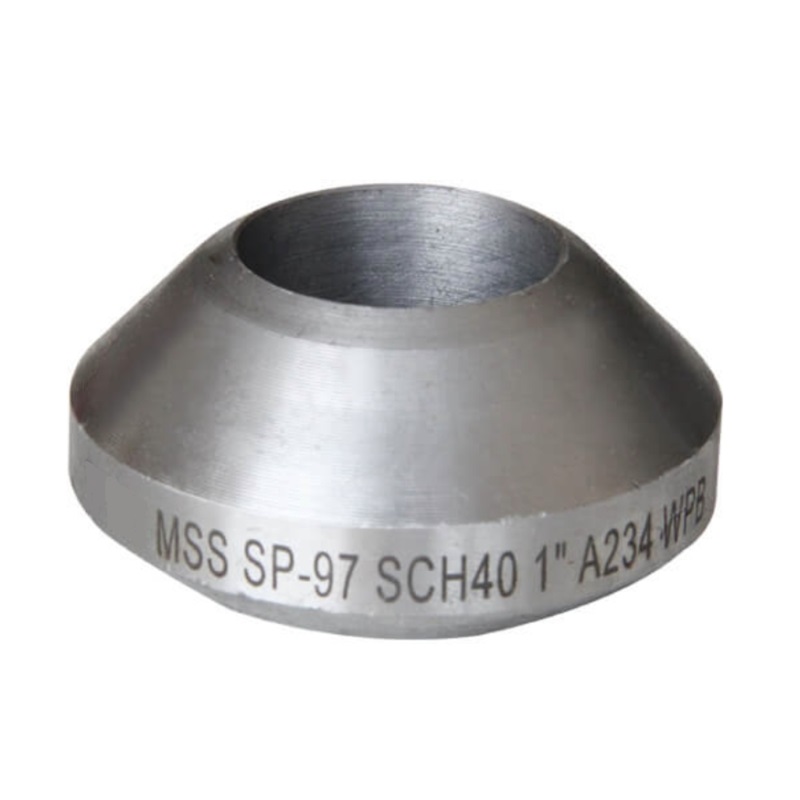

Forged BW outlet (weldolet)

Features:

Certificate: ISO

American Standard: MSS SP-97

Material: Carbon steel ASTM A 105 / Stainless steel

Thickness: STD, XS, Sch160, XXS, etc.

W.pressure: Equal to same seamless pipe

Surface: Original / hot dip galvanized

Chat Now

Product details

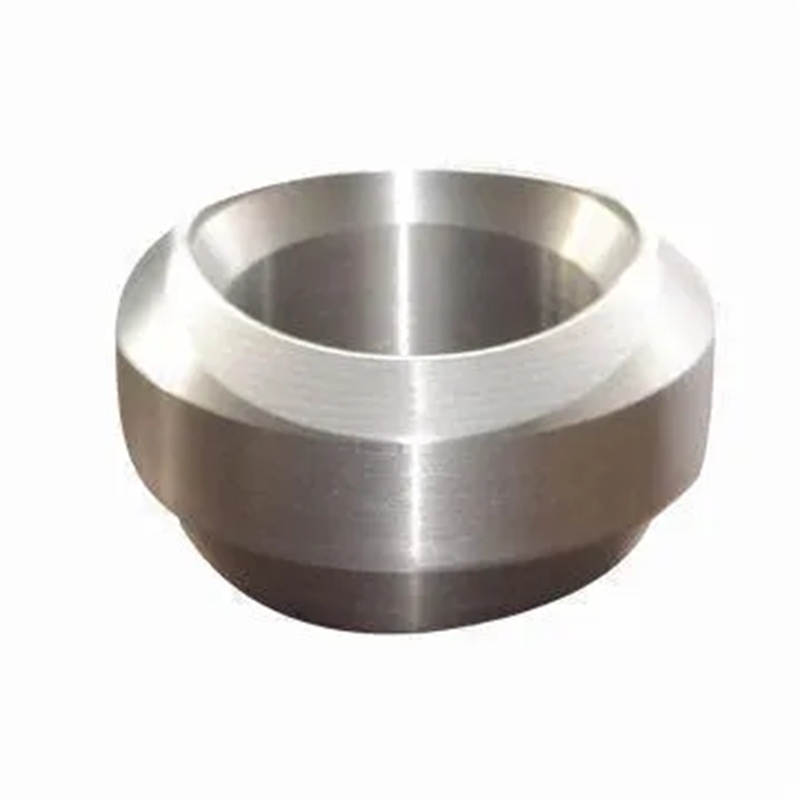

Forged BW outlets, also can be called weldolet. Weldolet provides a transit from the main pipe to the branch pipe and the outlet is furnished with butt weld connection with 90 degree direction.

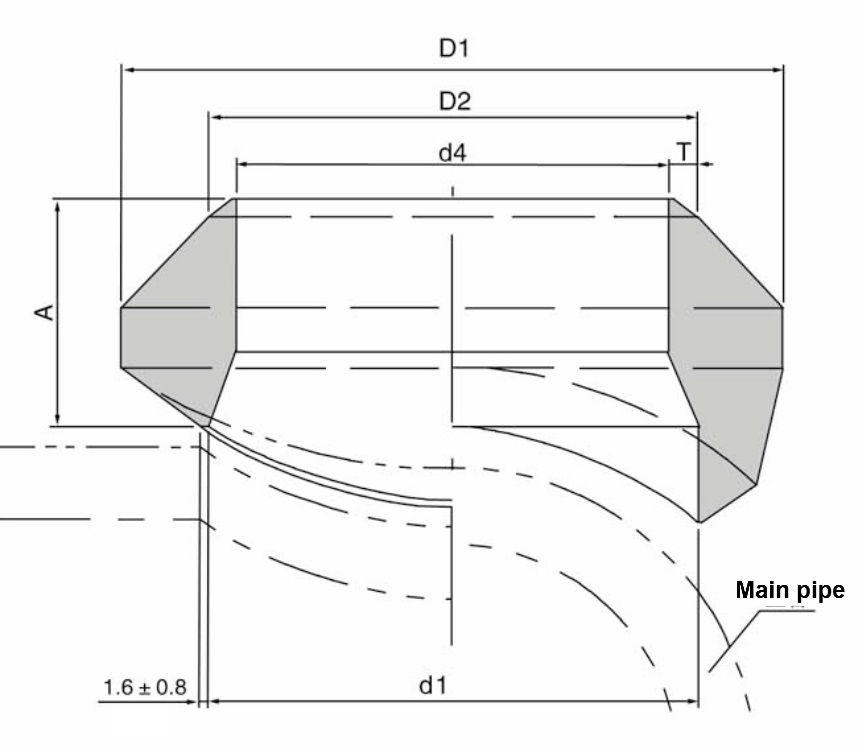

Branch size		Run pipe size		Length A			OD of Fitting D2 min			Cut Hole Dia. d1
NPS	DN	NPS	DN	STD	XS	Sch160	STD	XS	Sch160	STD	XS	Sch160
1/8”	6	1/4”-36”	8-900	16	16	–	24	24	–	16	16	–
1/4”	8	3/8”-36”	10-900	16	16	–	26	26	–	16	16	–
3/8”	10	1/2”-36”	15-900	19	19	–	30	30	–	19	19	–
1/2”	15	3/4”-36”	20-900	19	19	28	36	36	36	24	24	14
3/4”	20	1”-36”	25-900	22	22	32	43	43	46	30	30	19
1”	25	1-1/4”-36”	32-900	27	27	38	55	55	51	36	36	25
1-1/4”	32	1-1/2”-36”	40-900	32	32	44	66	66	63	45	45	33
1-1/2”	40	2”-36”	50-900	33	33	51	74	74	71	51	51	38
2”	50	2-1/2”-36”	65-900	38	38	55	90	90	82	65	65	43
2-1/2”	65	3”-36”	80-900	41	41	62	104	104	98	76	76	54
3”	80	3-1/2”-36”	90-900	44	44	73	124	124	122	93	93	73
4”	100	5”-36”	125-900	51	51	84	154	154	154	120	120	98
5”	125	6”-36”	150-900	57	57	94	187	187	188	141	141	122
6”	150	8”-36”	200-900	60	78	105	213	227	222	170	170	146
8”	200	10”-36”	250-900	70	99	–	265	292	–	220	220	–
10”	250	12”-36”	300-900	78	94	–	323	325	–	275	265	–
12”	300	14”-36”	350-900	86	103	–	379	381	–	325	317	–
14”	350	16”-36”	400-900	89	100	–	411	416	–	357	351	–
16”	400	18”-36”	450-900	94	106	–	465	468	–	408	403	–
18”	450	20”-36”	500-900	97	111	–	522	525	–	459	455	–
20”	500	22”-36”	550-900	102	119	–	573	584	–	508	509	–
24”	600	26”-36”	650-900	116	140	–	690	708	–	614	612	–
