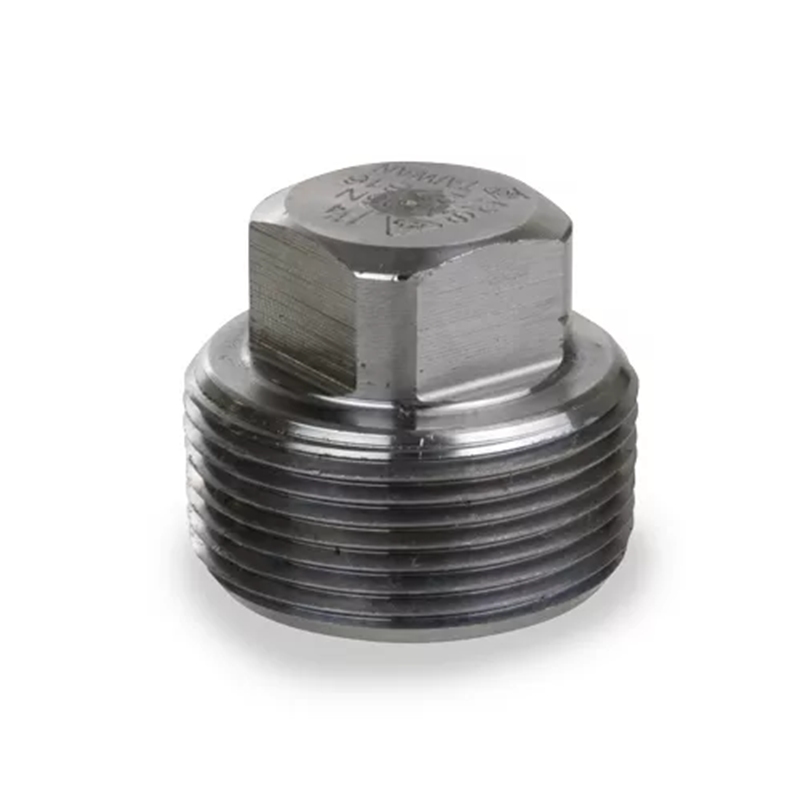

Forged square head plug

Features:

Certificate: ISO

American Standard: ASME B16.11

Material: Carbon steel ASTM A 105 / Stainless steel

Type: Forged fitting

Thread: NPT / BSPT

W.pressure: Class 3000

Surface: Original / hot dip galvanized

Chat Now

Product details

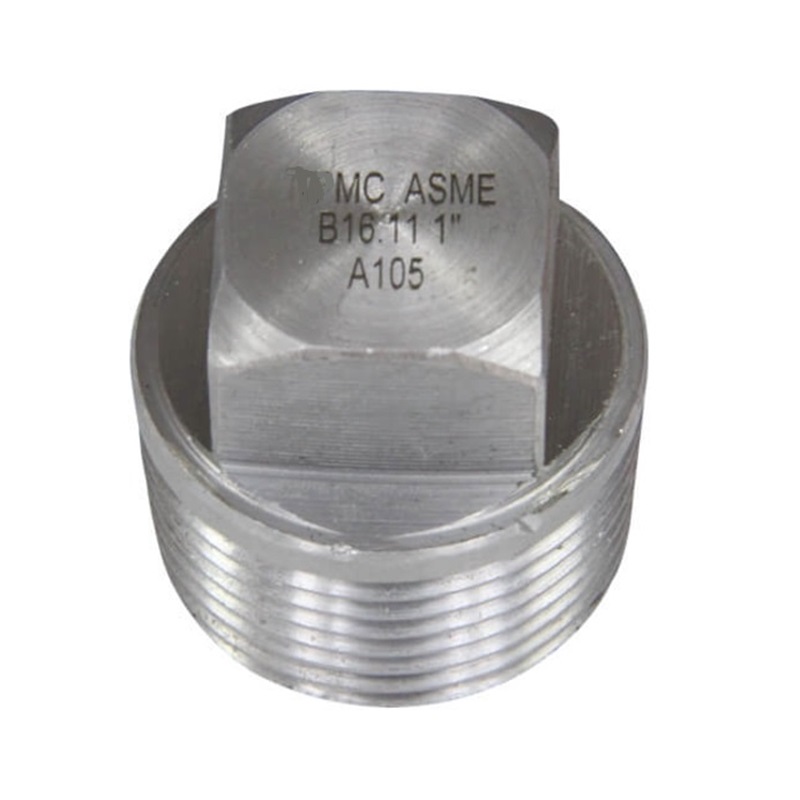

Forged square head plug is used to close the end of a piping system by male threaded in order to block the pipeline and form liquid or gas tight seal. It is with square head and easy to be tightened with a wrench.

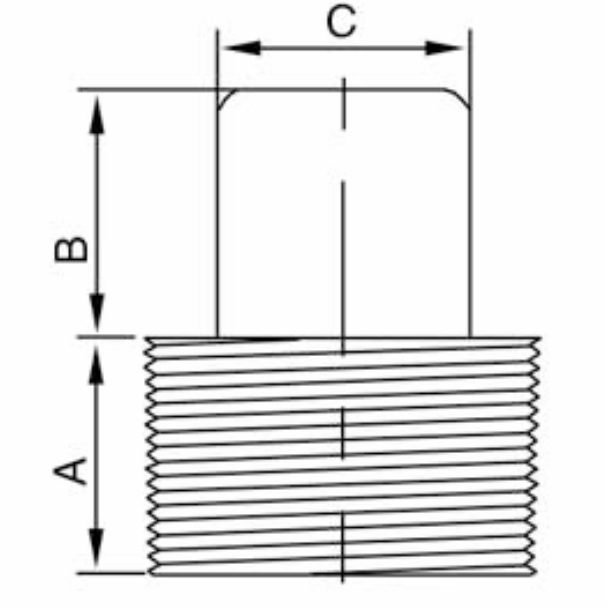

SIZE		Length	Square Height	Width Flats
NPS	DN	A min	H min	C min
1/8”	6	10	6	7
1/4”	8	11	8	10
3/8”	10	13	8	11
1/2”	15	14	10	14
3/4”	20	16	11	16
1”	25	19	13	21
1-1/4”	32	21	14	24
1-1/2”	40	21	16	28
2”	50	22	18	32
2-1/2”	65	27	19	36
3”	80	28	21	41
4”	100	32	25	65
