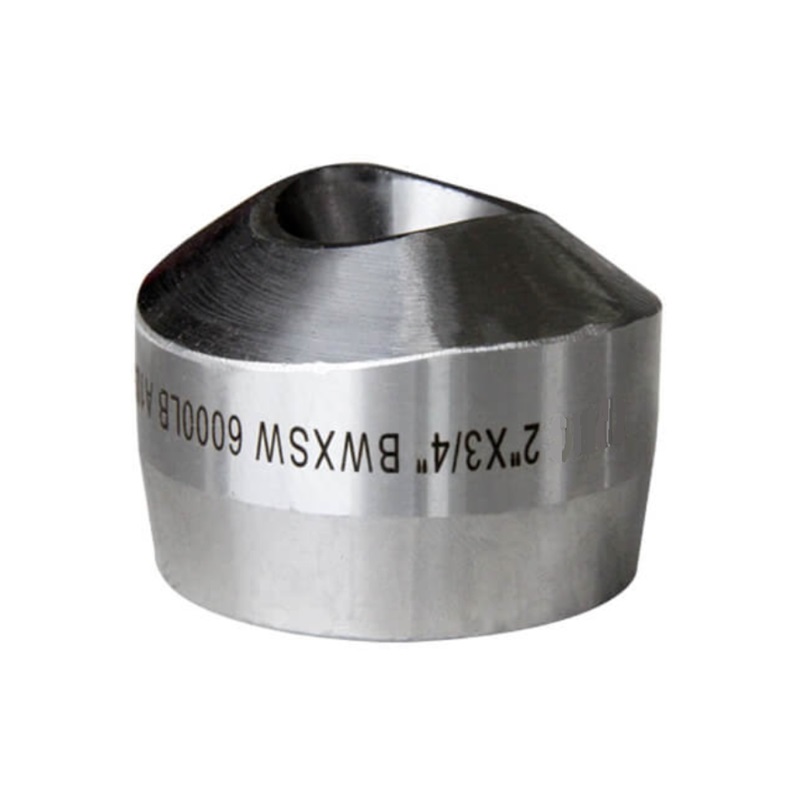

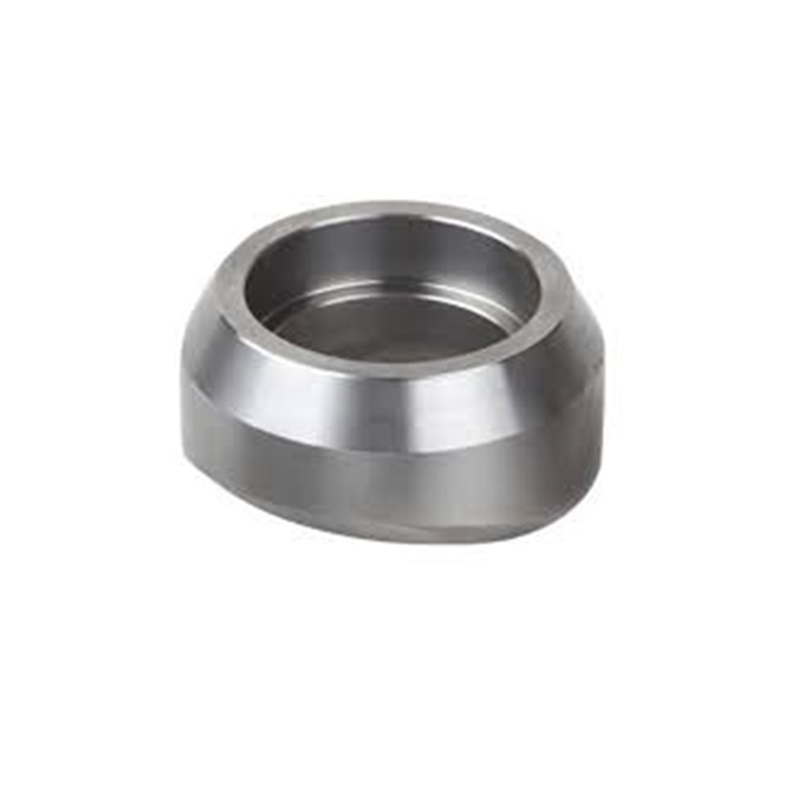

Forged SW outlets (sockolet)

Features:

Certificate: ISO

American Standard: MSS SP-97

Material: Carbon steel ASTM A 105 / Stainless steel

Type: Forged fitting

W.pressure: Class 3000 / 6000

Surface: Original / hot dip galvanized

Chat Now

Product details

Forged SW outlets, also can be called sockolet. Sockolet provides a transit from the main pipe to the branch pipe and the outlet is furnished with socket welding connection with 90 degree direction.

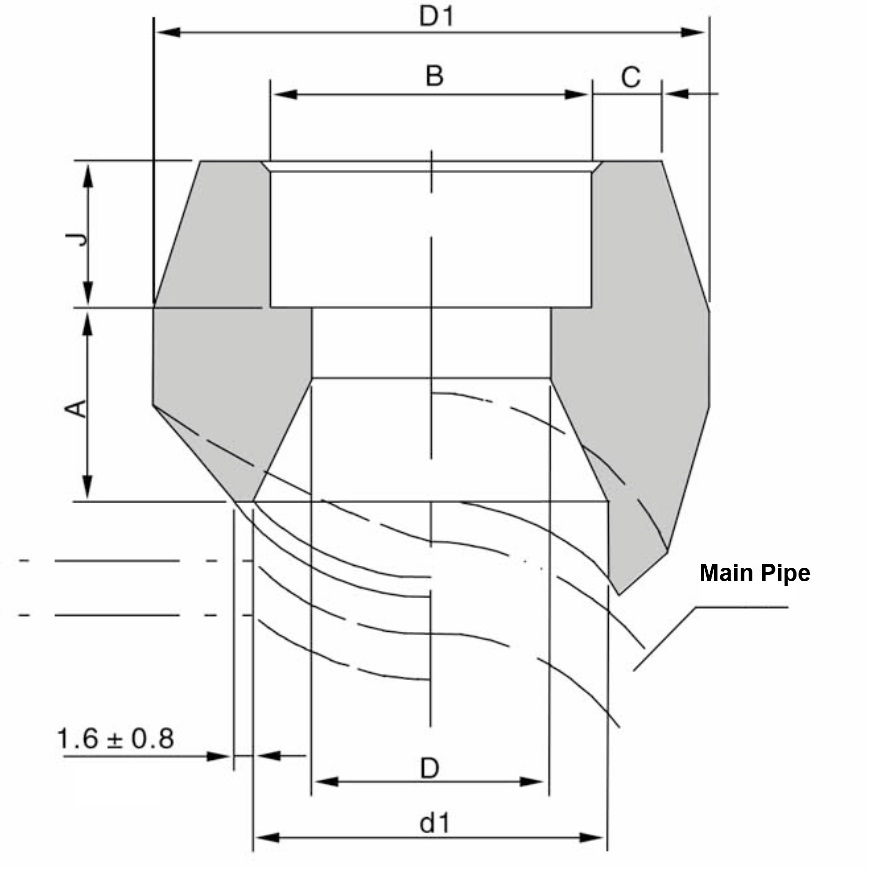

Branch olet size		Run pipe size		Depth of socket J min	Face of fitting to crotch A max		OD of Fitting D1 min		Socket thickness C min		Cut hole Dia. D1
NPS	DN	NPS	DN	Depth of socket J min	3000 LB	6000 LB	3000 LB	6000 LB	3000 LB	6000 LB	3000 LB	6000 LB
1/8”	6	1/4”-36”	8-900	9.5	10	–	27	–	3.18	–	16	–
1/4”	8	3/8”-36”	10-900	9.5	10	–	27	–	3.78	–	16	–
3/8”	10	1/2”-36”	15-900	9.5	13	–	30	–	7.01	–	19	–
1/2”	15	3/4”-36”	20-900	9.5	16	24	38	47	4.67	5.97	24	19
3/4”	20	1”-36”	25-900	12.5	16	25	47	53	4.90	6.96	30	25
1”	25	1-1/4”-36”	32-900	12.5	22	29	56	63	5.69	7.92	36	33
1-1/4”	32	1-1/2”-36”	40-900	12.5	22	30	66	74	6.07	7.92	45	38
1-1/2”	40	2”-36”	50-900	12.5	24	32	75	83	6.35	8.92	51	49
2”	50	2-1/2”-36”	65-900	16.0	24	37	90	104	6.93	10.92	65	59
2-1/2”	65	3”-36”	80-900	16.0	25	–	105	–	8.76	–	76	–
3”	80	4”-36”	100-900	16.0	30	–	124	–	9.52	–	94	–
4”	100	5”-36”	125-900	16.0	30	–	154	–	10.7	–	121	–
