Features:
Certificate: ISO
American Standard: MSS SP-83
Material: Carbon steel ASTM A 105 / Stainless steel
Type: Forged fitting
W.pressure: Class 3000
Surface: Original / hot dip galvanized

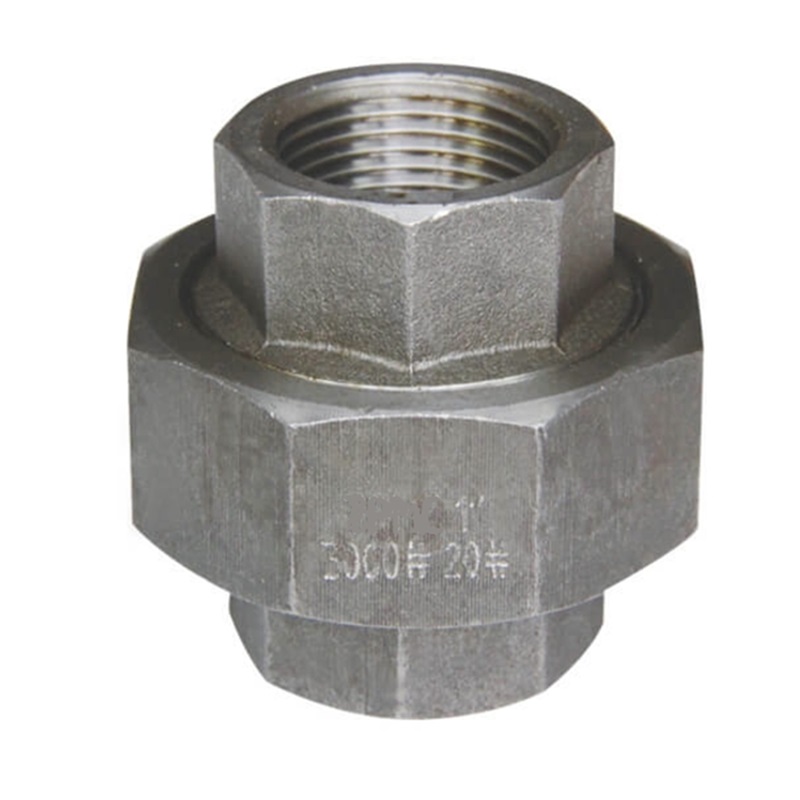

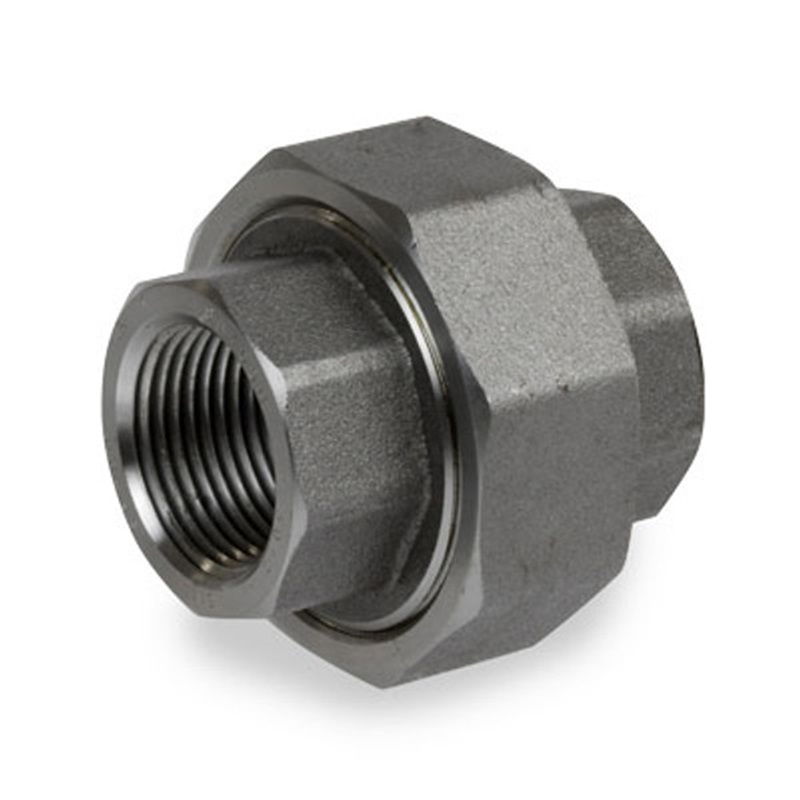

Forged thread union is used to connect two pipes or components in a piping system by threaded connection while allowing easy disconnection and reassembly

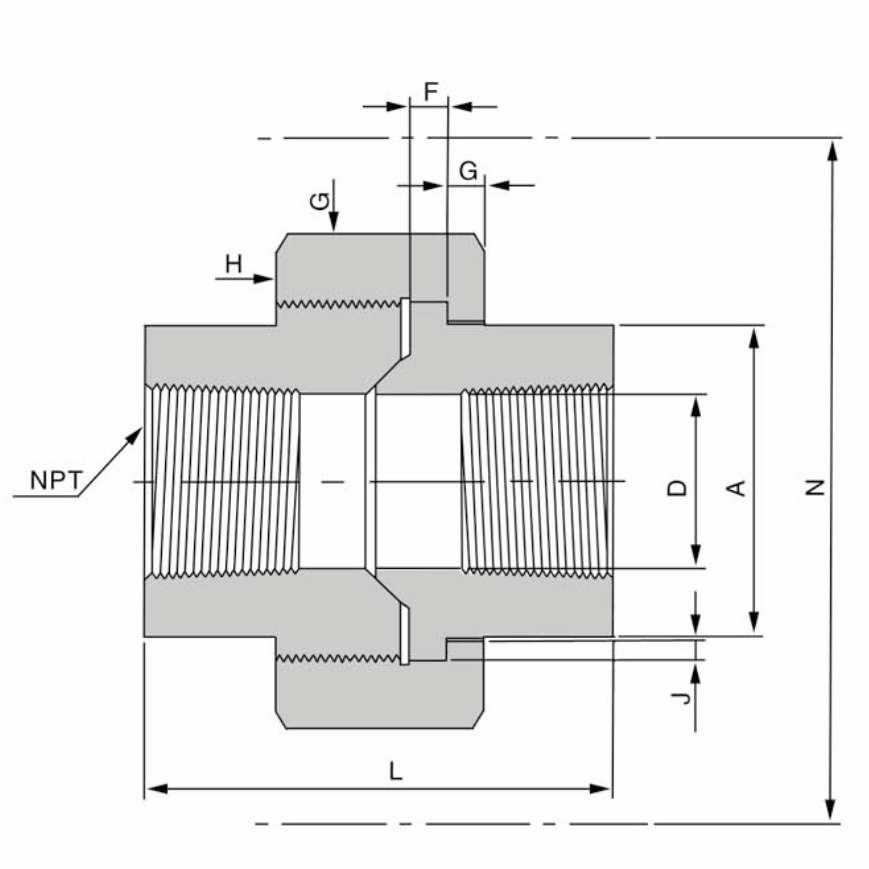

| Size | Pipe End |
Wall | Bore | Male Flange | Nut | THRD Per Inch | Bearing | Length Assem | Clear Asserm Nut | |
| DN | NPS | A min | C min | D | F min | G min | H | J min | L min | N |
| 6 | 1/8” | 14.7 | 2.4 | 8.4
6.4 |
3.2 | 3.2 | 16 | 1.2 | 41.4 | 51 |
| 8 | 1/4” | 19.1 | 3.0 | 11.1
9.4 |
3.2 | 3.2 | 16 | 1.2 | 41.4 | 51 |
| 10 | 3/8” | 22.9 | 3.2 | 14.3
13.5 |
3.4 | 3.4 | 14 | 1.4 | 46.0 | 56 |
| 15 | 1/2” | 27.7 | 3.7 | 17.9
17.1 |
3.7 | 3.7 | 14 | 1.5 | 49.0 | 59 |
| 20 | 3/4” | 33.5 | 3.9 | 23.0
21.4 |
4.1 | 4.1 | 11 | 1.7 | 56.9 | 66 |
| 25 | 1” | 41.5 | 4.5 | 29.0
27.7 |
4.6 | 4.4 | 11 | 1.9 | 62.0 | 79 |
| 32 | 11/4” | 50.5 | 4.9 | 37.7
35.4 |
5.3 | 5.2 | 10 | 2.1 | 71.1 | 94 |
| 40 | 11/2” | 57.2 | 5.1 | 43.5
41.2 |
5.8 | 5.6 | 10 | 2.3 | 76.5 | 112 |
| 50 | 2 “ | 70.1 | 5.5 | 55.6
52.1 |
6.6 | 6.4 | 10 | 2.7 | 86.1 | 132 |
| 65 | 21/2” | 85.3 | 7.0 | 66.3
64.3 |
7.5 | 7.1 | 8 | 3.1 | 102.4 | 150 |
| 80 | 3” | 102.4 | 7.6 | 82.6
77.3 |
8.3 | 8.0 | 8 | 1.9 | 109.0 | 176 |
