Grooved 11.25° Elbow ASTM A536 AWWA C606 Ductile Iron Pipe Fitting

Product Features (Specifications – Plain English List)

Standard: UL/FM, GB standards

Type: Grooved 11.25° Elbow ASTM A536 AWWA C606 Ductile Iron

Material: Ductile iron

Connection type: Grooved end

Pressure class: 1.6MPa / 2.5MPa

Temperature range: -20℃ ~ 120℃

Surface treatment: Red painted / Epoxy coated

Application: Water, fire fighting sprinkler, HVAC, industrial fluid pipelines

Chat Now

Product details

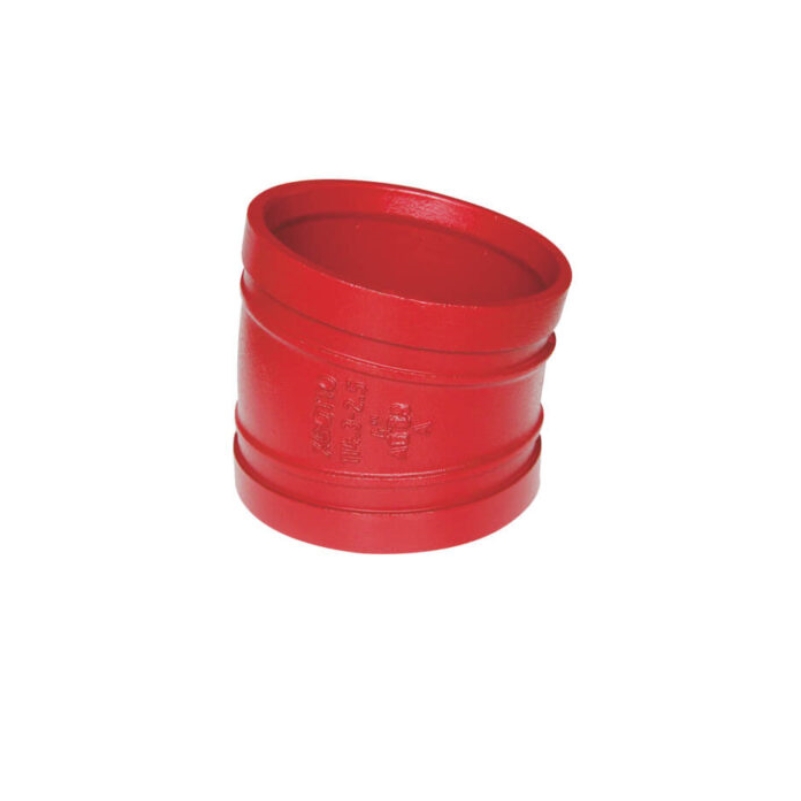

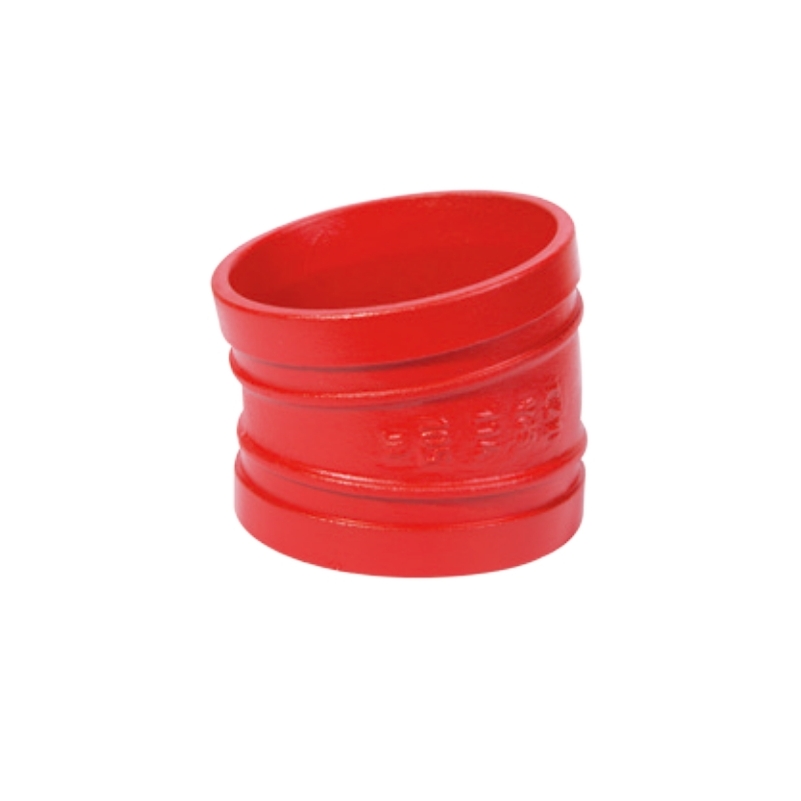

Grooved 11.25°elbow is a pipe fitting designed to create a 11.25 degree turn in a piping system while using a grooved connection for easy assembly and secure sealing.

Product Overview

This grooved 11.25° Elbow ASTM A536 AWWA C606 Ductile Iron is designed for micro-angle pipeline steering and precise direction adjustment in fire protection, water supply and industrial piping systems. With grooved end connection, it allows fast installation, disassembly and maintenance, greatly improving construction efficiency. Made of high-strength ductile iron, it features stable pressure resistance, reliable sealing and long service life, widely used in fine pipeline layout and low-angle turning.

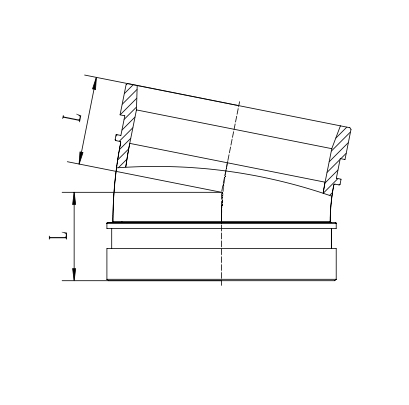

Specifications Table (Dimensions & Parameters)

SIZE		OD SIZE	L (MM)
1 1/4”	DN32	42.4	35
1 1/2”	DN40	48.3	35
2”	DN50	60.3	35
2 1/2”	DN65	73	38
2 1/2”	DN65	76.1	38
3”	DN80	88.9	38
4”	DN100	108	44
4”	DN100	114.3	44
5”	DN125	133	51
5”	DN125	139.7	51
6”	DN150	159	51
6”	DN150	165.1	51
6”	DN150	168.3	51
8”	DN200	219.1	51

Product Applications

Micro-angle steering in fire sprinkler piping systems
Precise direction adjustment in building water supply and drainage pipelines
Fine layout optimization in HVAC circulating water pipelines
Industrial fluid pipeline low-angle turning and alignment
Urban pipe network, fire protection engineering and construction piping

Installation and Maintenance

Inspect the Elbow ASTM A536 AWWA C606 Ductile Iron for cracks, deformation and complete grooves before installation
Clean the grooves and install gasket correctly in place
Connect with coupling clamp and tighten bolts evenly and symmetrically
Do not over-tighten to avoid damage to fittings or gaskets
Conduct pressure test after installation to check for leakage
Regularly check sealing condition and clamp fastening status
