Grooved butterfly valve

Product Features (Specifications – Plain English List)

Standards: MSS SP-67, API 609, BS 5155, AWWA C606, UL/FM Approved

Size Range: NPS 2″–12″ (DN50–DN300)

Connection: Grooved end (clamp type)

Body Material: Ductile iron (ASTM A536 65-45-12)

Disc Material: Ductile iron with EPDM coating

Seat Material: EPDM, NBR, FKM (Viton)

Pressure Class: PN10 / PN16 (150PSI / 200PSI)

Temperature Range: -20°C ~ 80°C (-4°F ~ 176°F)

Operation: Lever handle, worm gear, electric/pneumatic actuator

Coating: Epoxy powder coated (red/blue)

Chat Now

Product details

Grooved butterfly valve is an efficient and energy-saving fluid control valve suitable for various pipeline systems. The valve adopts a slot connection method, providing a fast and reliable installation method, and is suitable for regulating and cutting off fluid flow in large and medium-sized pipeline systems. Its butterfly structure design makes the valve small in size and light in weight, and can provide efficient flow control under low pressure conditions.

Product Overview

This grooved butterfly valve is a lightweight, compact flow control valve designed for quick installation and reliable sealing. It features a concentric, bidirectional soft-seal design for bubble-tight shutoff and 90° quarter-turn operation. The grooved end connection enables fast, weld-free assembly and disassembly using standard couplings, saving time and labor. Ideal for fire protection, HVAC, and water distribution systems, it offers low torque operation, minimal pressure loss, and excellent vibration absorption.

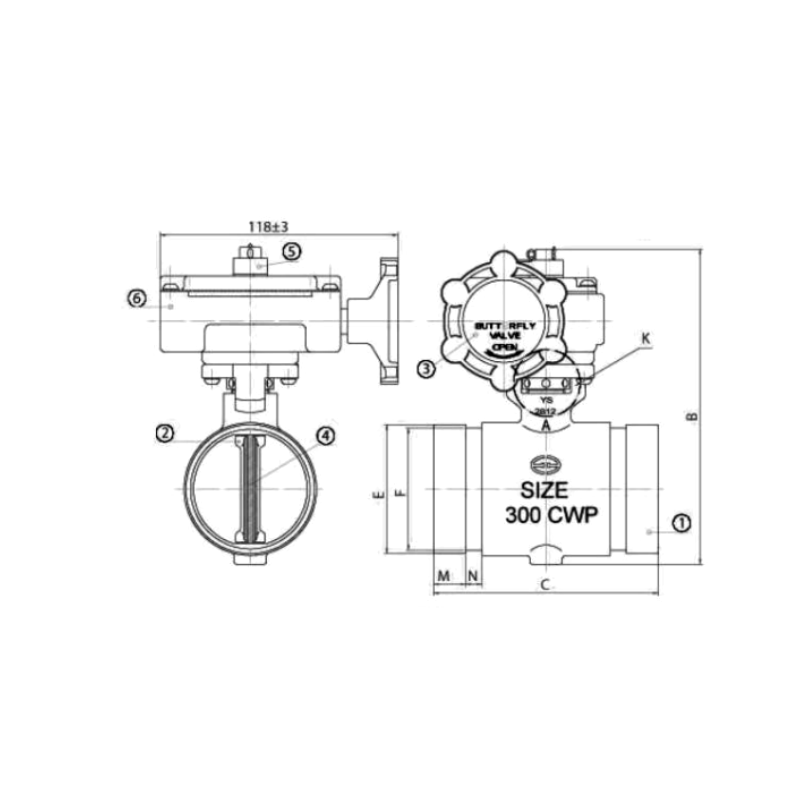

Specifications Table (Dimensions & Parameters)

Inch	Size
1″	25
1 1/4″	32
1 1/2″	40
2″	50
2 1/2″	65

Product Applications

Fire protection sprinkler and standpipe systems
HVAC cooling/heating water pipelines
Municipal water supply and drainage networks
Industrial process water and utility lines
Commercial and residential building piping systems

Installation and Maintenance

Inspect valve body, grooves, and seals for damage before installation.
Align pipe grooves with valve ends and secure with approved couplings.
Operate valve fully open/closed to confirm smooth movement and tight sealing.
Avoid over-tightening couplings to prevent distortion or leakage.
Periodically inspect seals and grooves for wear; replace damaged parts promptly.
Keep the valve free of debris and ensure unobstructed operation.

FAQ

Can you supply OEM?

OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.

What’s the MOQ?

The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.

How about the order processing and lead time?

After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.

What quality will be ensured?

All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.

Can you guide the installation?

Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
