Standard: UL/FM, GB standards
Type: Grooved equal Cross ASTM A536 AWWA C606 Ductile Iron
Material: Ductile iron
Connection type: Grooved end
Pressure class: 1.6MPa / 2.5MPa
Temperature range: -20℃ ~ 120℃
Surface treatment: Red painted / Epoxy coated
Application: Water, fire fighting sprinkler, HVAC, industrial fluid pipelines

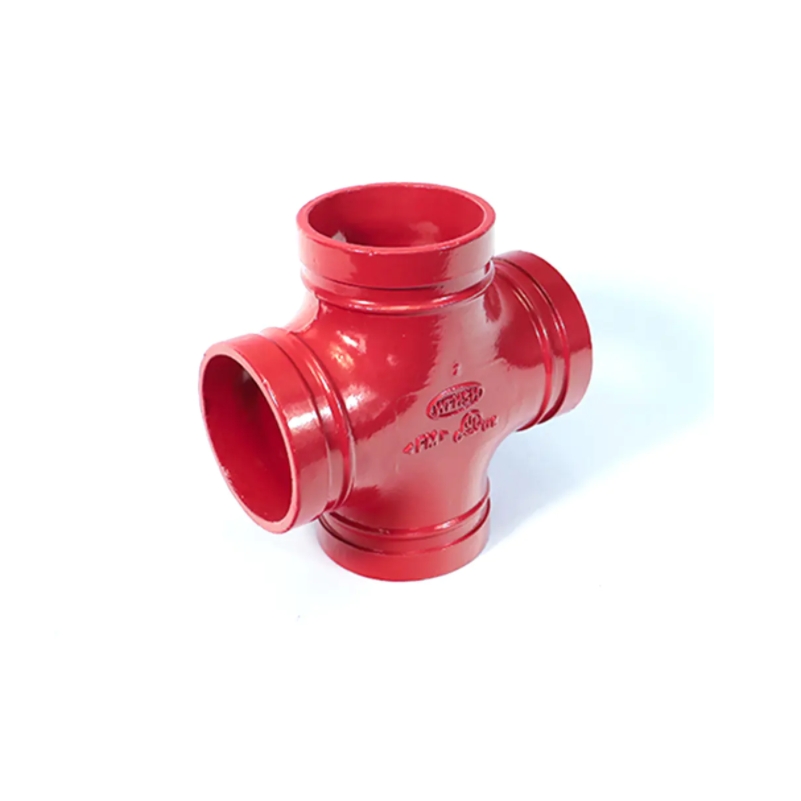

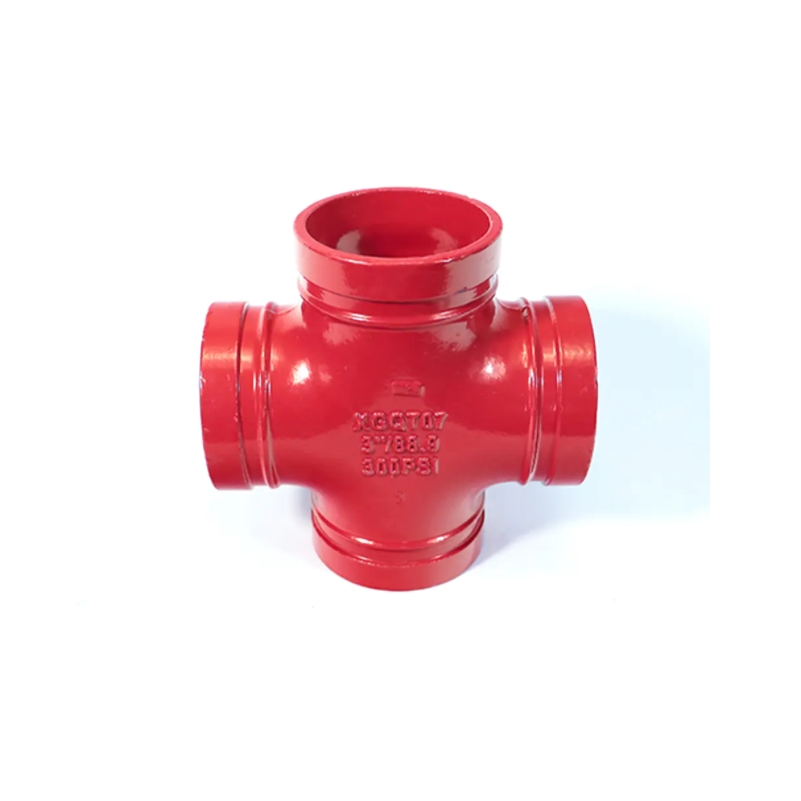

Grooved equal cross has a cross shape to get its name. The branch outlet is the same size as the main outlet, and it is used to create two branch pipelines to 90 degree direction.
This grooved equal Cross ASTM A536 AWWA C606 Ductile Iron is used for four-way pipeline branching and connection in fire protection, water supply and industrial piping systems. Adopting grooved end structure, it realizes fast installation and disassembly, effectively improving construction efficiency. Made of high-strength ductile iron, it features stable pressure resistance, reliable sealing and long service life, widely used in medium distribution and multi-direction pipeline connection.

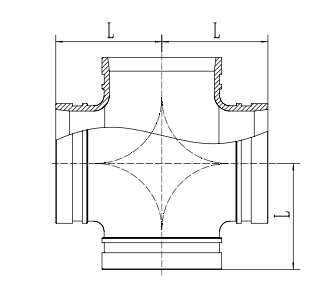

| SIZE | OD SIZE | L (MM) | |
| 1″ | DN25 | 33.7 | 57 |
| 1 1/4” | DN32 | 42.4 | 60 |
| 1 1/2” | DN40 | 48.3 | 60 |
| 2” | DN50 | 60.3 | 70 |
| 2 1/2” | DN65 | 73 | 76 |
| 2 1/2” | DN65 | 76.1 | 76 |
| 3” | DN80 | 88.9 | 86 |
| 4” | DN100 | 108 | 102 |
| 4” | DN100 | 114.3 | 102 |
| 5” | DN125 | 133 | 124 |
| 5” | DN125 | 139.7 | 124 |
| 5” | DN125 | 141.3 | 124 |
| 6” | DN150 | 159 | 140 |
| 6” | DN150 | 165.1 | 140 |
| 6” | DN150 | 168.3 | 140 |
| 8” | DN200 | 219.1 | 173 |
| 10” | DN250 | 273 | 215 |
| 12” | DN300 | 323.9 | 245 |
Grooved equal tee
Grooved reducing tee
Grooved 90° elbow
Grooved 45° elbow
Grooved coupling
Full series of grooved pipe fittings
OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.
The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.
After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.
All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.
Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
