Standard: ANSI B16.10, EN 12516
Type: Grooved Y-type strainer
Connection: Grooved ends
Body material: Ductile iron
Screen material: Stainless steel 304
Seal material: EPDM
Pressure class: PN10 / PN16 / Class 150
Temperature range: -20℃ ~ 120℃
Application: Water supply, fire protection, industrial pipelines

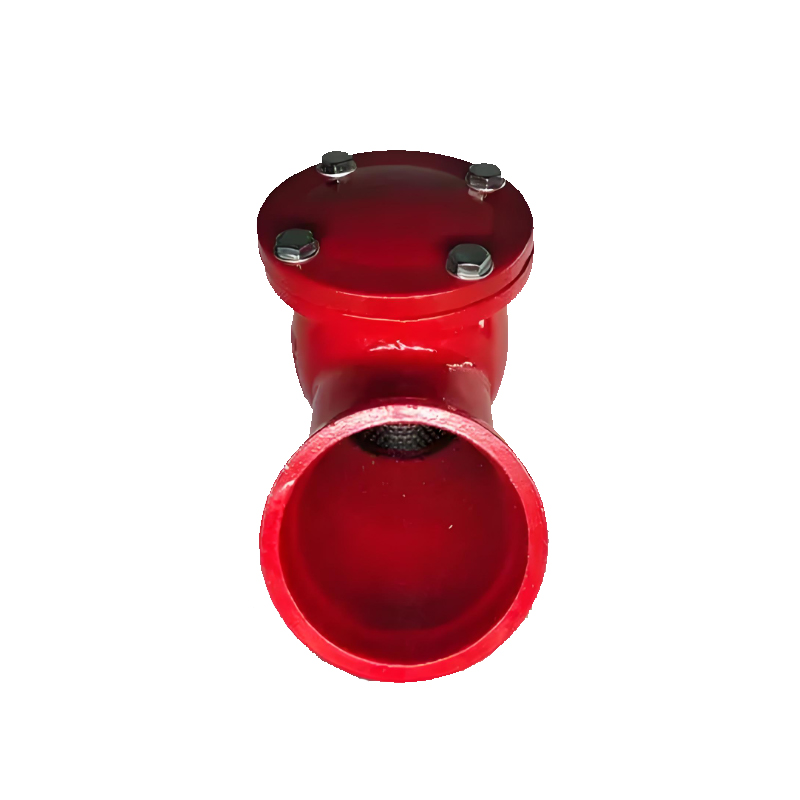

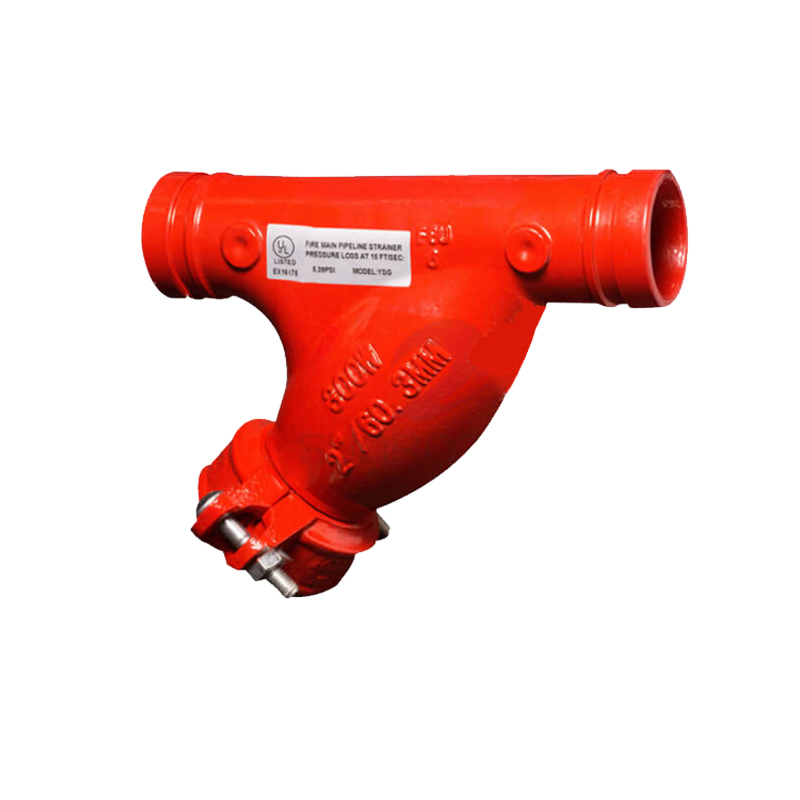

Grooved Y-type strainer is a mechanical device used in piping systems to remove debris, dirt, and particles from the flow of liquid or gas. It features a Y-shaped body with a mesh or perforated straining element inside, which captures contaminants while allowing clean fluid to pass through.
This grooved Y-type strainer is mainly used to filter out solid impurities such as sediment, rust and scale in pipelines, effectively protecting pumps, valves, meters and other precision equipment. It adopts grooved connection for quick installation and disassembly, with compact structure, large filtering area, small flow resistance and convenient cleaning.
| Size | Working Pressure | ||
| Inch | DN | OD (mm) | |
| 2” | 50 | 60.3 | 300 |
| 2-1/2” | 65 | 76.1 | |
| 3” | 80 | 88.9 | |
| 4” | 100 | 114.3 | |
| 5” | 125 | 139.7 | |
| 6” | 150 | 165.1 | |
| 8” | 200 | 219.1 | |
| 10” | 250 | 273 | |
| 12” | 300 | 323.9 | |
Flanged Y-type strainer
Grooved resilient swing check valve
Double door grooved check valve
Grooved butterfly valve
Grooved gate valve
Full series grooved valves and fittings
OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.
The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.
After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.
All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.
Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
