Features:
Function: Designed for the suspension of stationary piping systems. The “T” slot in the hanger permits the side bolt to be installed after installation and setting of pipe. The side hole permits optional wall mounting.
Material:Carbon steel
Finish:Electro-galvanized
Maximum Temperature: 343°C (650°F)
Ordering:Specify size

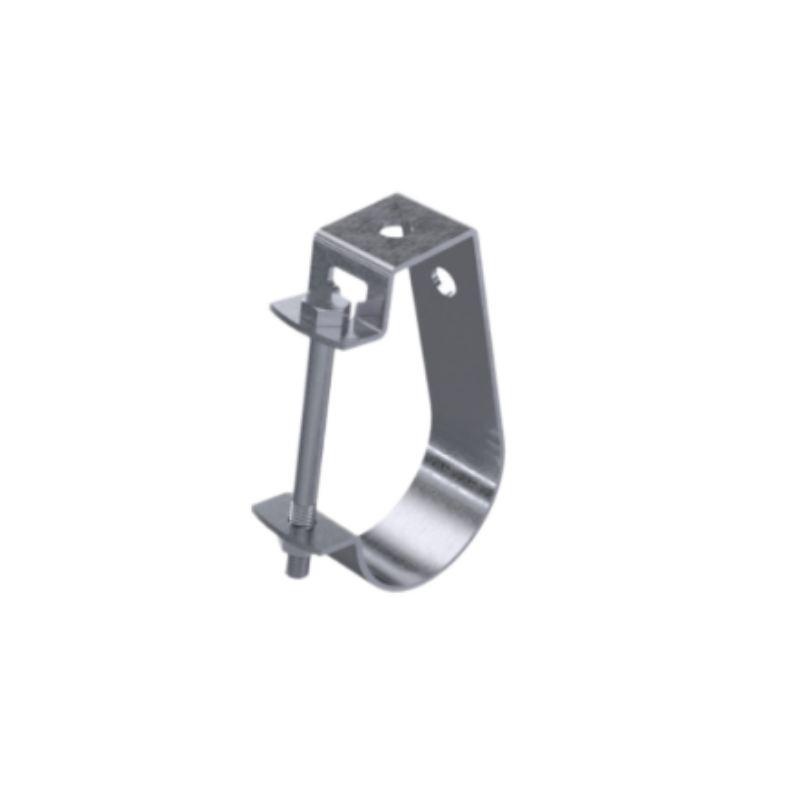

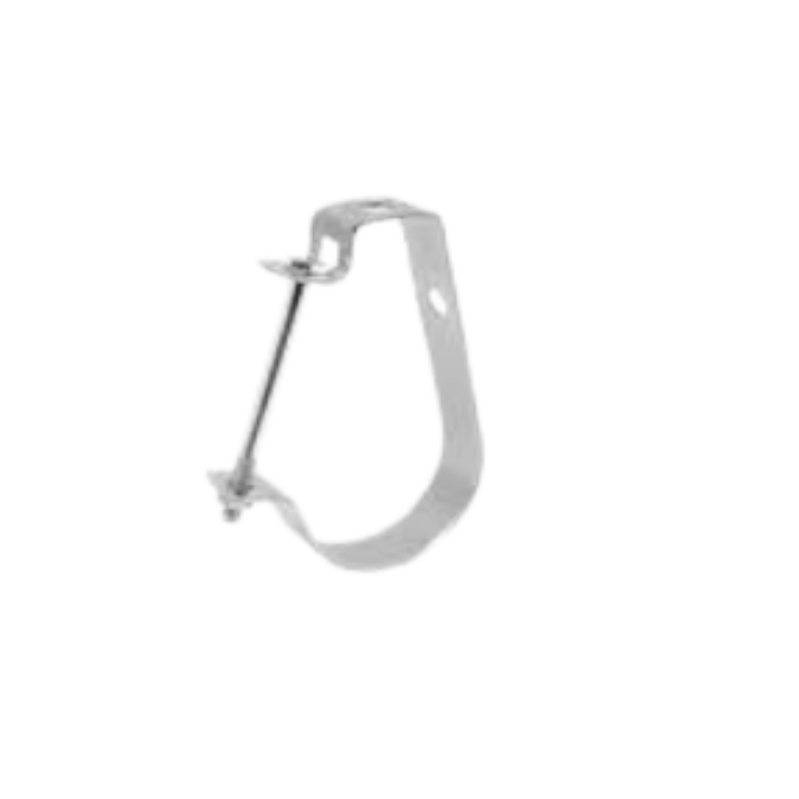

J type hanger is a versatile and durable hanging solution designed to securely hold a variety of items in both residential and commercial settings. Its J-shaped hook design allows for easy hanging and quick access to garments, tools, or other items.

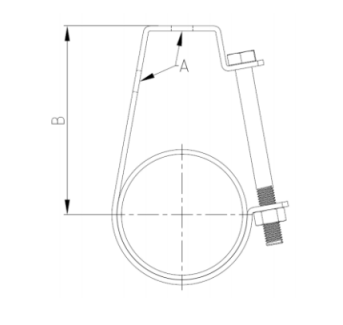

| Size | Specification of bolts and Size | A | B | Max.Rec.Load | ||||
| m m | in | mm | in | mm | Lbs | Kg | N | |
| 1/2″ | M6 | 1/4″-20UNC | M10 | 3/8″-16UNC | 54 | 299 | 135 | 1334 |
| 3/4″ | M6 | 1/4″-20UNC | M10 | 3/8″-16UNC | 60 | 299 | 135 | 1334 |
| 1″ | M6 | 1/4″-20UNC | M10 | 3/8″-16UNC | 66 | 299 | 135 | 1334 |
| 1-1/4″ | M6 | 1/4″-20UNC | M10 | 3/8″-16UNC | 71 | 299 | 135 | 1334 |
| 1-1/2″ | M6 | 1/4″-20UNC | M10 | 3/8″-16UNC | 78 | 299 | 135 | 1334 |
| 2″ | M6 | 1/4″-20UNC | M10 | 3/8″-16UNC | 89 | 299 | 135 | 1334 |
| 2-1/2″ | M10 | 3/8″-16UNC | M10 | 3/8″-16UNC | 113 | 339 | 153 | 1512 |
| 3″ | M10 | 3/8″-16UNC | M10 | 3/8″-16UNC | 124 | 419 | 189 | 1868 |
| 3-1/2″ | M10 | 3/8″-16UNC | M10 | 3/8″-16UNC | 132 | 499 | 225 | 2224 |
| 4″ | M10 | 3/8″-16UNC | M10 | 3/8″-16UNC | 156 | 599 | 270 | 2668 |
| 5″ | M10 | 3/8″-16UNC | M10 | 3/8″-16UNC | 171 | 799 | 360 | 3558 |
| 6″ | M10 | 3/8″-16UNC | M12 | 1/2″-13UNC | 197 | 1059 | 477 | 4714 |
| 8″ | M10 | 3/8″-16UNC | M16 | 5/8″-11UNC | 235 | 1619 | 729 | 7205 |
| 10″ | M10 | 3/8″-16UNC | M16 | 5/8″-11UNC | 275 | 2339 | 1053 | 10408 |
| 12″ | M10 | 3/8″-16UNC | M16 | 5/8″-11UNC | 310 | 3159 | 1422 | 14055 |
