K5.6 Upright sprinkler standard response

Product Features (Specifications – Plain English List)

Certificate: FM Approved / UL Listed

Style: Upside

Response: Standard (SR)

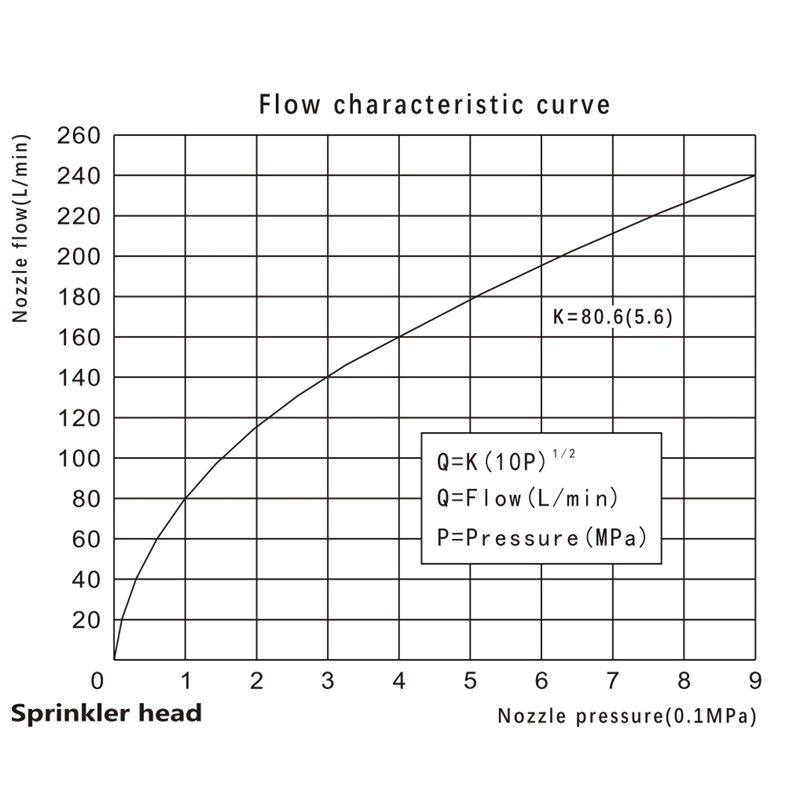

K-factor: 5.6(U.S) / 80(metric)

Max. Pressure : 175 psi / 1.2 Mpa

Factory Test Pressure: 435 psi / 3.0 Mpa

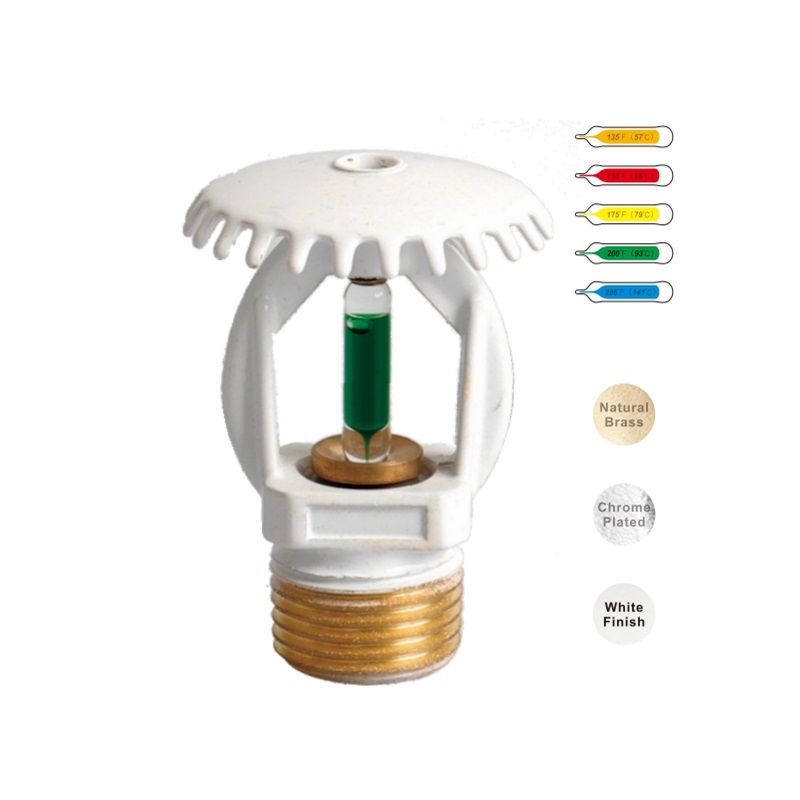

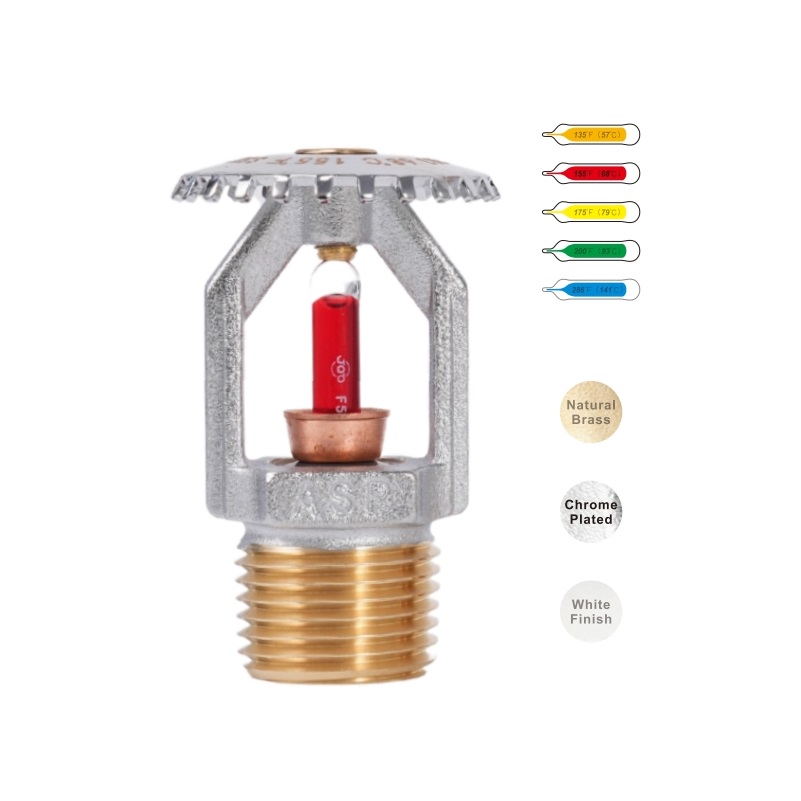

Sprinkler Finish: Natural Brass / Chrome Plated / White Finish

Chat Now

Product details

Standard response upright sprinkler is one that directs the water outwards or at an upward angle. These upside sprinklers are designed for specific applications that require an upward or inverted spray pattern to ensure optimal performance for the intended use.

Product Overview

K5.6 upright sprinkler with standard response is a classic fire protection glass bulb sprinkler, widely used for light and ordinary hazard areas. Adopting standard response glass bulb design, it activates steadily at rated temperature and provides reliable fire control and water distribution.Brass body with anti-corrosion surface treatment, stable performance and long service life. Comply with international fire protection standards, suitable for commercial, industrial and public building fire sprinkler systems.

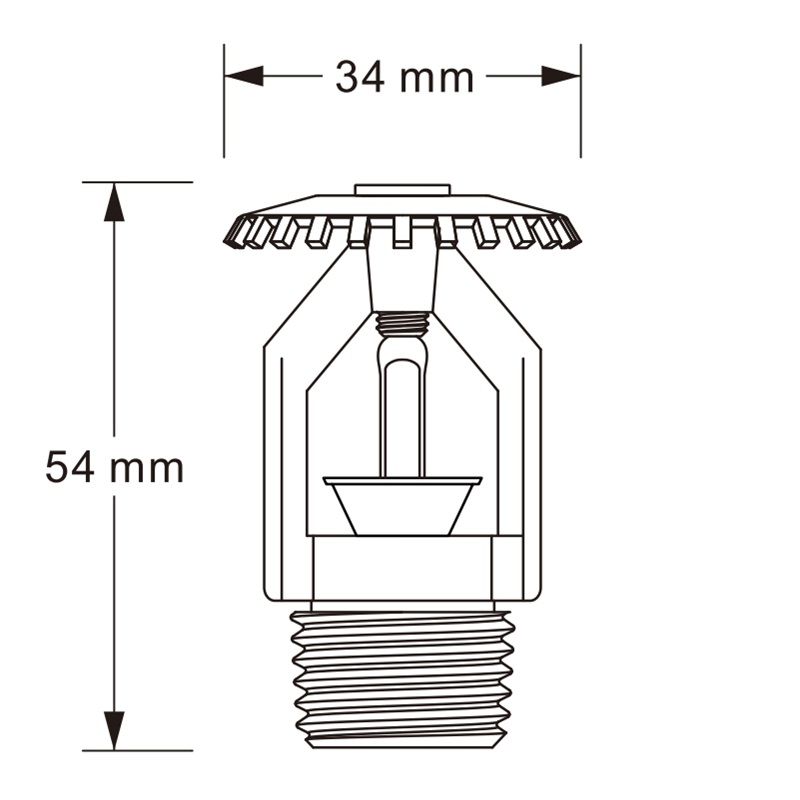

Specifications Table (Dimensions & Parameters)

Type	Temperature	Max. Pressure (psi)
Upside	135°F (57°C)	175
Upside	155°F (68°C)	175
Upside	175°F (79°C)	175
Upside	200°F (93°C)	175
Upside	286°F (141°C)	175
Upside	360°F (182°C)	175

Product Applications

Office buildings, shopping malls, hotels
Factory workshops, ordinary hazard industrial areas
Warehouses, parking lots, corridor public areas
Fire sprinkler system for commercial and civil buildings

Installation and Maintenance

Install in upright position with standard 1/2 inch thread
Keep the sprinkler deflector horizontal and unobstructed
Avoid over-tightening to prevent thread damage
Regularly inspect for corrosion, collision damage and paint covering
Replace immediately if glass bulb is damaged or deformed

Related Products

K5.6 Quick Response Upright Sprinkler

K5.6 Pendent Sprinkler

Sidewall Sprinkler

Sprinkler Escutcheon

FAQ

Can you supply OEM?

OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.

What’s the MOQ?

The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.

How about the order processing and lead time?

After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.

What quality will be ensured?

All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.

Can you guide the installation?

Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
