Features:
Certificate: FM Approved / UL Listed
Size: 1/8” – 8” (DN 6 – DN 200)
Pressure: class150 / class300
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1
Surface: Black / Electrical galvanized / Hot-dip galvanized

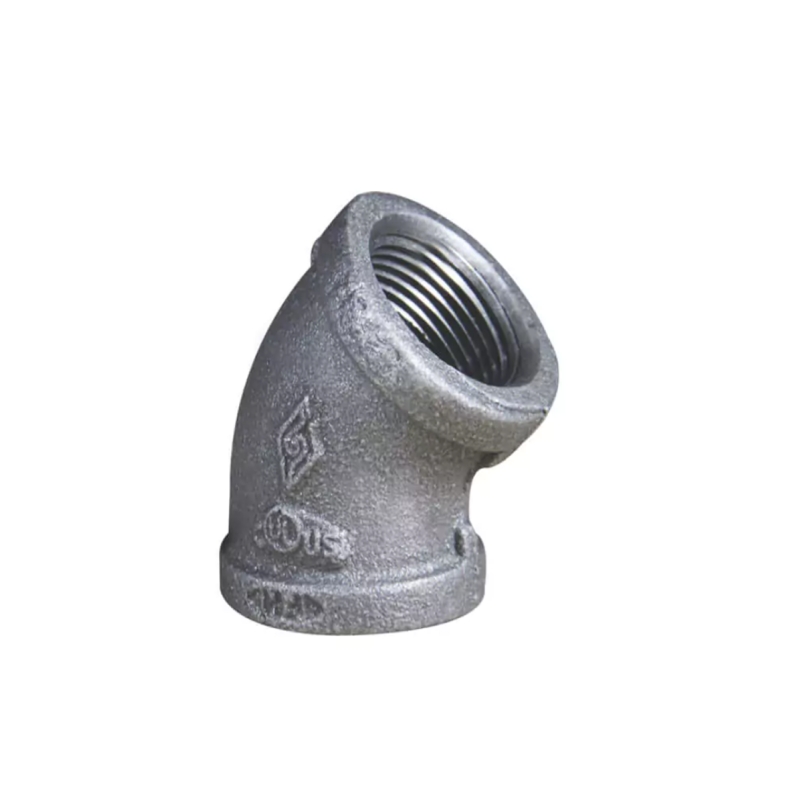

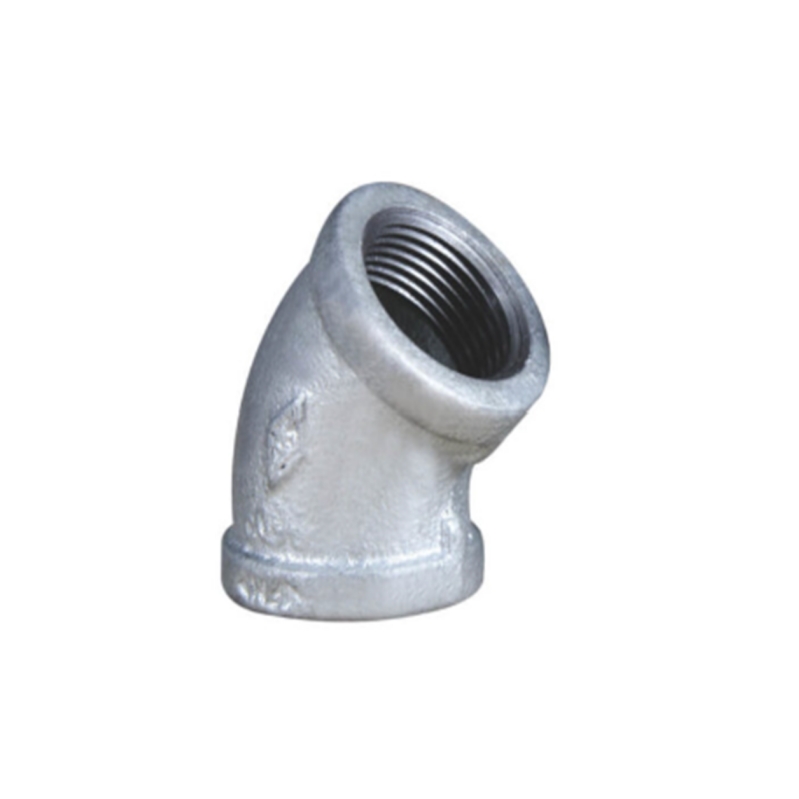

Malleable iron 45°elbow is with two ends female threads and used to connect the pipes with male thread. It can change the pipeline direction by 45 degree.
Class 150 Type
| SIZE | A (MM) | |
| 1/8″ | DN6 | 16 |
| 1/4” | DN8 | 18.5 |
| 3/8” | DN10 | 20.3 |
| 1/2” | DN15 | 22.4 |
| 3/4” | DN20 | 24.9 |
| 1” | DN25 | 28.5 |
| 1 1/4” | DN32 | 32.8 |
| 1 1/2” | DN40 | 36.3 |
| 2” | DN50 | 42.7 |
| 2 1/2” | DN65 | 49.5 |
| 3” | DN80 | 55.1 |
| 4” | DN100 | 66.3 |
| 5” | DN125 | 77.5 |
| 6” | DN150 | 87.9 |
| 8” | DN200 | 106.7 |
Class 300 Type
| SIZE | A (MM) | |
| 1/4” | DN8 | 20.6 |
| 3/8” | DN10 | 22.4 |
| 1/2” | DN15 | 24.5 |
| 3/4” | DN20 | 28.7 |
| 1” | DN25 | 33.3 |
| 1 1/4” | DN32 | 38.1 |
| 1 1/2” | DN40 | 42.9 |
| 2” | DN50 | 50.8 |
| 2 1/2” | DN65 | 57.2 |
| 3” | DN80 | 63.9 |
| 4” | DN100 | 71 |
| 8” | DN200 | 106.7 |
