Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN8 – DN100
Pressure: 2.5 Mpa / PN25
Dimensions: DIN EN 10242
Material: Malleable iron DIN EN 1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

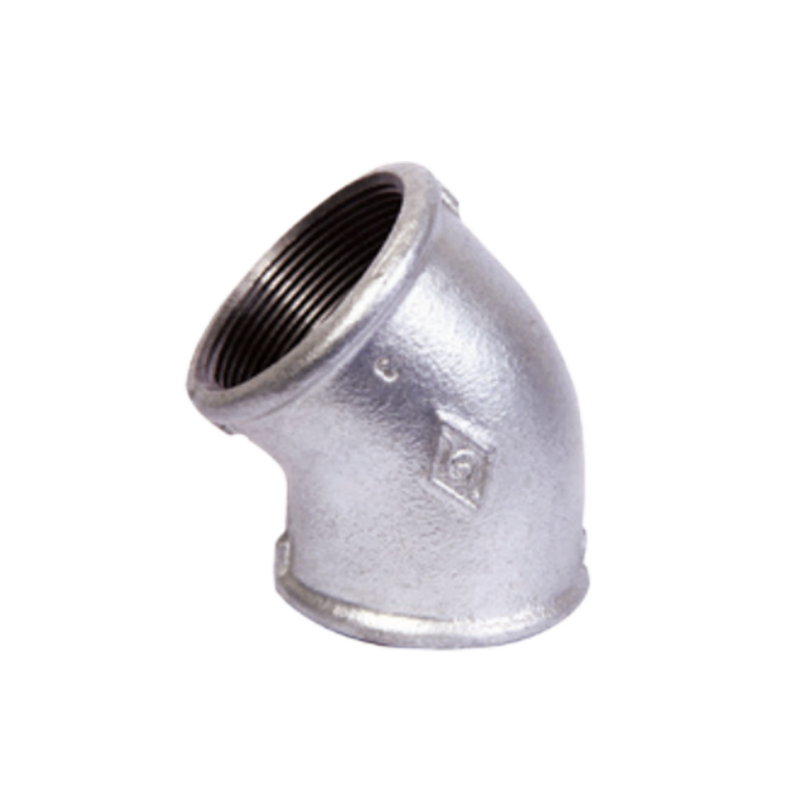

Malleable iron 45°elbow is with two ends female threads and used to connect the pipes with male thread. It can change the pipeline direction by 45 degree.

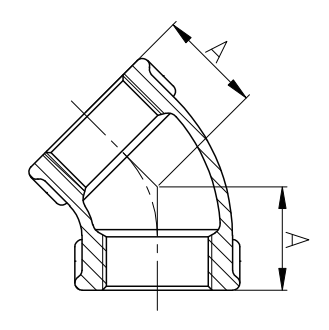

| Size | Inch | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 |
| mm | 8 | 10 | 15 | 20 | 25 | 32 | |
| Dim (mm) |
A | 17 | 20 | 22 | 25 | 28 | 33 |
| Size | Inch | 11/2 | 2 | 21/2 | 3 | 4 | |
| mm | 40 | 50 | 65 | 80 | 100 | ||
| Dim (mm) |
A | 36 | 43 | 49 | 55 | 66 |
