Features:
Certificate: FM Approved / UL Listed
Size: 1/8” – 8” (DN 6 – DN 200)
Pressure: class150 / class300
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1

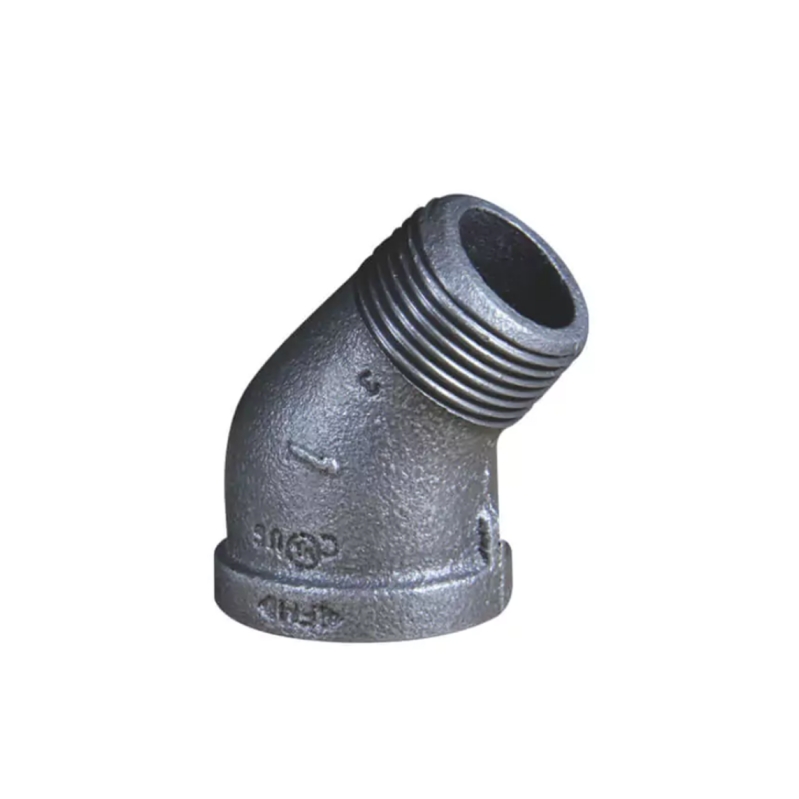

Surface: Black / Electrical galvanized / Hot-dip galvanized

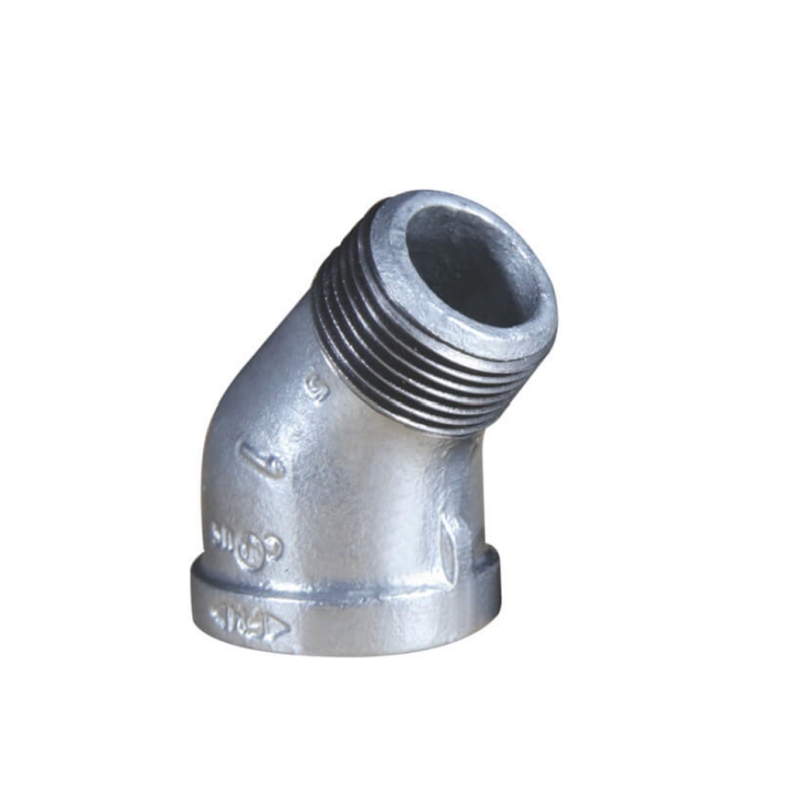

Malleable iron 45° street elbow is with female thread on one end and an male thread on the other end. It is used to connect pipes with external threads and can change the direction of the pipe by 45 degrees.
Class 150 Type
| SIZE | A (MM) | B (MM) | |
| 1/8″ | DN6 | 16 | 21 |
| 1/4” | DN8 | 18.5 | 23.9 |
| 3/8” | DN10 | 20.3 | 26.2 |
| 1/2” | DN15 | 22.4 | 29.2 |
| 3/4” | DN20 | 24.9 | 32.8 |
| 1” | DN25 | 28.5 | 37.3 |
| 1 1/4” | DN32 | 32.8 | 43.4 |
| 1 1/2” | DN40 | 36.3 | 47.8 |
| 2” | DN50 | 42.7 | 56.4 |
| 2 1/2” | DN65 | 49.5 | 65.3 |
| 3” | DN80 | 55.1 | 76.2 |
| 4” | DN100 | 66.3 | 94 |
| 5” | DN125 | 77.5 | |
| 6” | DN150 | 87.9 | |
| 8” | DN200 | 106.7 | |
Class 300 Type
| SIZE | A (MM) | B (MM) | |
| 3/4” | DN20 | 28.7 | 39.6 |
| 1” | DN25 | 33.3 | 46 |
| 1 1/4” | DN32 | 38.1 | 54.1 |
| 1 1/2” | DN40 | 42.9 | 58.7 |
