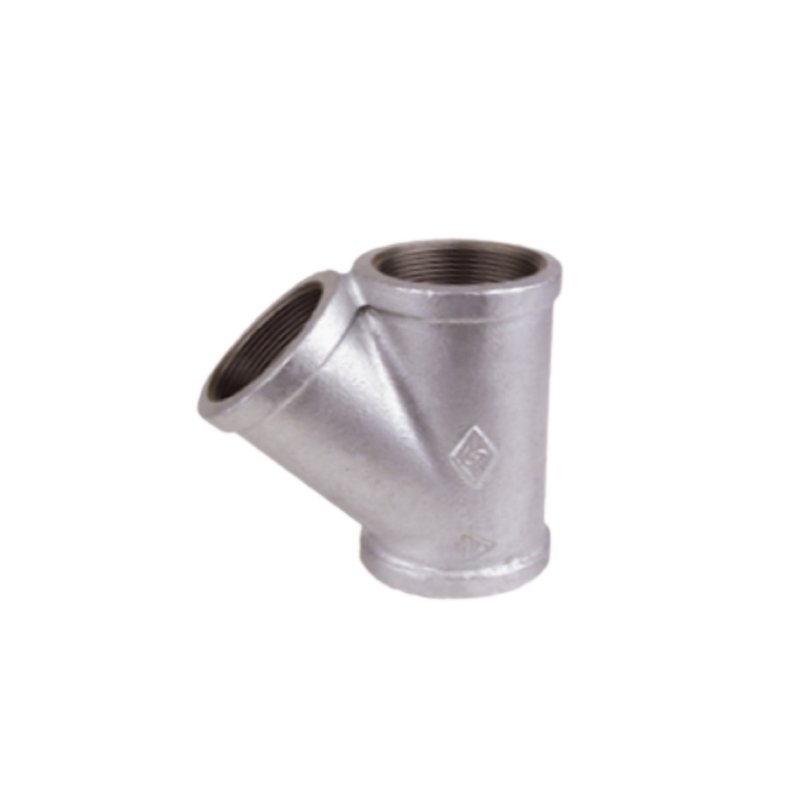

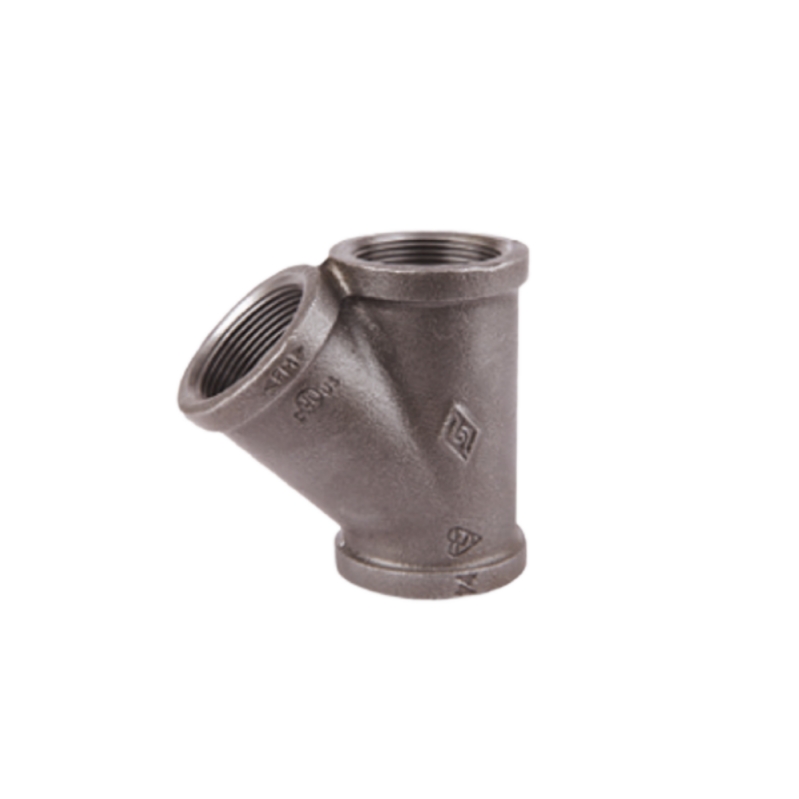

Malleable iron 45°Y branch ASTM

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: 3/8”-4”(DN10 – DN100)

Pressure: 2.5 Mpa / PN25

Dimensions: ANSI B16.3

Material: Malleable iron ASTM A197

Threaded: NPT ASME B1.20.1

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

Malleable iron 45° Y branch has a cross shape to get its name. The branch outlets are the same size to the main outlets, and it is used to create two branch pipelines to 90-degree direction.

Size	Inch	3/8	1/2	3/4	1	11/4	11/2
Size	mm	10	15	20	25	32	40
Dim. (mm)	A	12.7	15.5	18.3	21.6	25.9	27.9
Dim. (mm)	B	36.3	43.4	52.1	61.7	74.2	83.3
Size	Inch	2	21/2	3	4
Size	mm	50	65	80	100
Dim. (mm)	A	37.5	38.6	43.4	51.1
Dim. (mm)	B	99.8	120.1	141	177
