Features:
Certificate: FM Approved / UL Listed
Size: 1/2” – 2” (DN 15 – DN 50)
Pressure: 2.5 Mpa / PN25
Dimensions: DIN EN 10242
Material: Malleable iron DIN EN 1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

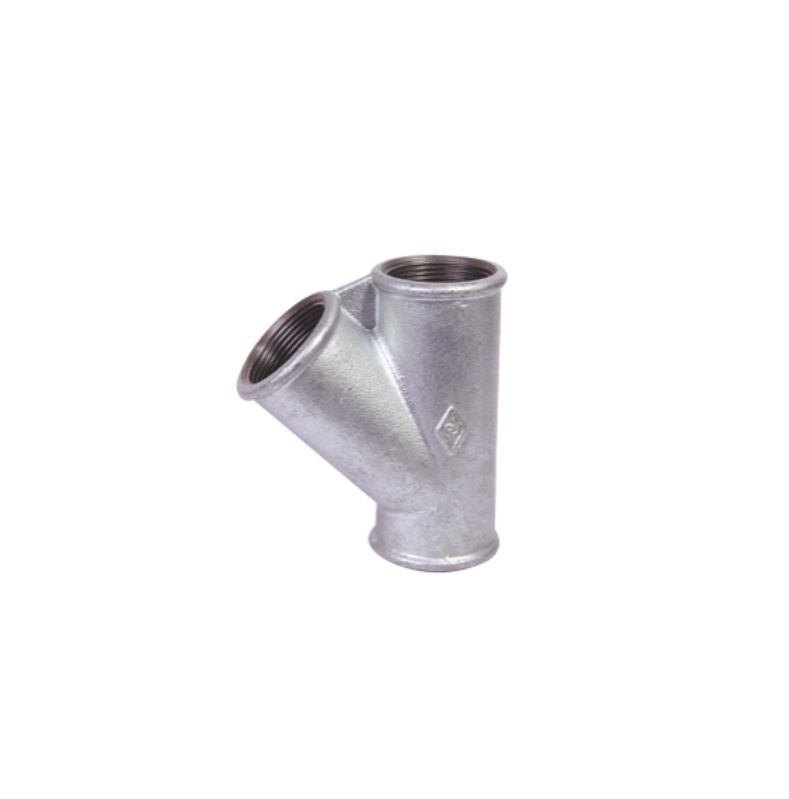

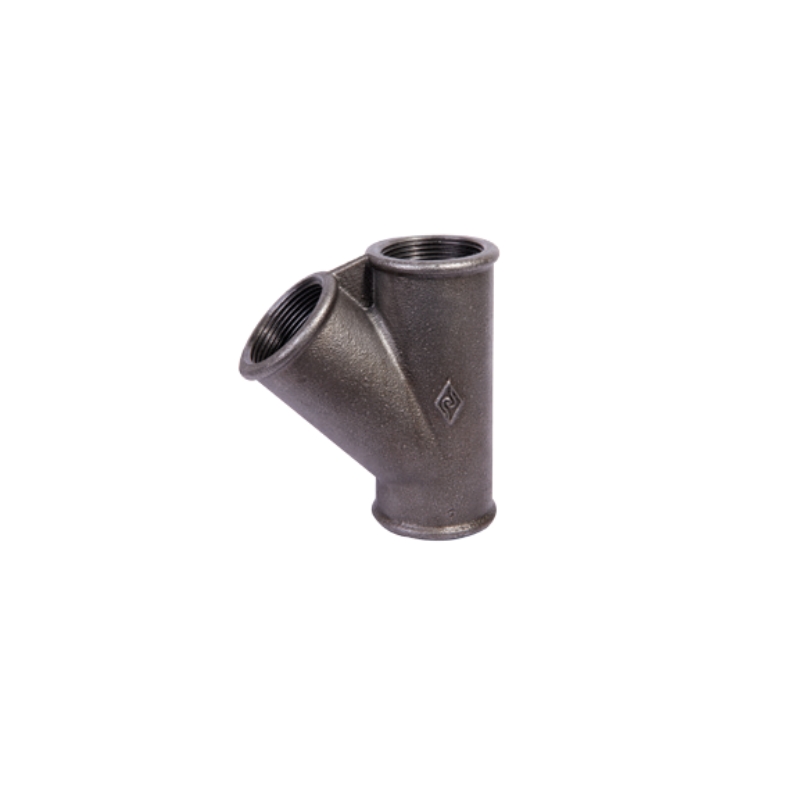

Malleable iron 45°Y branch has a Y-shaped structure, with one end connecting two pipes and the other end connecting a third pipe. The Y-type three-way connector can easily realize the diversion and confluence of pipes, allowing the fluid to flow smoothly.
| Size | Inch | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| mm | 15 | 20 | 25 | 32 | 40 | 50 | |
| Dim. (mm) |
A | 21 | 24 | 28 | 34 | 34 | 40 |
| B | 56 | 64 | 77 | 91 | 98 | 106 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
