Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN8 – DN100
Pressure: 2.5 Mpa / PN25
Dimensions: BS EN10242
Material: Malleable iron BS EN1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

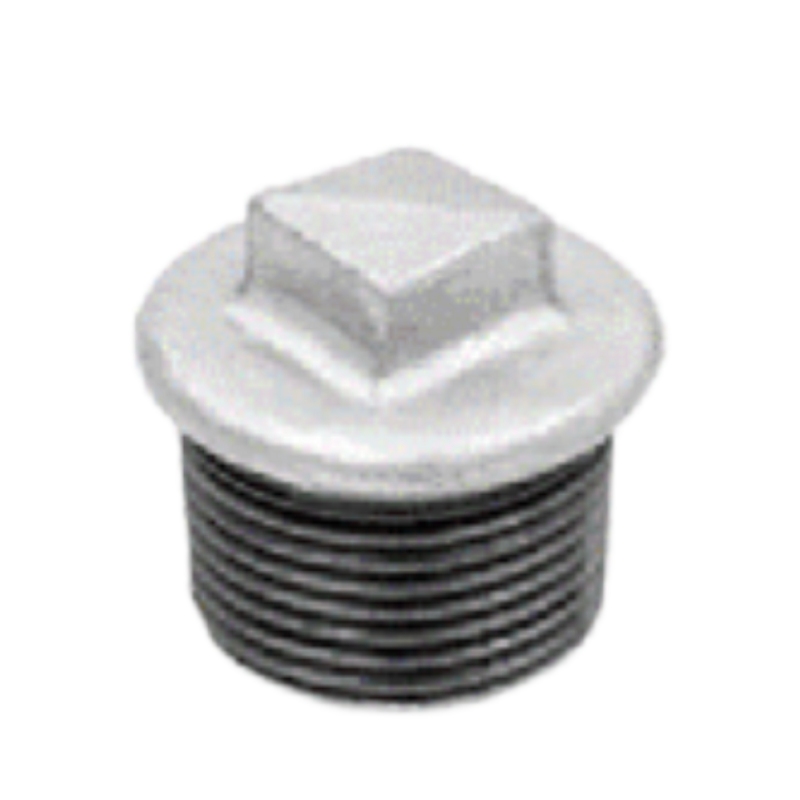

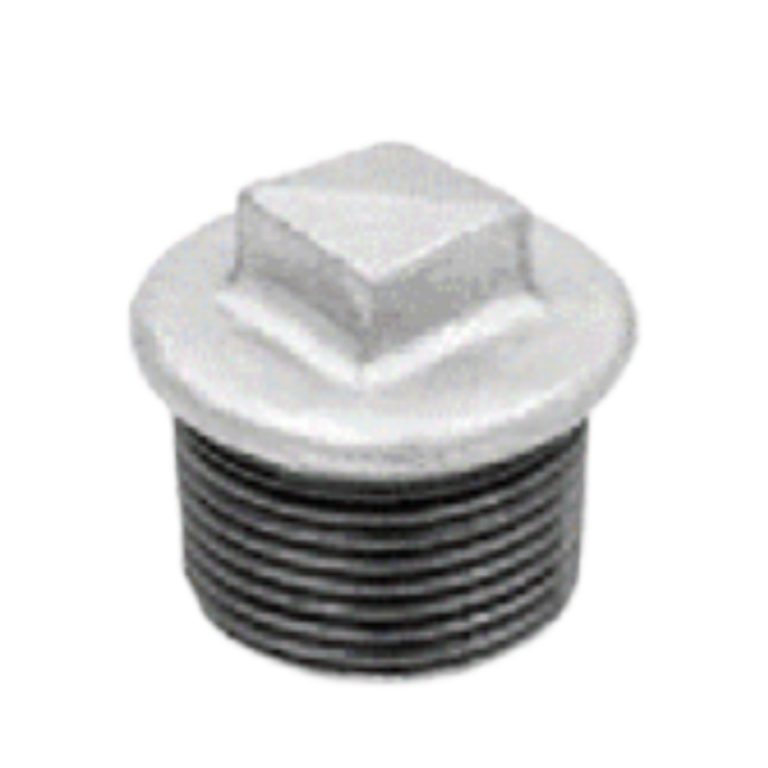

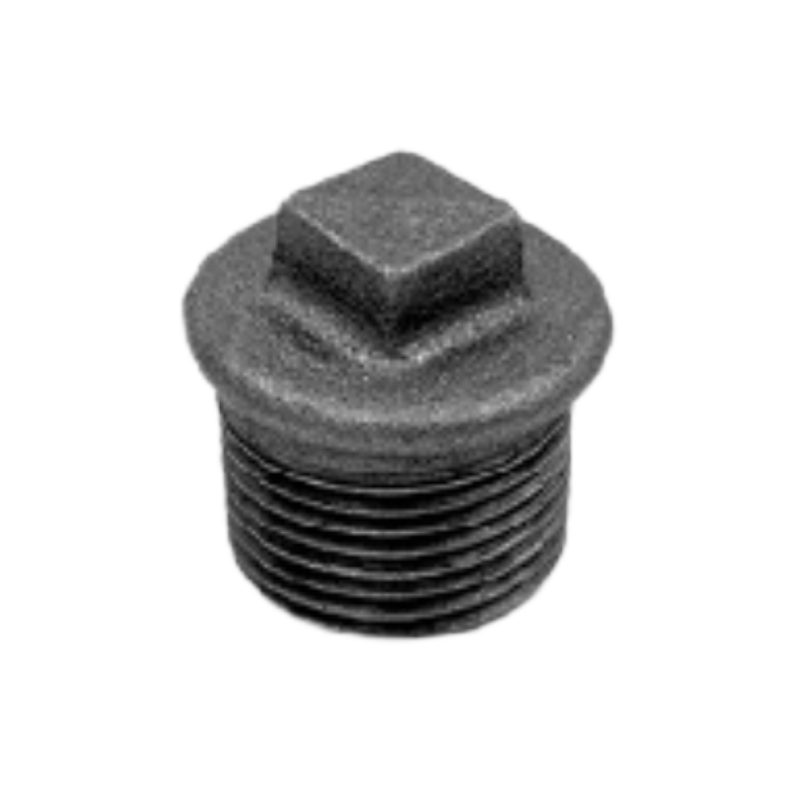

Malleable iron beaded plug is used to mount at the pipe end by male threaded connection with protruded end at the other side, so to block the pipeline and form liquid or gas tight seal.

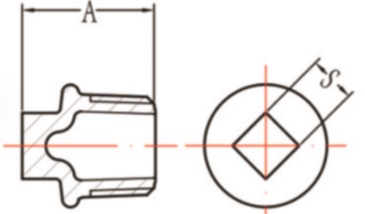

| SIZE | A (MM) | S(MM | PCS/CTN. | |
| 1/4” | DN8 | 22.5 | 6 | 2000 |
| 3/8” | DN10 | 25 | 7 | 1300 |
| 1/2” | DN15 | 28 | 10 | 900 |
| 3/4” | DN20 | 32 | 12 | 600 |
| 1” | DN25 | 36 | 16 | 300 |
| 1 1/4” | DN32 | 38.5 | 20 | 220 |
| 1 1/2” | DN40 | 41 | 22 | 150 |
| 2” | DN50 | 47 | 28 | 80 |
| 2 1/2” | DN65 | 53 | 30 | 64 |
| 3” | DN80 | 58 | 34 | 36 |
| 4” | DN100 | 72 | 44 | 28 |
