Malleable iron bushing BS EN

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: DN8×6 – DN150×100

Pressure: 2.5 Mpa / PN25

Dimensions: BS EN10242

Material: Malleable iron BS EN1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

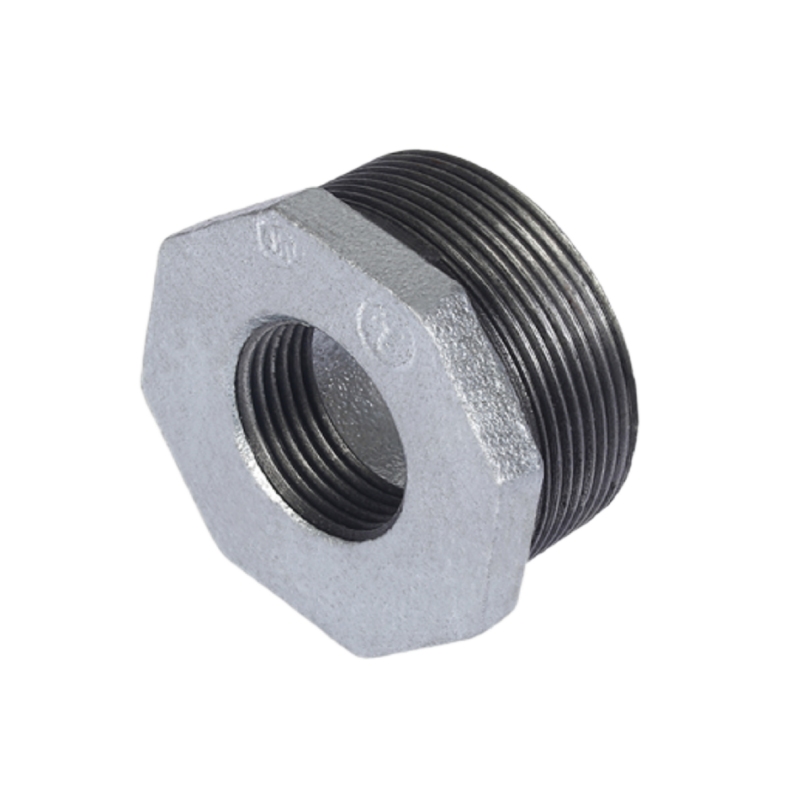

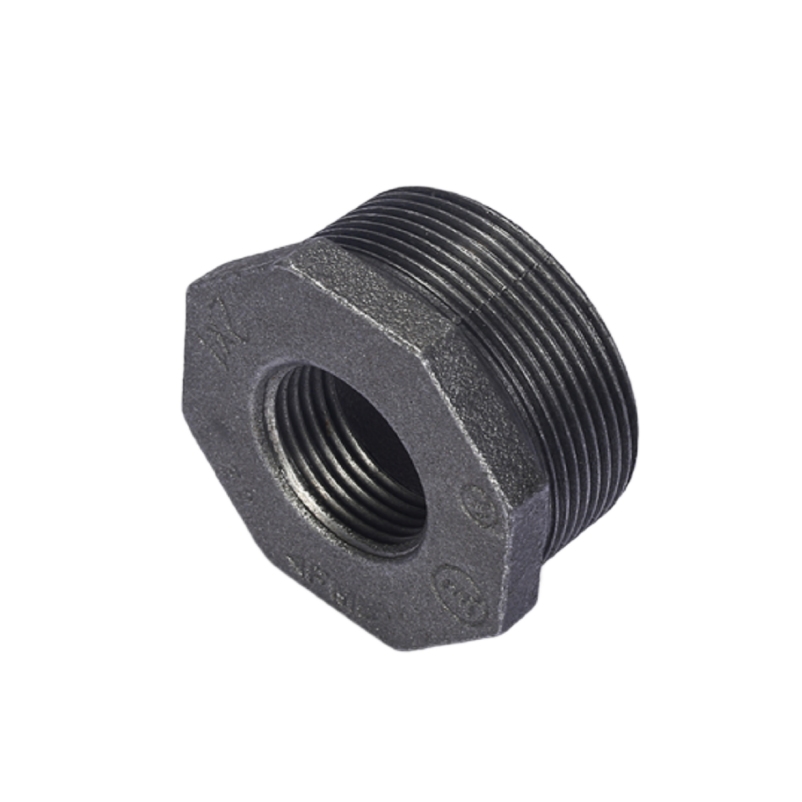

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

Malleable iron bushing is a hex-head pipe fittings with both male and female threaded connections, and it is used to join two pipes with different size.

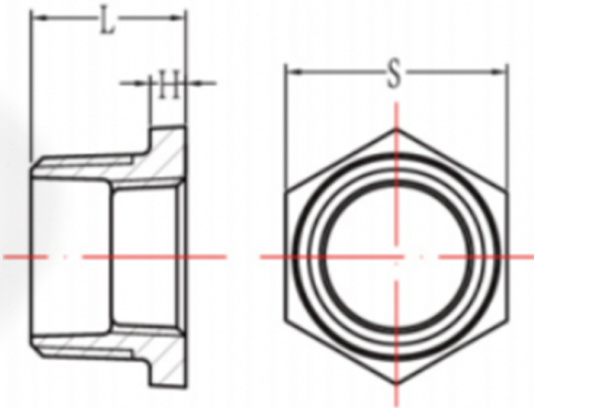

SIZE		L (MM)	S(MM)	H(MM)	PCS/CTN.
1/4″×1/8″	8×6	18.5	16.8	6	1800
3/8″x1/8″	10×6	18	20	6	1500
3/8″x1/4″	10×8	18.5	18.4	6	1800
3/4 “x3/8”	15×8	22.5	22	6	500
3/4 “x 1/4”	15×10	22.5	22	6	600
1/2″x3/8″	20×8	24.5	29.6	6	960
1/2″x1/4″	20×10				900
3/4 “x1/2”	20×15				600
1 “x 1/4”	25×8	28	37.4	6.5	300
1 “x3/8”	25×10				300
1″x1/2″	25×15				300
1 “x3/4”	25×20				300
1-1/4″x1/2″	32×15	30	45.6	7	200
1-1/4″x3/4″	32×20				200
1-1/4″x1″	32×25				200
1-1/2″x1/2″	40×15	30	50	7.5	160
1-1/2″x3/4″	40×20				160
1-1/2″x1″	40×25				160
1-1/2″x1-1/4″	40×32				160
2 “x1/2”	50×15	33	64.1	8.5	96
2 “x3/4”	50×20				96
2 “x1”	50×25				96
2 “x1-1/4”	50×32				96
2″x1-1/2″	50×40				96
2-1/2″x1/2″	65×15	29	79.6	9	68
2-1/2″x3/4″	65×20				68
2-1/2″x1″	65×25				68
2-1/2″x1-1/4″	65×32				68
2-1/2″x 1-1/2″	65×40				68
2-1/2″x 2″	65×50				68
3 “x1/2”	80×15	42	93	10	36
3 “x3/4”	80×20				36
3 “x1”	80×25				36
3 “x 1-1/4”	80×32				36
3 “x1-1/2”	80×40				36
3 “x 2”	80×50				36
3 “x2-1/2”	80×65				36
4 “x 1/2”	100×15	49	118.4	11	18
4 “x3/4”	100×20				18
4 “x 1”	100×25				18
4″x 1-1/4″	100×32				18
4 “x1-1/2”	100×40				18
4 “x 2”	100×50				18
4″x2-1/2″	100×65				18
4 “x 3”	100×80				18
6″x3″	150×80	47	170.8	13	6
6″x 4″	150×100	47	170.8	13	6
