Features:
Certificate: FM Approved / UL Listed
Size: 1/2”-2”
Pressure: 2.5 Mpa / PN25
Dimensions: DIN EN 10242
Material: Malleable iron DIN EN 1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

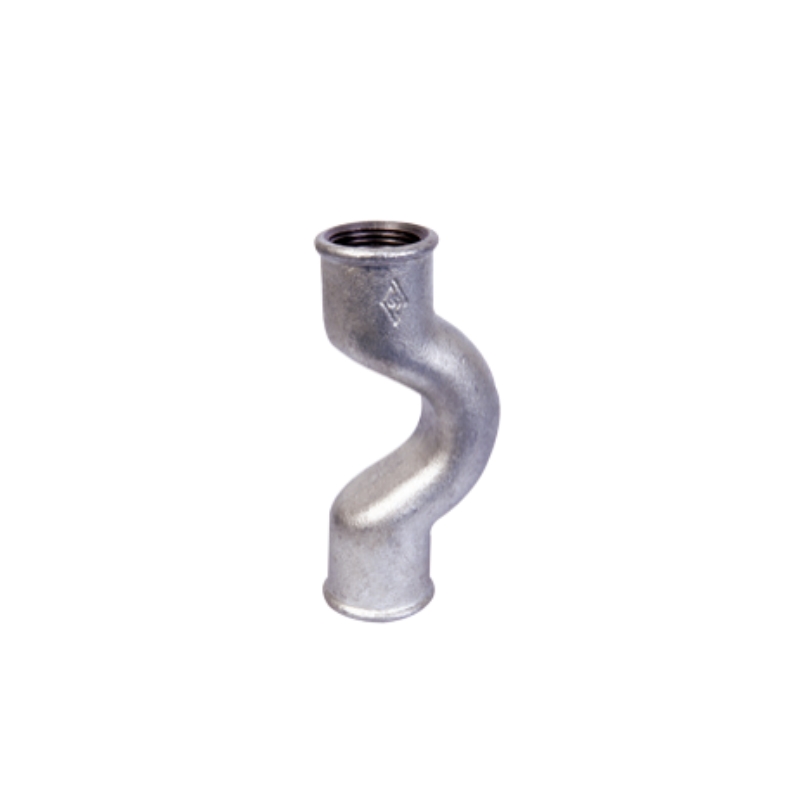

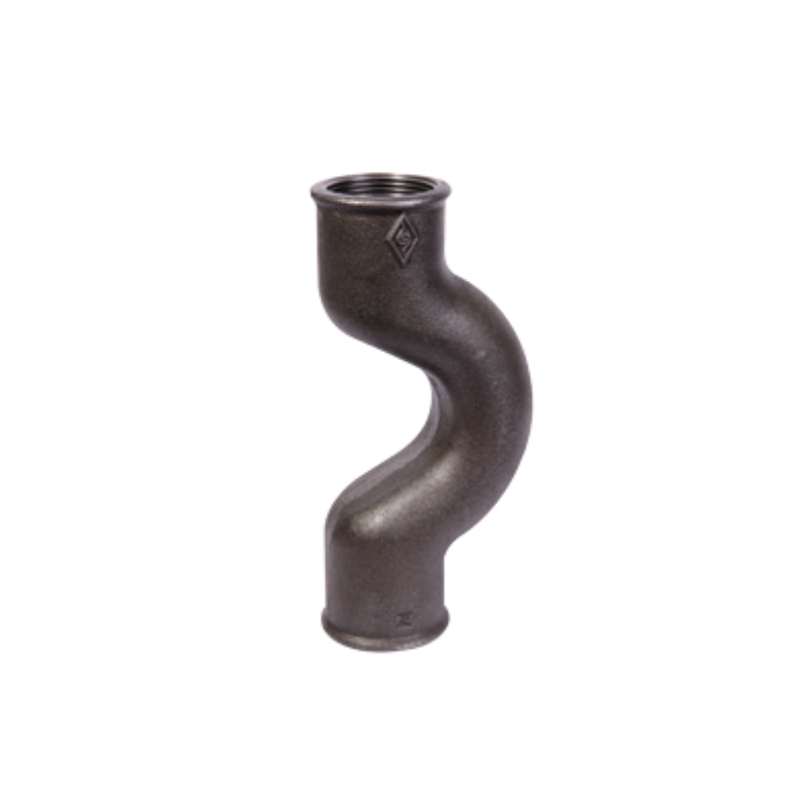

Malleable cast iron cross over is a casting connector that uses internal thread to connect two pipes of the same diameter with obstacles in the middle. Its function is to use the curvature to bypass obstacles so that the pipes do not need to be reinstalled.
| Size | Inch | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| mm | 15 | 20 | 25 | 32 | 40 | 50 | |
| Dim. (mm) |
A | 45 | 54 | 70 | 91 | 100.5 | 115.5 |
