Features:
Certificate: FM Approved / UL Listed
Size: 1/8” – 6” (DN 6 – DN 150)
Pressure: 2.5 Mpa / PN25
Dimensions: DIN EN 10242
Material: Malleable iron DIN EN 1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)

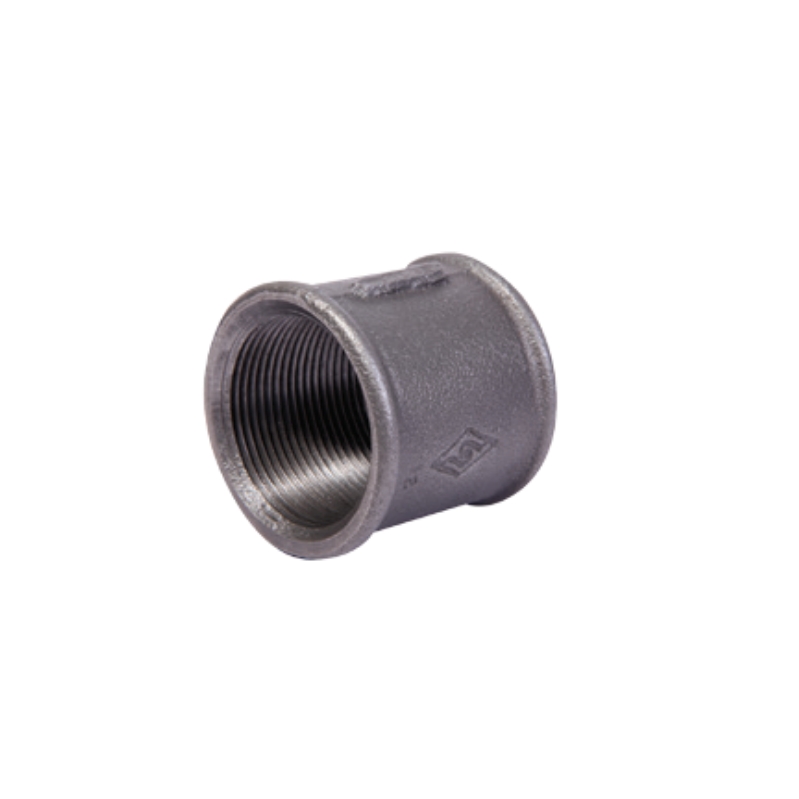

Surface: Black / Electrical galvanized / Hot-dip galvanized

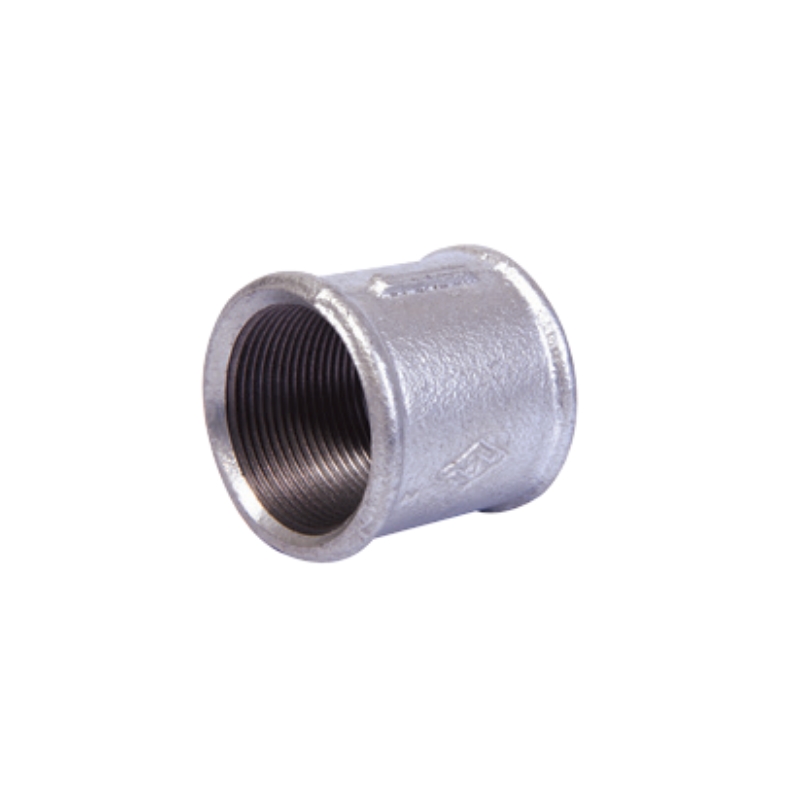

Malleable iron entire thread socket is a short tube with full female threads. It is used to connect two male threaded pipes or fittings of the same nominal diameter.
| SIZE | A (MM) | |
| 1/8″ | DN6 | 25 |
| 1/4” | DN8 | 27 |
| 3/8” | DN10 | 30 |
| 1/2” | DN15 | 36 |
| 3/4” | DN20 | 39 |
| 1” | DN25 | 45 |
| 1 1/4” | DN32 | 50 |
| 1 1/2” | DN40 | 40 |
| 2” | DN50 | 50 |
| 2 1/2” | DN65 | 65 |
| 3” | DN80 | 80 |
| 4” | DN100 | 100 |
| 5” | DN125 | 125 |
| 6” | DN150 | 150 |
