Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN15 – DN100
Pressure: 2.5 Mpa / PN25
Dimensions: BS EN10242
Material: Malleable iron BS EN1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

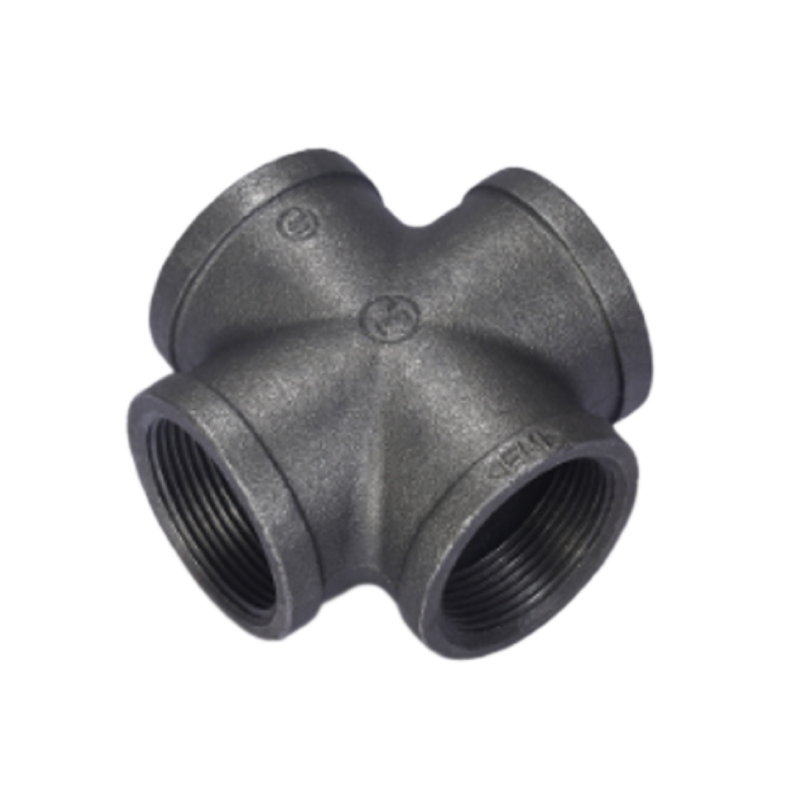

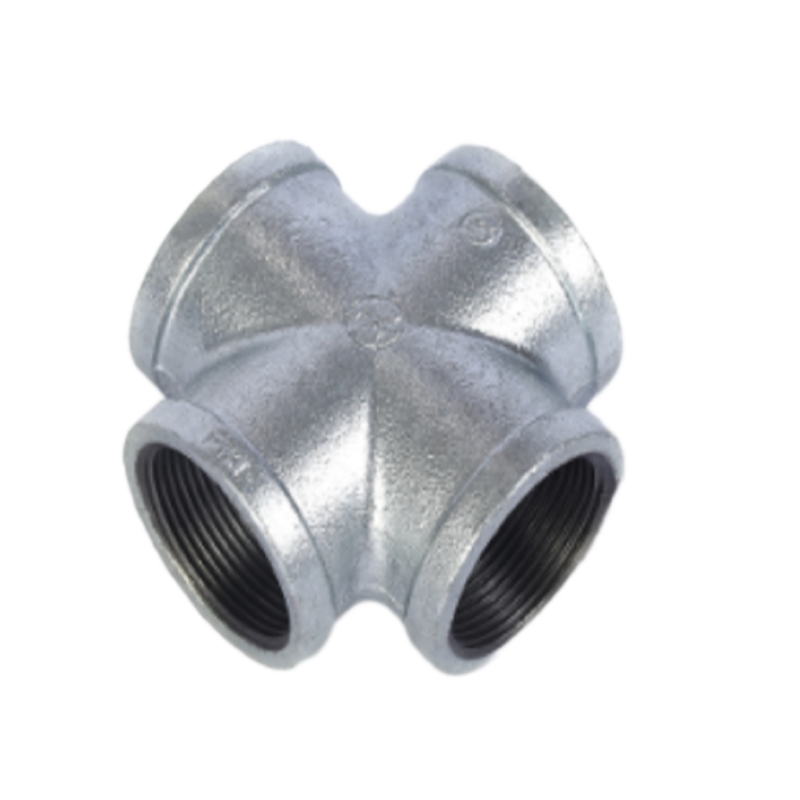

Malleable Iron Equal Cross is a kind of connector that uses internal thread to connect four pipes with the same diameter in horizontal and vertical directions with balanced cross-section to split and merge the flow.
| SIZE | A (MM) | PCS/CTN. | |
| 1/2” | DN15 | 27 | 180 |
| 3/4” | DN20 | 32 | 96 |
| 1” | DN25 | 37 | 72 |
| 1 1/4” | DN32 | 44.5 | 36 |
| 1 1/2” | DN40 | 48.5 | 30 |
| 2” | DN50 | 57 | 12 |
| 2 1/2” | DN65 | 68.5 | 10 |
| 3” | DN80 | 77.5 | 6 |
| 4” | DN100 | 96.5 | 2 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
