Features:
Certificate: FM Approved / UL Listed
Size: 1/8” – 8” (DN 6 – DN 200)
Pressure: class150 / class300
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1
Surface: Black / Electrical galvanized / Hot-dip galvanized

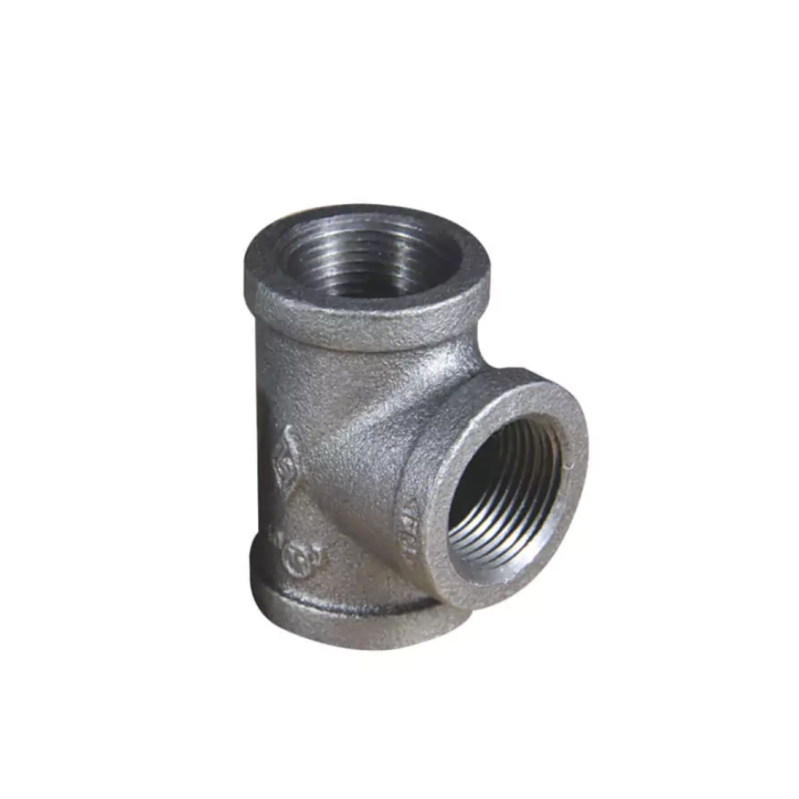

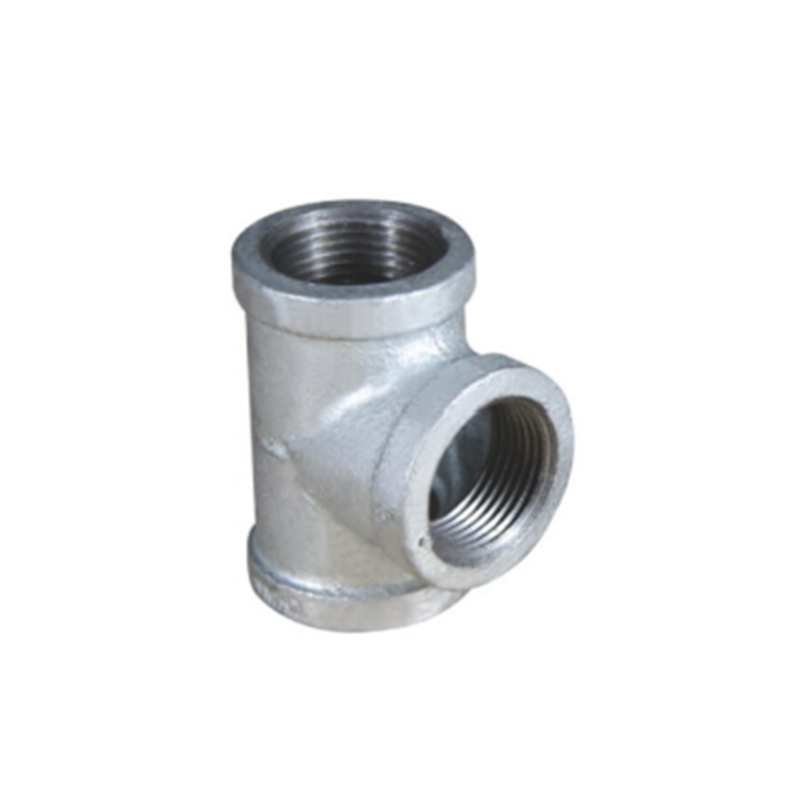

Malleable iron equal tee is with three ends female threads and used to connect the pipes with male thread. Used to change the direction of the fluid, used at the branch pipe of the main pipeline.
Class 150 Type

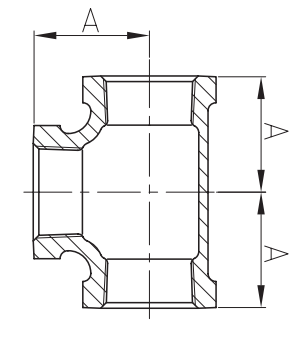

| SIZE | A (MM) | |
| 1/8″ | DN6 | 17.5 |
| 1/4” | DN8 | 20.6 |
| 3/8” | DN10 | 24.1 |
| 1/2” | DN15 | 28.5 |
| 3/4” | DN20 | 33.3 |
| 1” | DN25 | 38.1 |
| 1 1/4” | DN32 | 44.5 |
| 1 1/2” | DN40 | 49.3 |
| 2” | DN50 | 57.2 |
| 2 1/2” | DN65 | 68.6 |
| 3” | DN80 | 78.2 |
| 4” | DN100 | 96.3 |
| 5” | DN125 | 114.3 |
| 6” | DN150 | 130.3 |
| 8” | DN200 | 162 |
Class 300 Type
| SIZE | A (MM) | |
| 1/4” | DN8 | 23.9 |
| 3/8” | DN10 | 26.9 |
| 1/2” | DN15 | 31.8 |
| 3/4” | DN20 | 35.6 |
| 1” | DN25 | 41.4 |
| 1 1/4” | DN32 | 49.3 |
| 1 1/2” | DN40 | 54.1 |
| 2” | DN50 | 63.5 |
| 2 1/2” | DN65 | 74.7 |
| 3” | DN80 | 85.9 |
| 4” | DN100 | 114 |
| 8” | DN200 | 162 |
