Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN6 – DN150
Pressure: 2.5 Mpa / PN25
Dimensions: BS EN10242
Material: Malleable iron BS EN1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

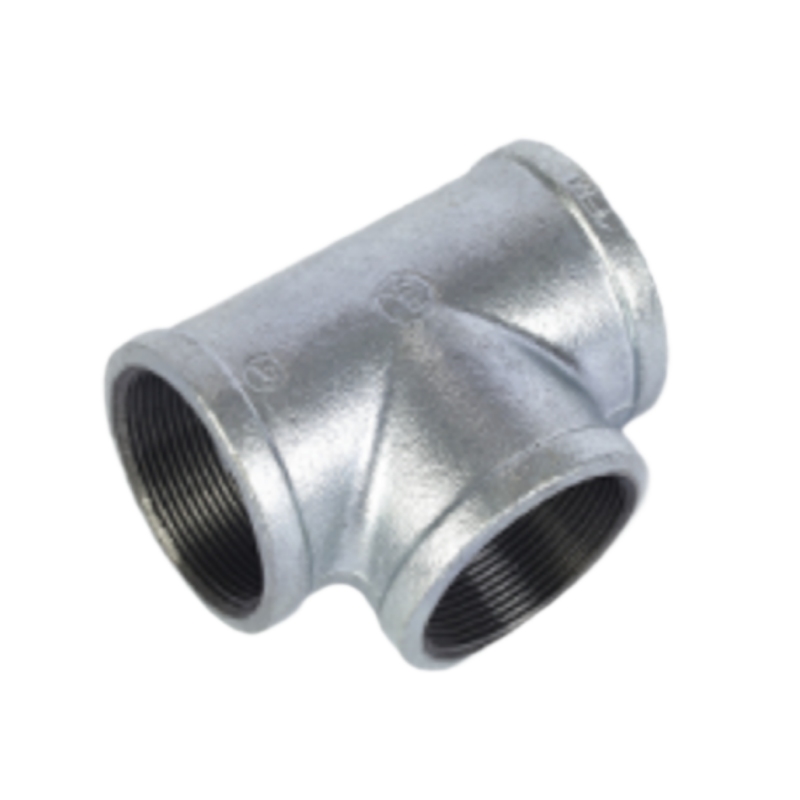

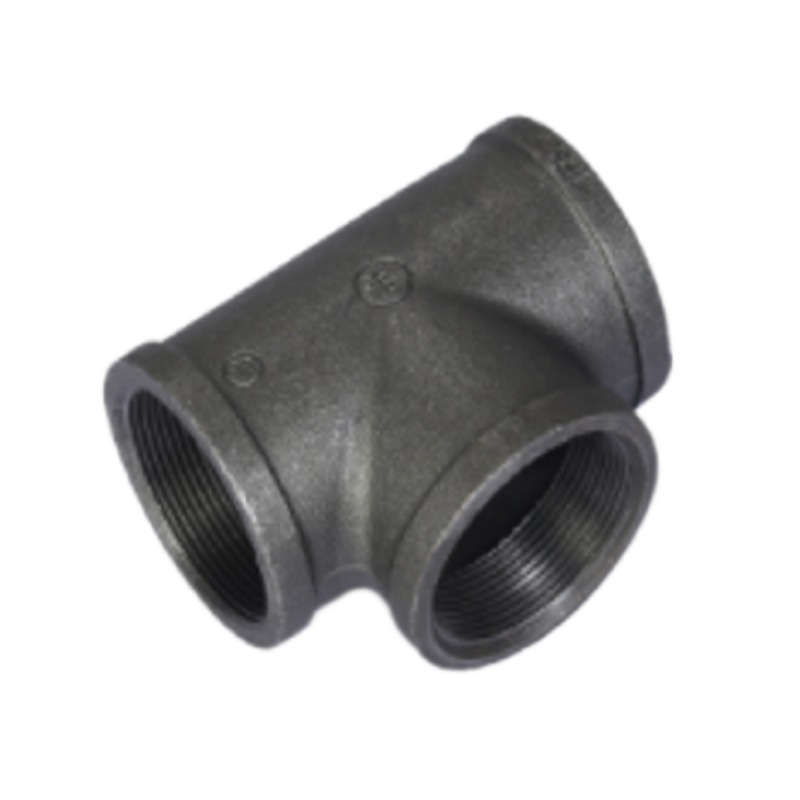

Malleable iron equal tee is a type of pipe fitting used to connect three pieces of pipe of the same diameter to form a T Shape.
| SIZE | A (MM) | PCS/CTN. | |
| 1/8″ | DN6 | 18 | 400 |
| 1/4” | DN8 | 20 | 400 |
| 3/8” | DN10 | 24 | 300 |
| 1/2” | DN15 | 27 | 240 |
| 3/4” | DN20 | 32 | 140 |
| 1” | DN25 | 37 | 90 |
| 1 1/4” | DN32 | 44.5 | 56 |
| 1 1/2” | DN40 | 48.5 | 40 |
| 2” | DN50 | 57 | 20 |
| 2 1/2” | DN65 | 68.5 | 12 |
| 3” | DN80 | 77.5 | 10 |
| 4” | DN100 | 96.5 | 4 |
| 6” | DN150 | 129 | 2 |
