Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN15 – DN100
Pressure: 2.5 Mpa / PN25
Dimensions: BS EN10242
Material: Malleable iron BS EN1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

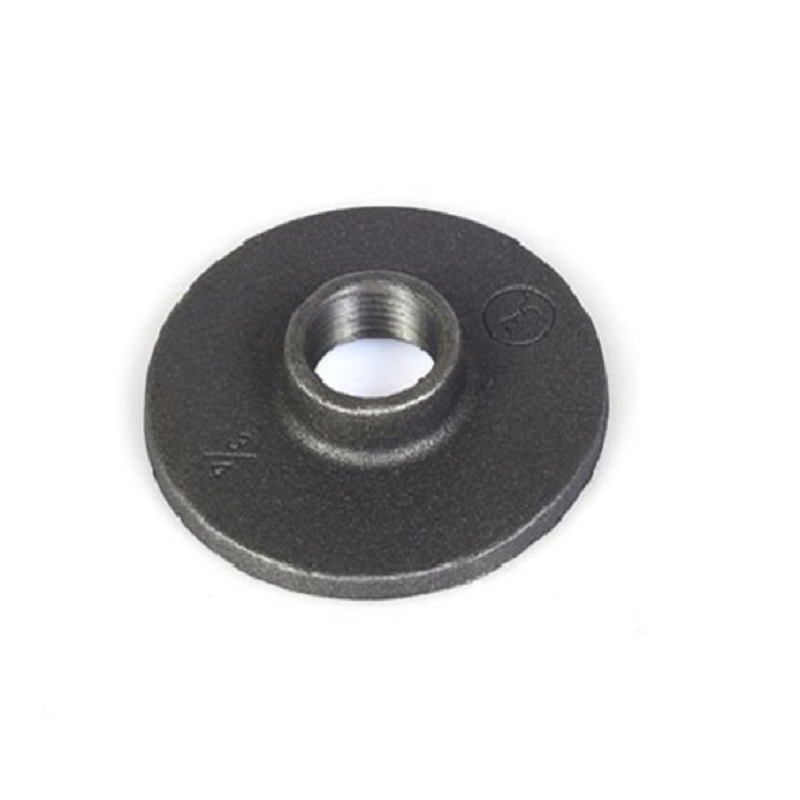

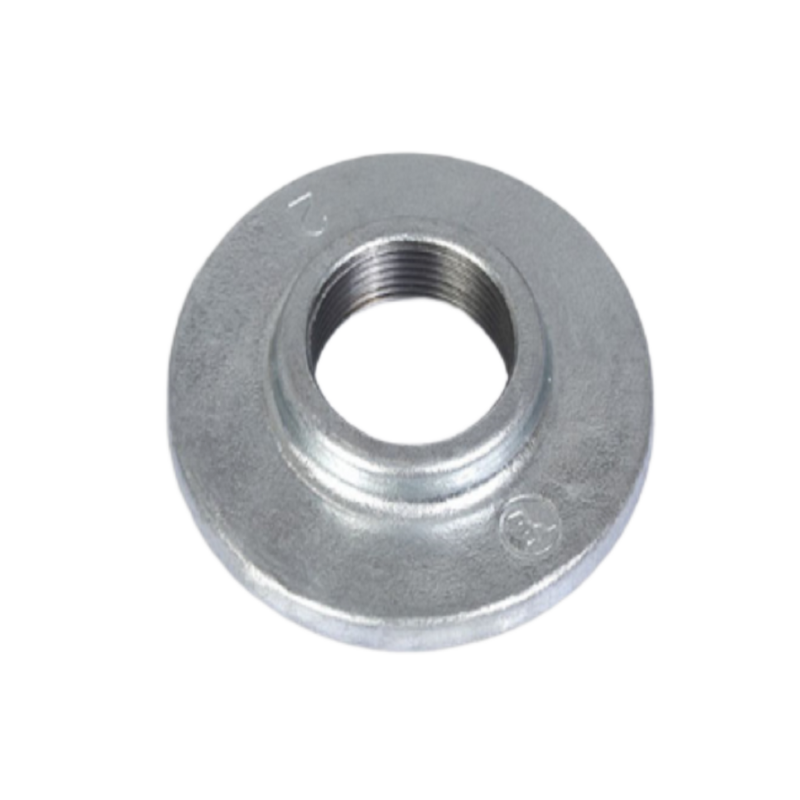

Malleable Iron Flange can hold different pipe parts together and direct the gas and liquid movement.

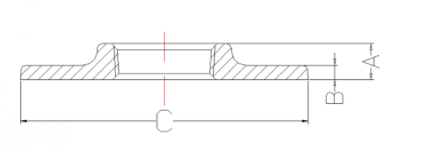

| SIZE | A (MM) | B (MM) | PCS/CTN. | |
| 1/2” | DN15 | 13.5 | 4.5 | 120 |
| 3/4” | DN20 | 16 | 5 | 100 |
| 1” | DN25 | 18 | 5.5 | 60 |
| 1 1/4” | DN32 | 15 | 6 | 40 |
| 1 1/2” | DN40 | 16 | 7 | 40 |
| 2” | DN50 | 18 | 8 | 30 |
| 2 1/2” | DN65 | 20 | 9 | 16 |
| 3” | DN80 | 22 | 10 | 12 |
| 4” | DN100 | 24 | 11 | 10 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
